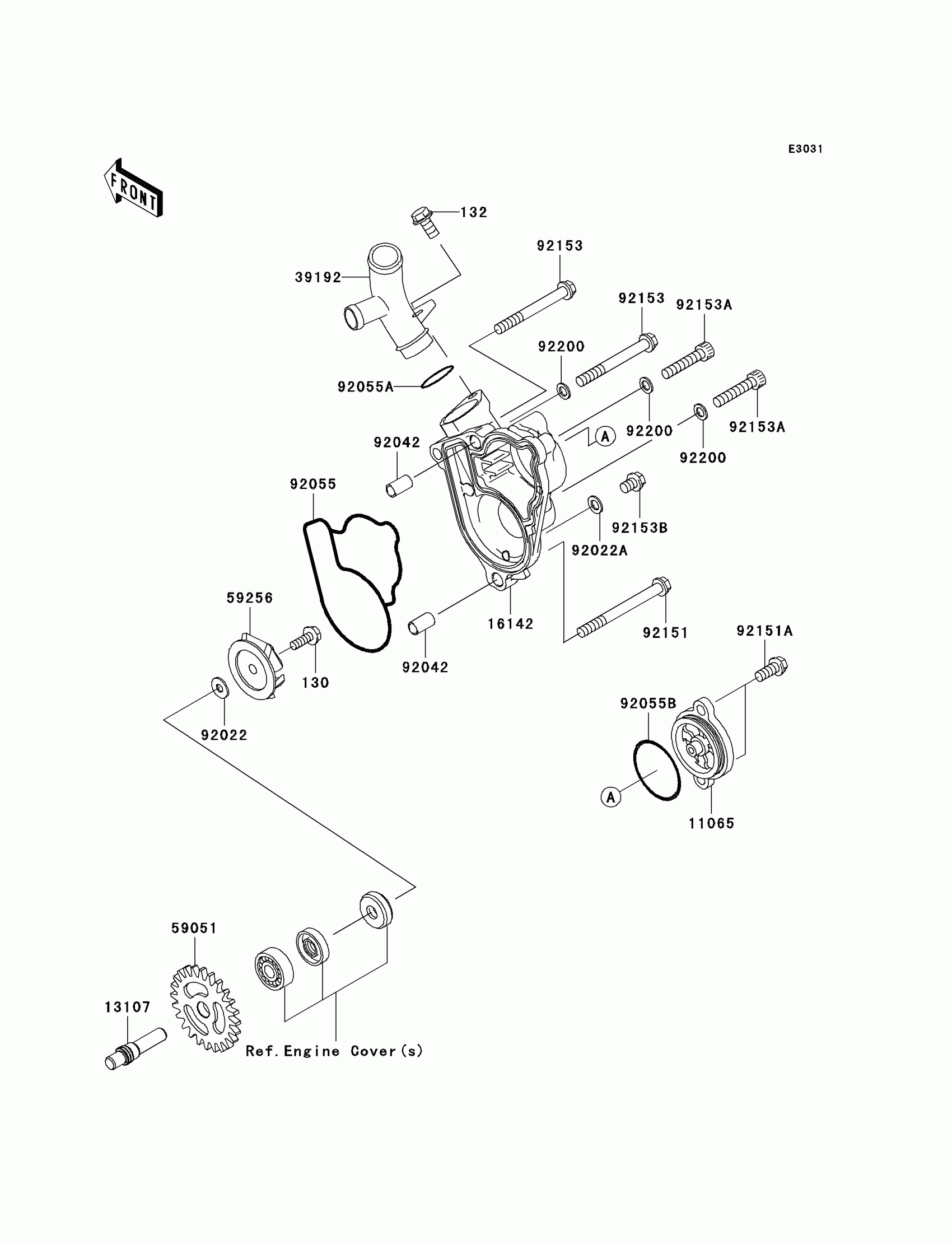

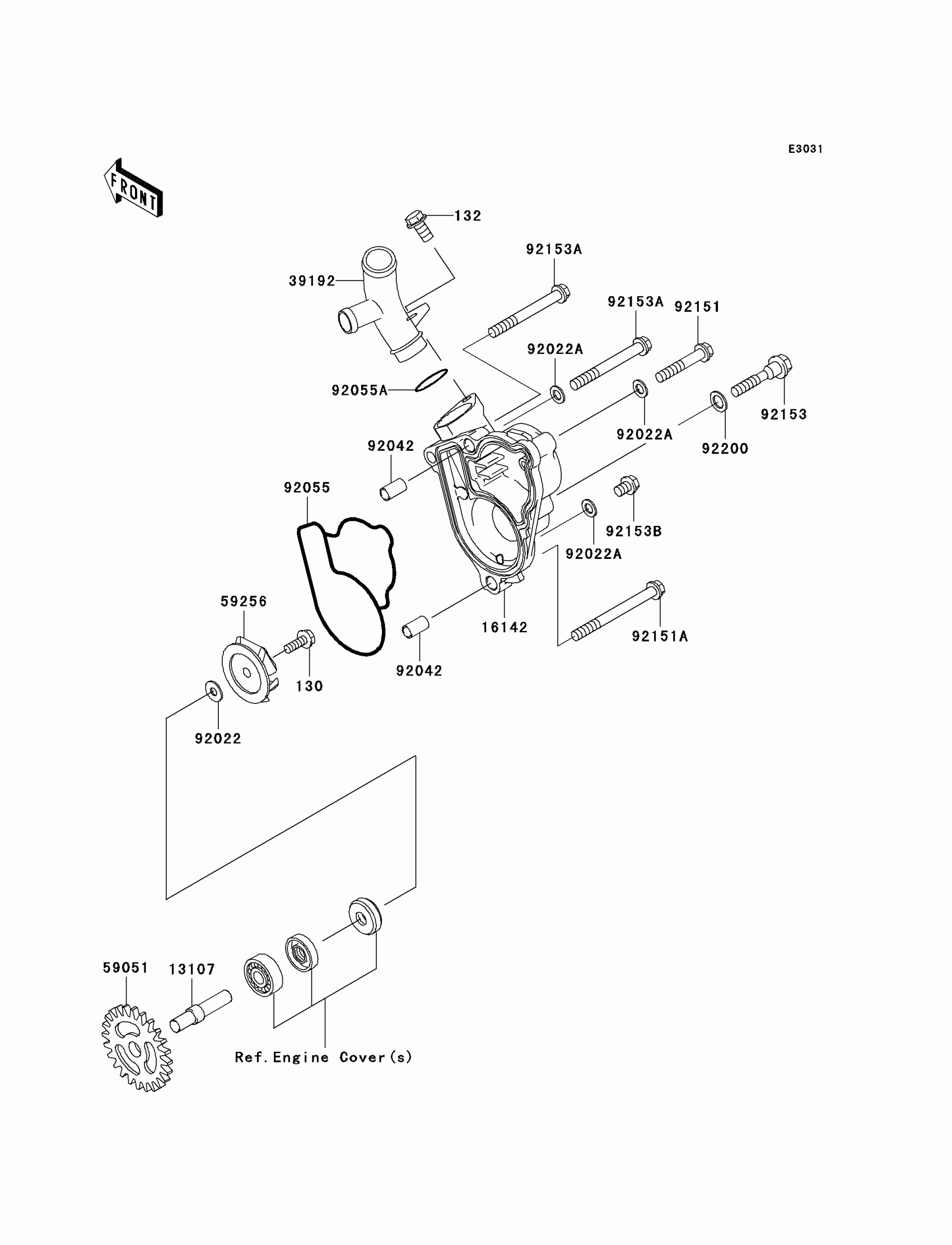

Find the part on the Water Pump diagram for your 2004 Kawasaki KX250F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Kawasaki KX250F Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,5X14

130Z0514

1
Out of stock

132

BOLT-FLANGED-SMALL,6X12

132L0612

1
Out of stock

13107

SHAFT,WATER PUMP

13107-0032

1
Out of stock

16142

COVER-PUMP,WATER

16142-0019

1

$148.26

In stock

39192

PIPE-WATER

39192-0037

1
Out of stock

59051

1

$50.56

In stock

59256

IMPELLER

59256-1065

1

$33.05

In stock

92022

WASHER,5.2X13X1

92022-1380

1

$3.43

In stock

92022A

WASHER,6.2X11X1

92022-304

1
Out of stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1

$4.51

In stock

92055

RING-O,WATER PUMP

92055-0010

1
Out of stock

92055A

RING-O,18.8X2.4

92055-1308

1

$4.37

In stock

92151

BOLT,6X35

92151-1135

1

$3.33

In stock

92151A

BOLT,6X65

92151-1199

1

$4.32

In stock

92153

BOLT,6X35

92153-0529

1
Out of stock

92153A

BOLT,6X55

92153-0696

1
Out of stock

92153B

BOLT,6X8

92153-0860

1
Out of stock

92200

WASHER,8.2X13X1

92200-0060

1
Out of stock
