1986 Kawasaki KX250 Rear Master Cylinder Diagram

← All diagrams

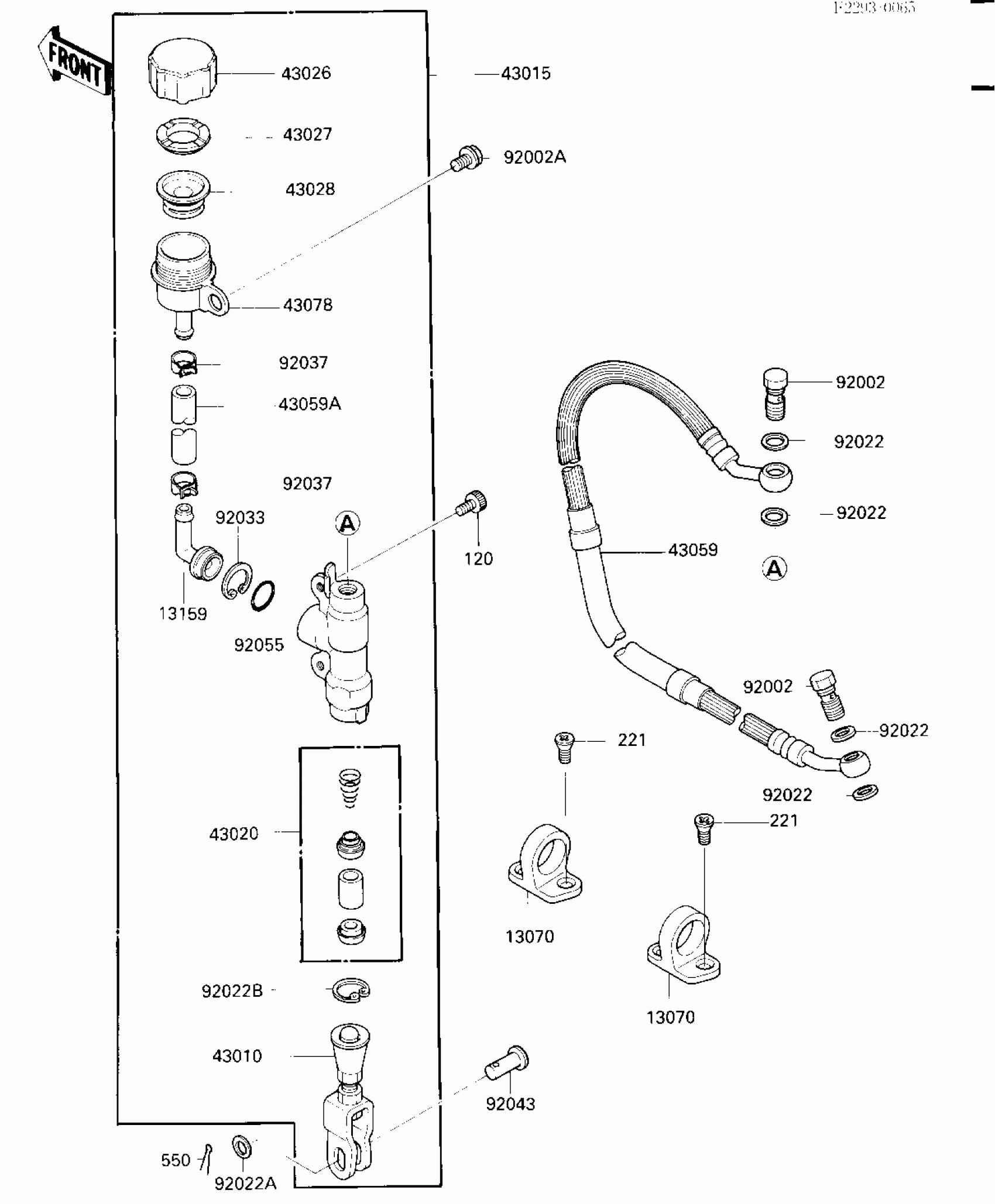

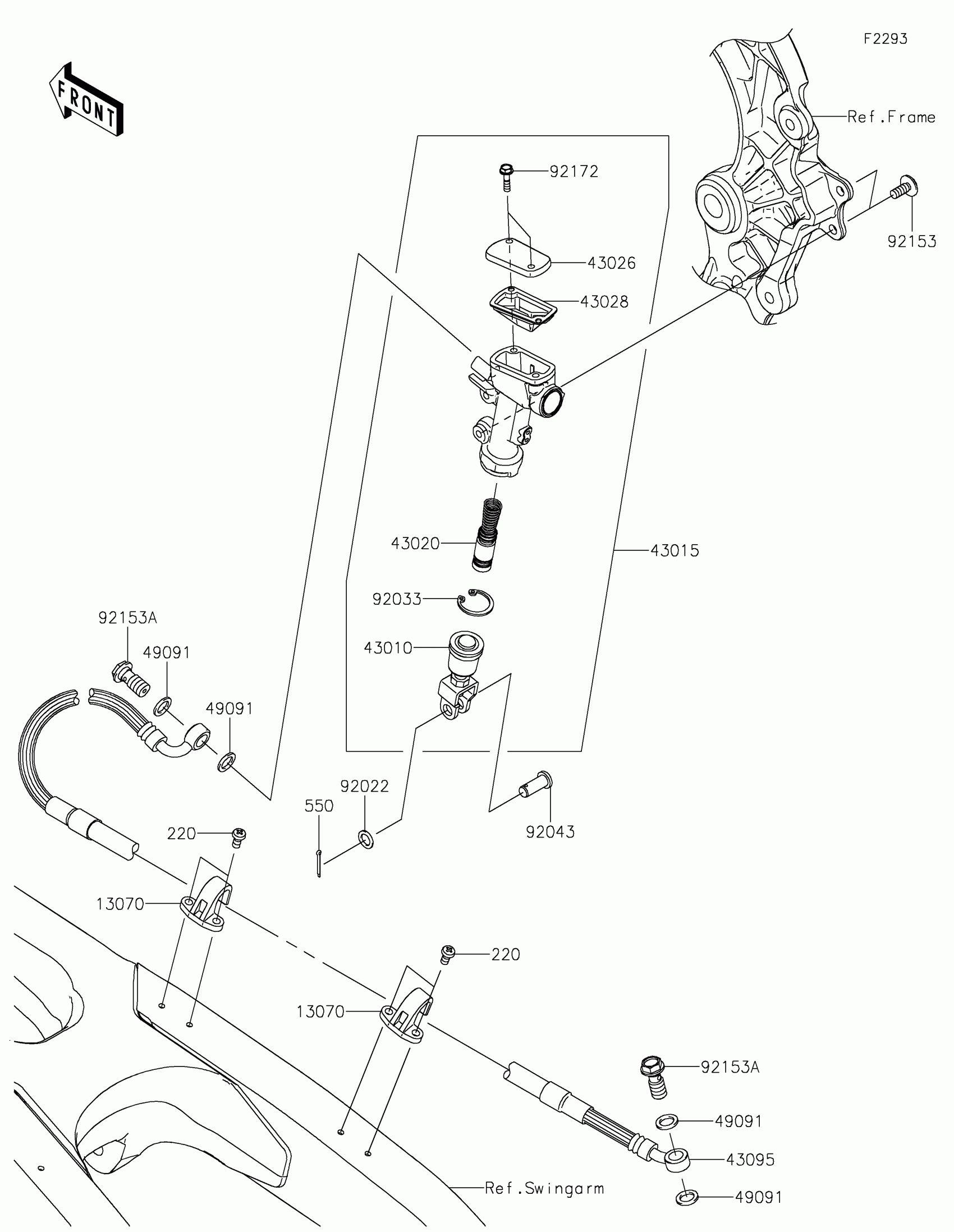

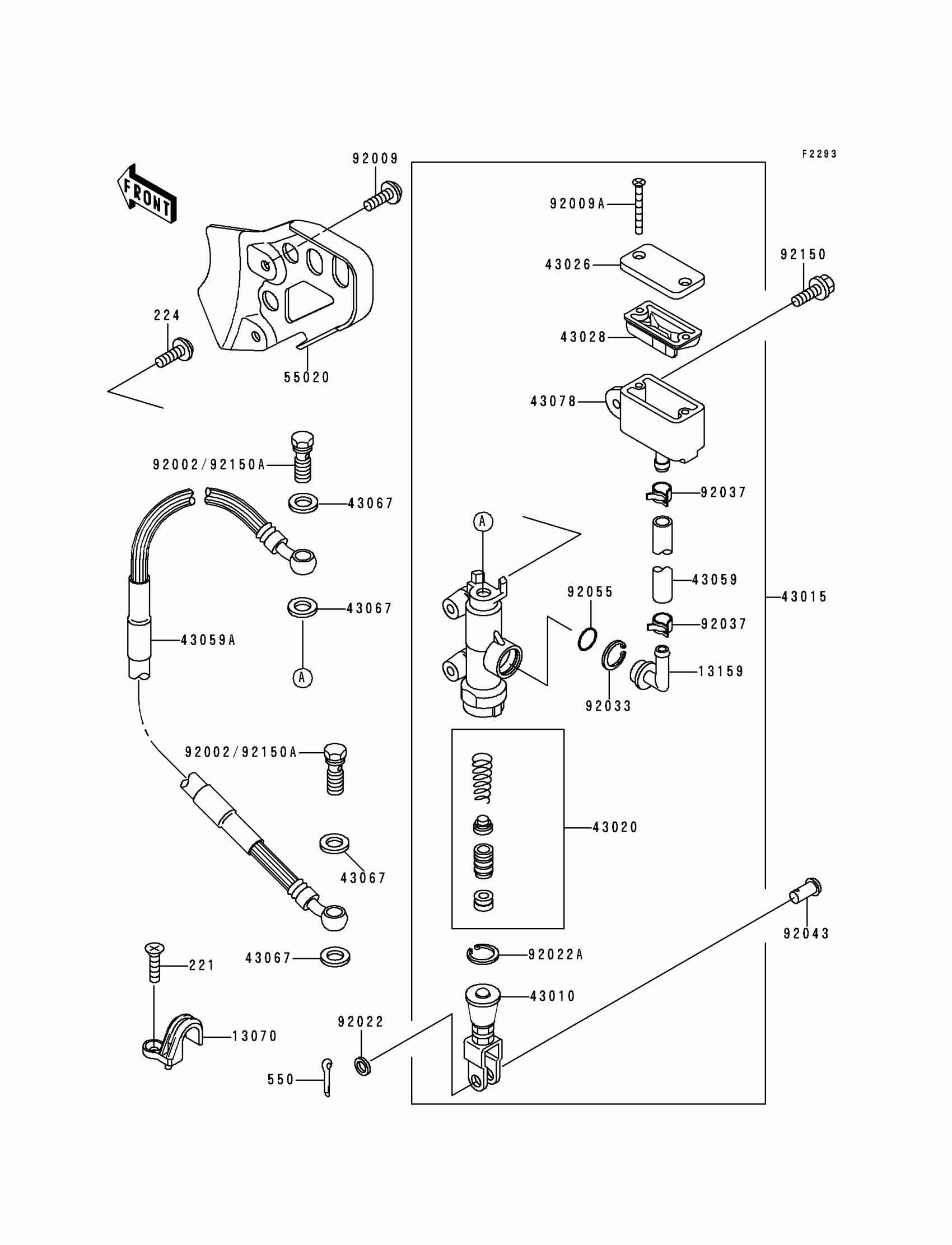

Find the part on the Rear Master Cylinder diagram for your 1986 Kawasaki KX250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Kawasaki KX250 Rear Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13070

GUIDE,HOSE

13070-1144

1
Out of stock

13159

CONNECTOR

13159-1056

1
Out of stock

43010

ROD-ASSY-BRAKE

43010-1058

1
Out of stock

43015

CYLINDER-ASSY-MASTER

43015-1303

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-1094

1
Out of stock

43026

CAP-BRAKE

43026-1058

1
Out of stock

43027

PLATE-DIAPHRAGM

43027-1052

1
Out of stock

43028

DIAPHRAGM

43028-1060

1
Out of stock

43059

HOSE-BRAKE,RR

43059-1364

1
Out of stock

43059A

HOSE-BRAKE

43059-1324

1
Out of stock

43078

RESERVOIR

43078-1068

1
Out of stock

92002

BOLT,OIL,L=23

92002-1888

1
Out of stock

92002A

BOLT,6X14

92150-1340

1
Out of stock

92022

WASHER,10.5X15X1.5

43067-001

1
Out of stock

92022A

WASHER,8.5X13X1

92022-1028

1
Out of stock

92022B

WASHER,CIRCRIP

92022-1601

1
Out of stock

92033

RING-SNAP,20.5MM

92033-1186

1
Out of stock

92037

CLAMP

92037-1710

1
Out of stock

92043

PIN

92043-1039

1
Out of stock

92055

RING-O,MASTER CYLINDER

92055-1251

1
Out of stock

120

BOLT-SOCKET,6X14

120P0614

1
Out of stock

221

SCREW-CSK-CROS,6X10

221B0610

1
Out of stock

550

PIN-COTTER,2.0X20

550D2020

1
Out of stock
