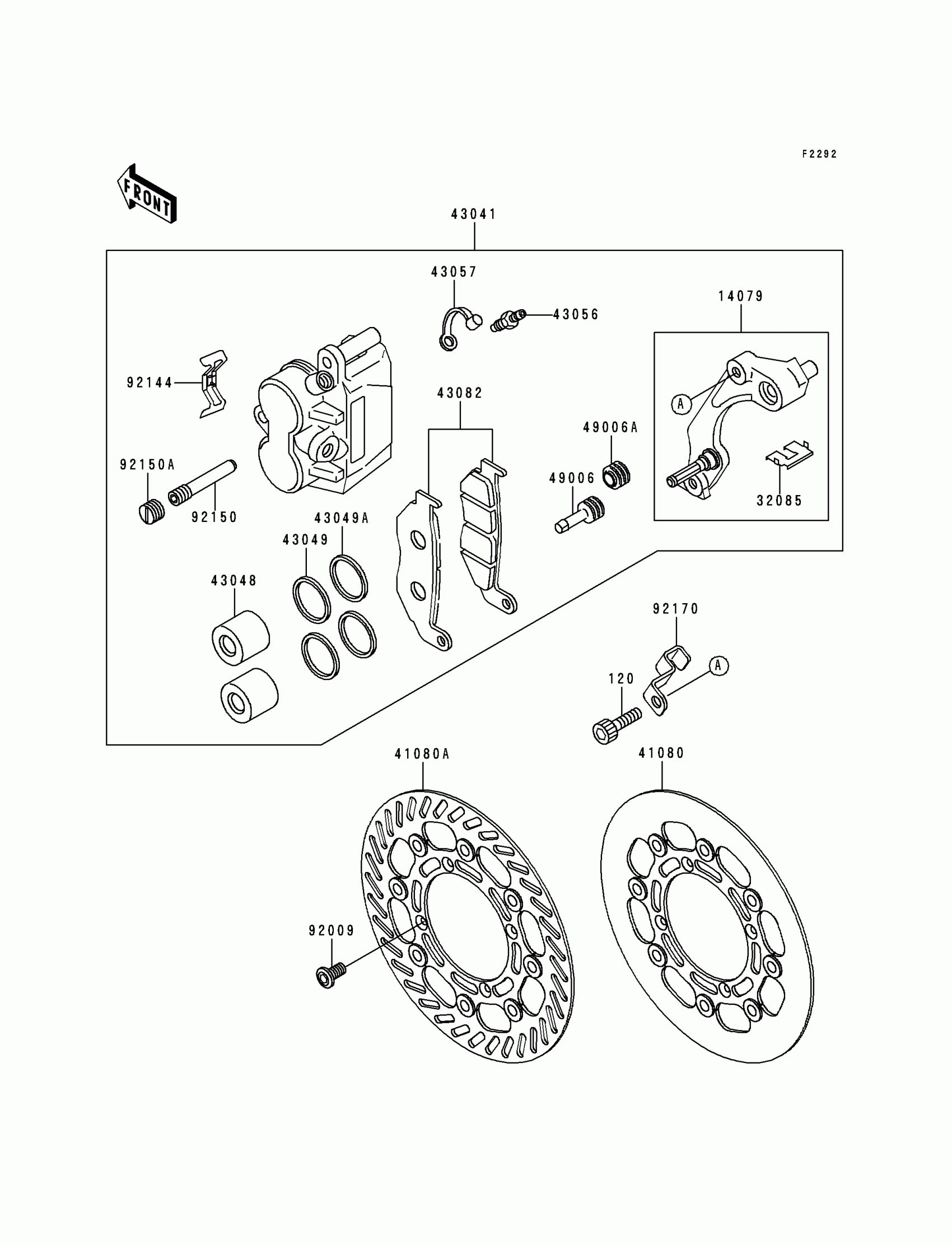

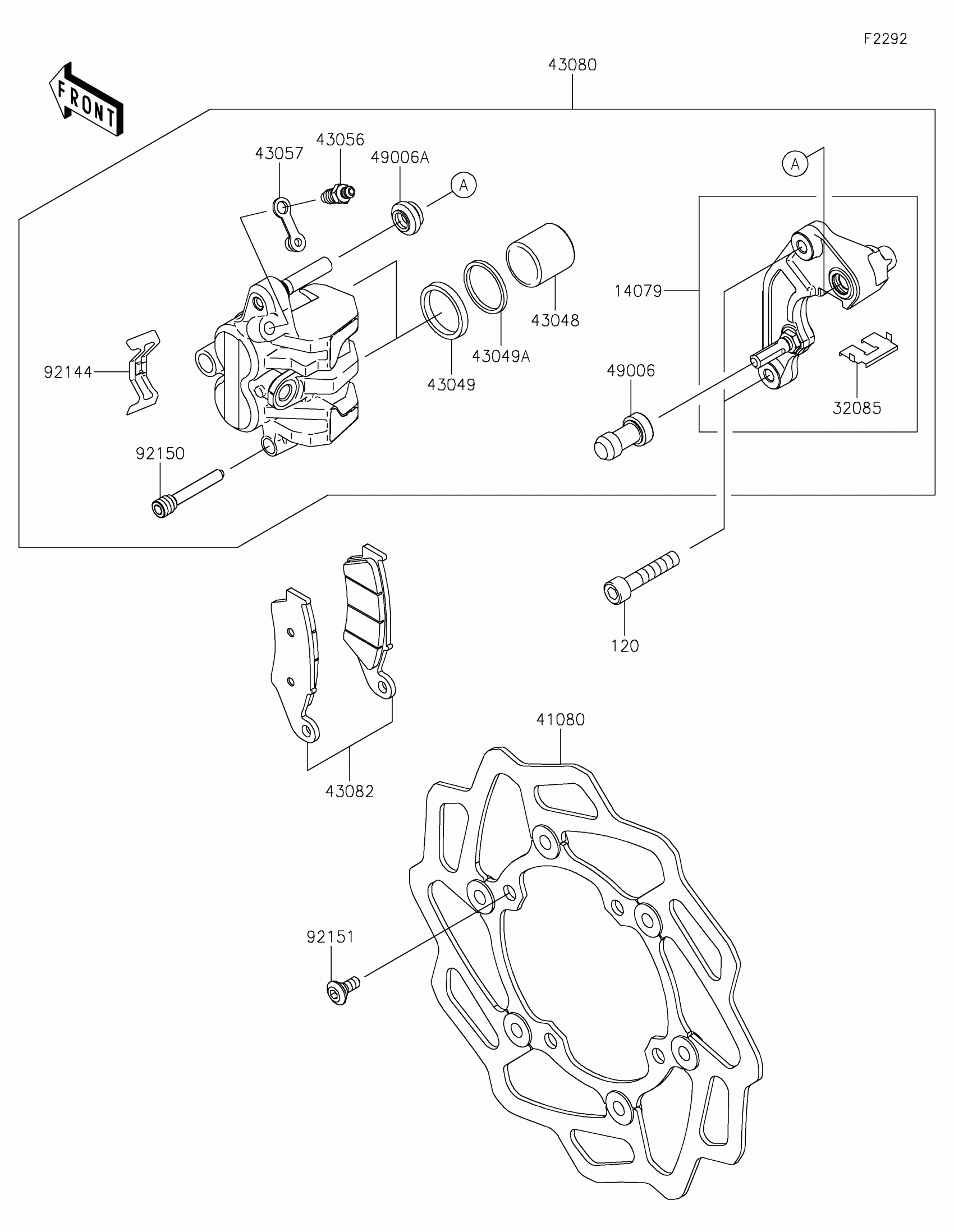

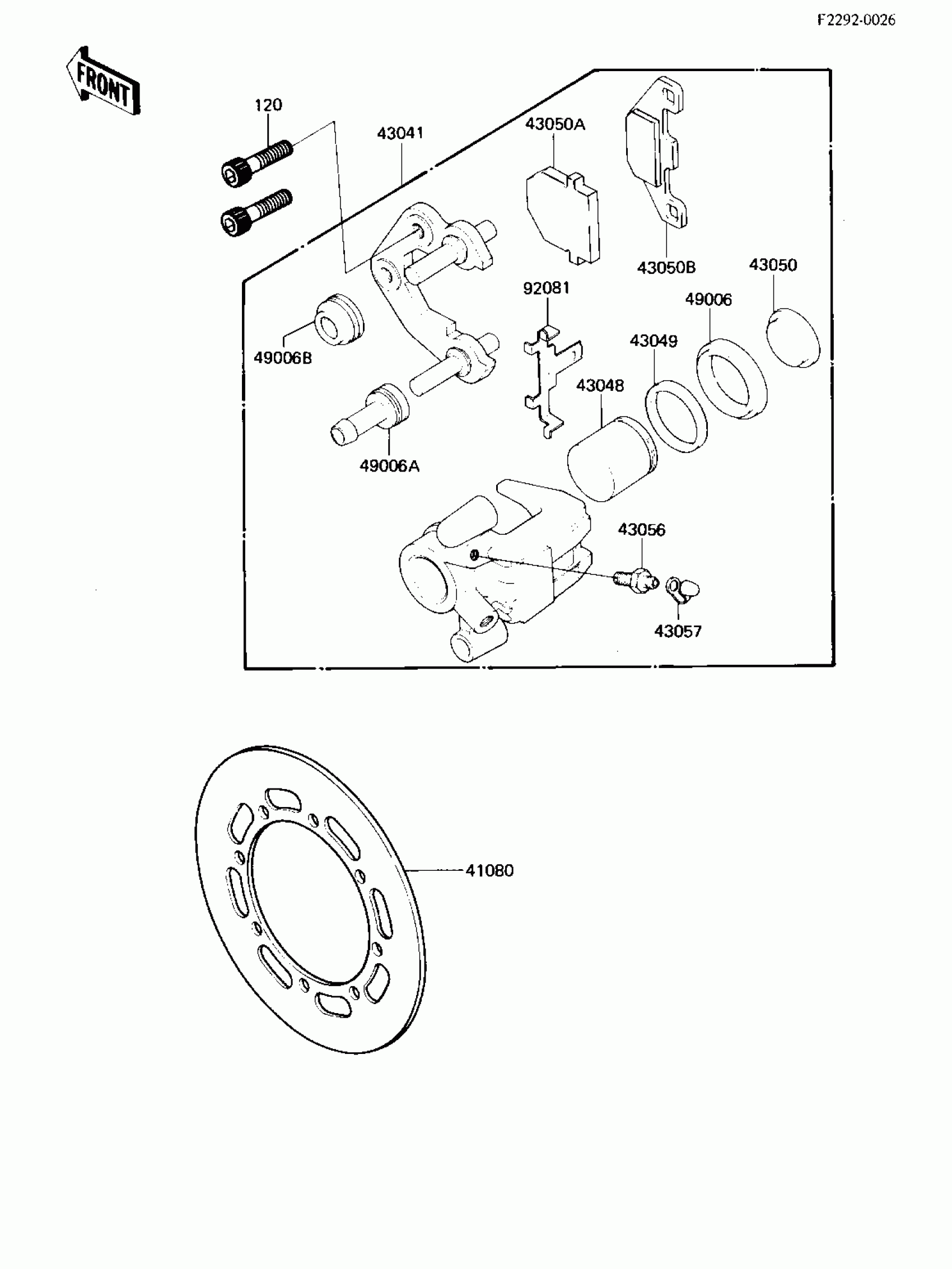

Kawasaki KX250 FRONT BRAKE Diagram

Description

Price

41080

DISC,FRONT BREAK

41080-1044

Unavailable

43041

CALIPER-ASSY,REAR BRA

43041-1050

$230.23

43048

PISTON-CALIPER

43048-1008

$61.29

43049

PACKING

43049-1016

$7.91

43050

PAD-BRAKE

43050-1040

$13.54

43050A

PAD-BRAKE

43050-1043

$76.58

43050B

PAD-BRAKE

43050-1044

$76.58

43056

BREATHER

43056-003

$19.94

43057

CAP-BREATHER

43057-003

$1.74

49006

BOOT,PISTON SEAL

49006-1053

$20.54

49006A

BOOT,CALIPER

49006-1054

$8.83

49006B

BOOT,CALIPER

49006-1055

$5.55

92081

SPRING,PAD

92081-1341

$11.51

120

BOLT-SOCKET,8X20

120P0820

Unavailable
