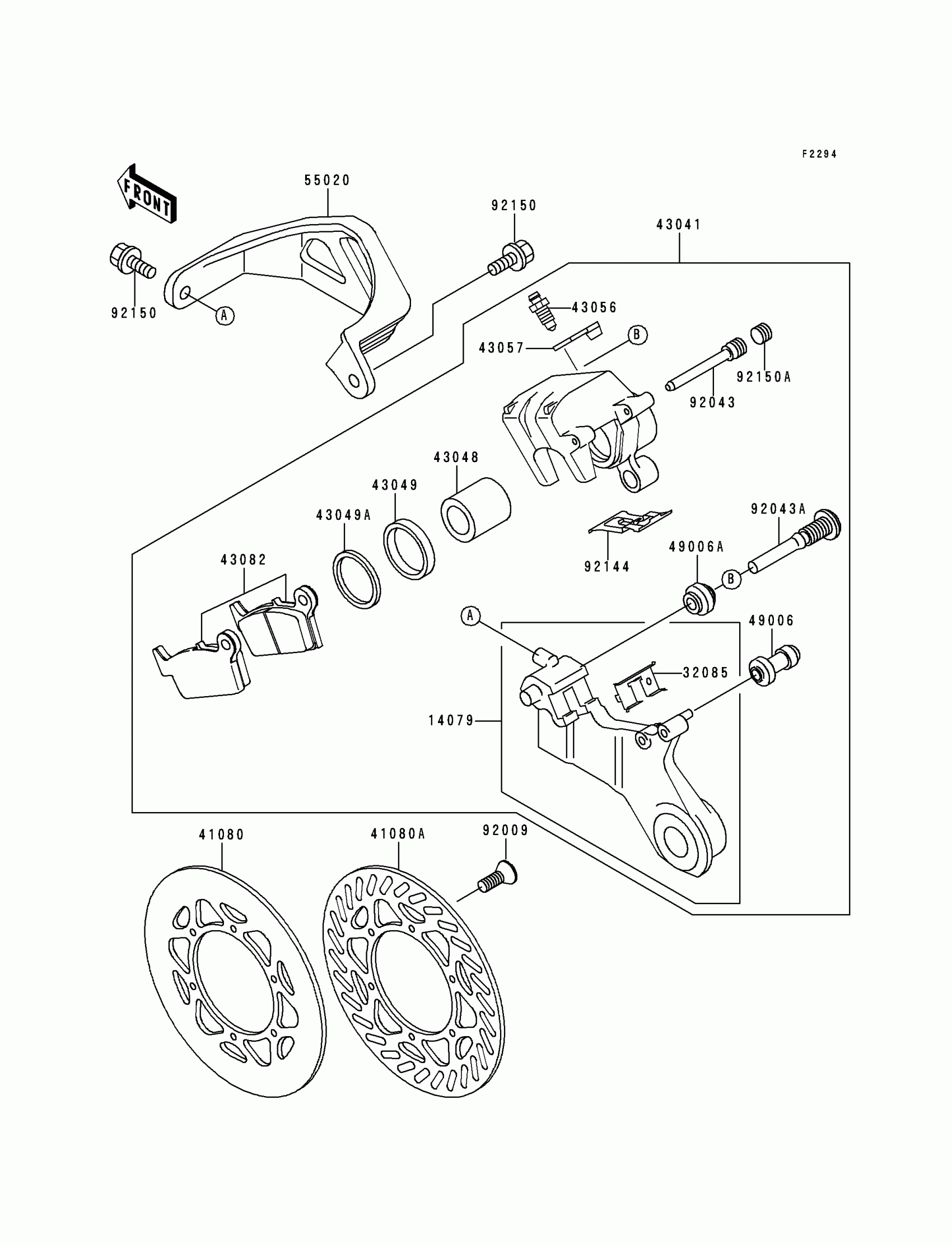

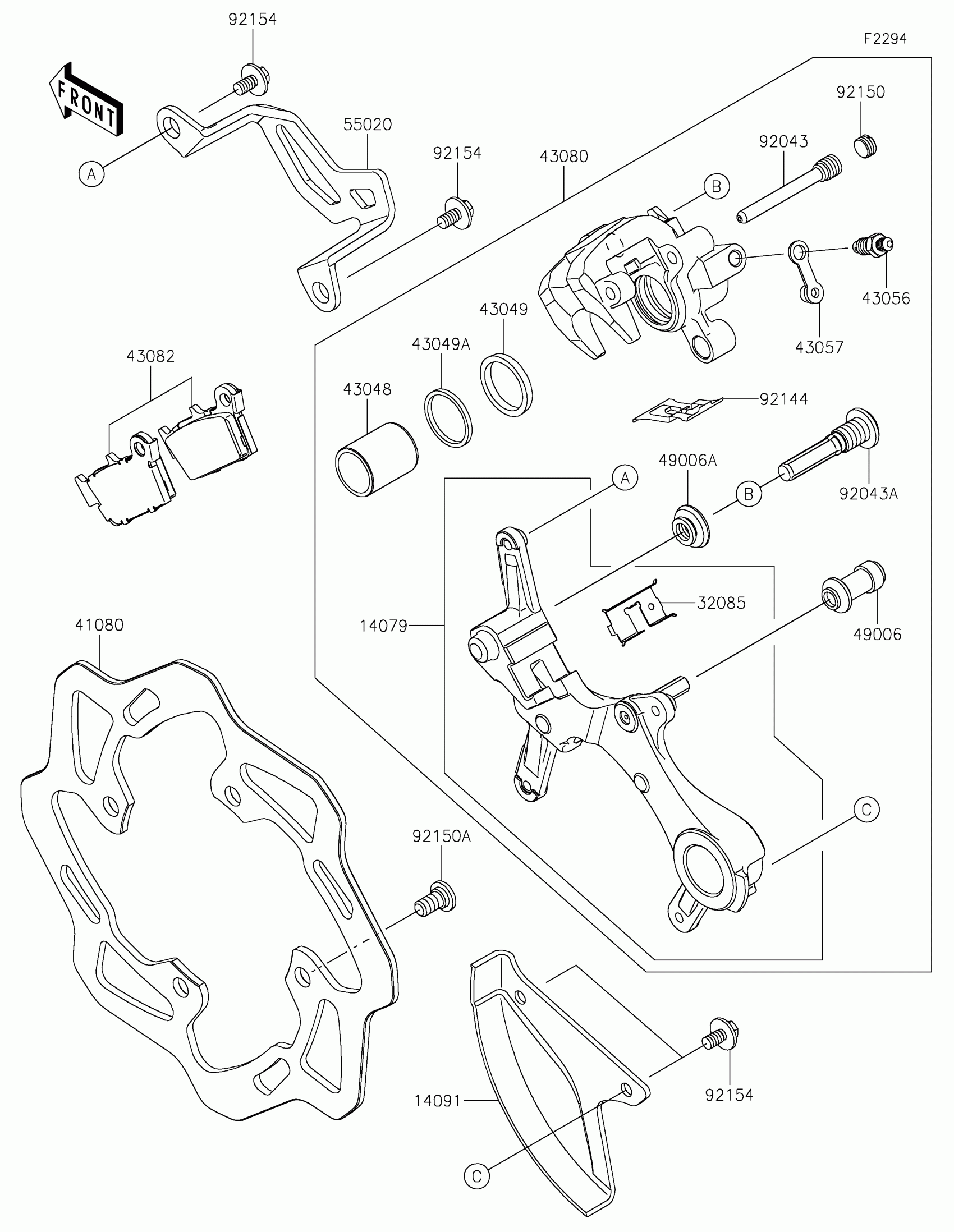

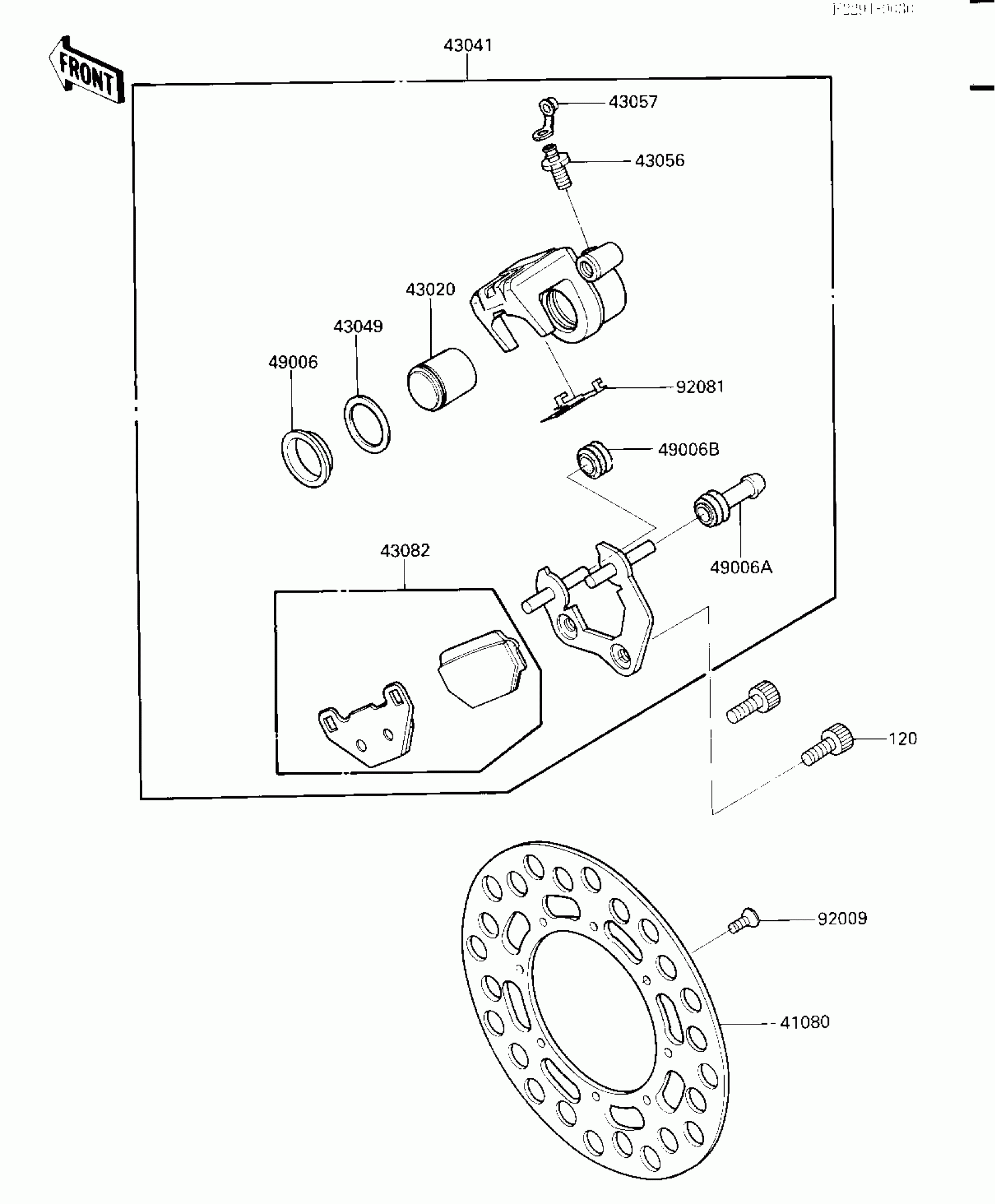

Kawasaki KX250 REAR BRAKE Diagram

Description

Price

41080

DISC,RR

41080-1161

$182.78

43020

PISTON-COMP-BRAKE

43020-1084

$61.29

43041

CALIPER-ASSY

43041-1229

$473.52

43049

PACKING

43049-1016

$7.91

43056

BREATHER

43056-003

$19.94

43057

CAP-BREATHER

43057-003

$1.74

43082

PAD-ASSY-BRAKE,FR

43082-1027

$62.66

49006

BOOT,PISTON SEAL

49006-1053

$20.54

49006A

BOOT,CALIPER

49006-1054

$8.83

49006B

BOOT,CALIPER

49006-1055

$5.55

92009

SCREW,6X10

92009-1375

$3.53

92081

SPRING,PAD

92081-1341

$11.51

120

BOLT-SOCKET,8X20

120P0820

Unavailable
