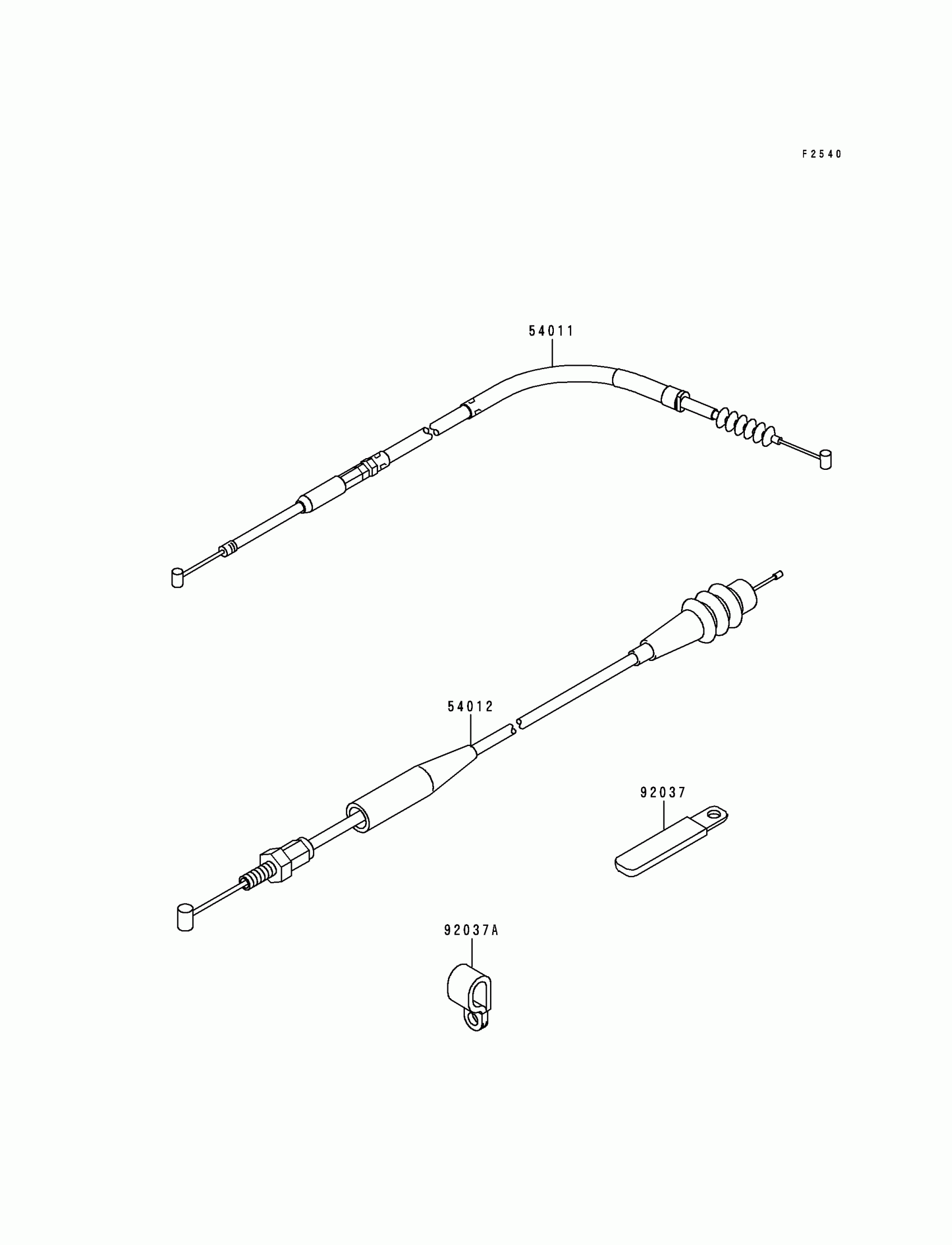

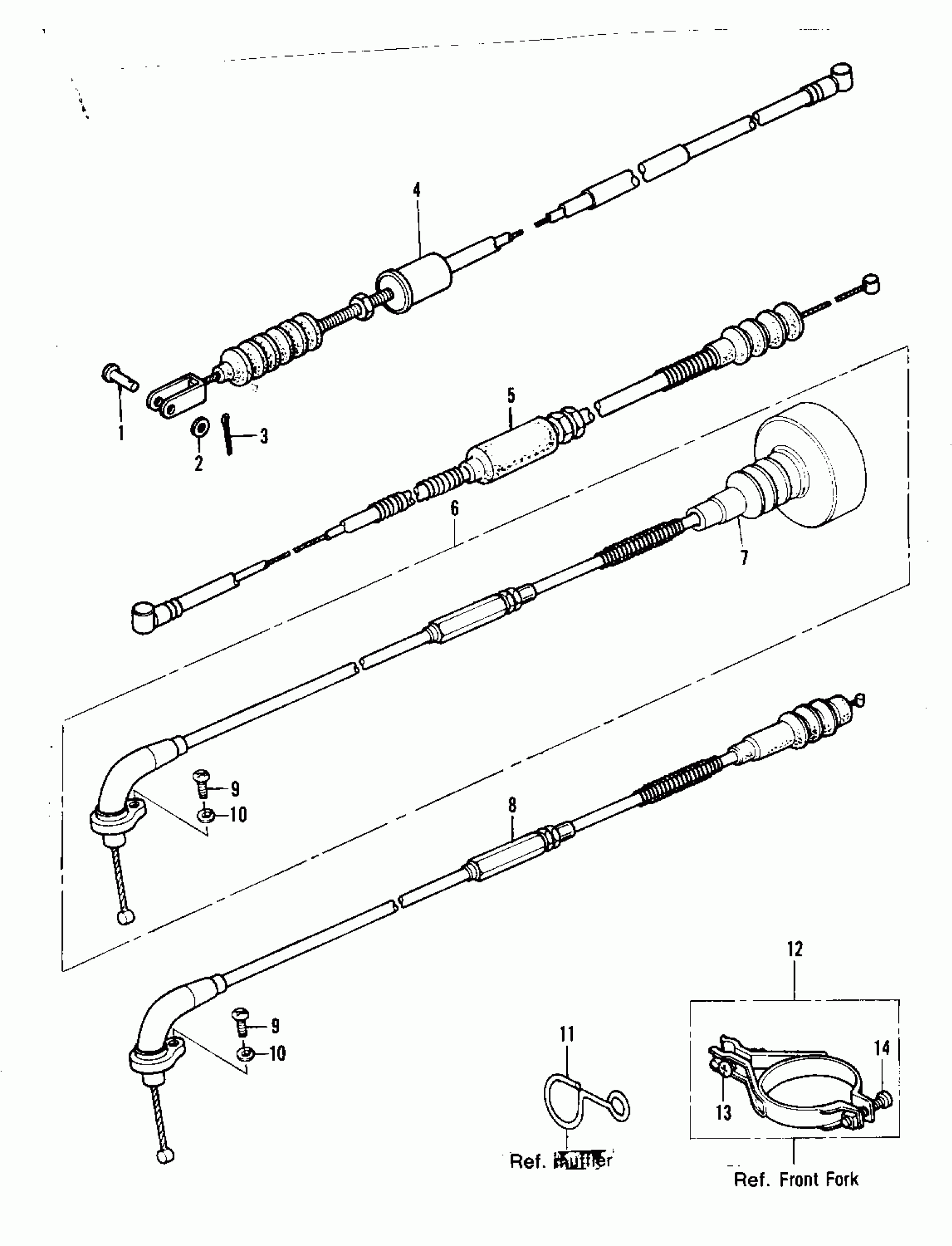

Kawasaki KX250 CABLES Diagram

#

Description

Price

1

PIN,6X17

92043-064

$3.57

2

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

3

PIN COTTER 2.0X15

550D2015

Unavailable

4

CABLE,BRAKE

54005-4002

Unavailable

5

CABLE,CLUTCH

54011-1033

Unavailable

6

CABLE,THROTTLE

54012-1057

Unavailable

7

BOOT,THROTTLE CABLE

49006-1016

Unavailable

8

CABLE-THROTTLE

54012-1095

Unavailable

9

SCREW PAN HEAD 5X10

220B0510

Unavailable

10

WASHER SPRING 5MM

461F0500

Unavailable

11

CLAMP,CLUTCH CABLE

92037-1202

Unavailable

12

CLAMP,CABLE

92037-1072

Unavailable

13

SCREW-PAN-CRSOSS,4X1

220B0412

$0.25

14

SCREW-PAN-CROS,5X25

220B0525

$3.24
