1988 Kawasaki KX125 Swingarm Diagram

← All diagrams

Find the part on the Swingarm diagram for your 1988 Kawasaki KX125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

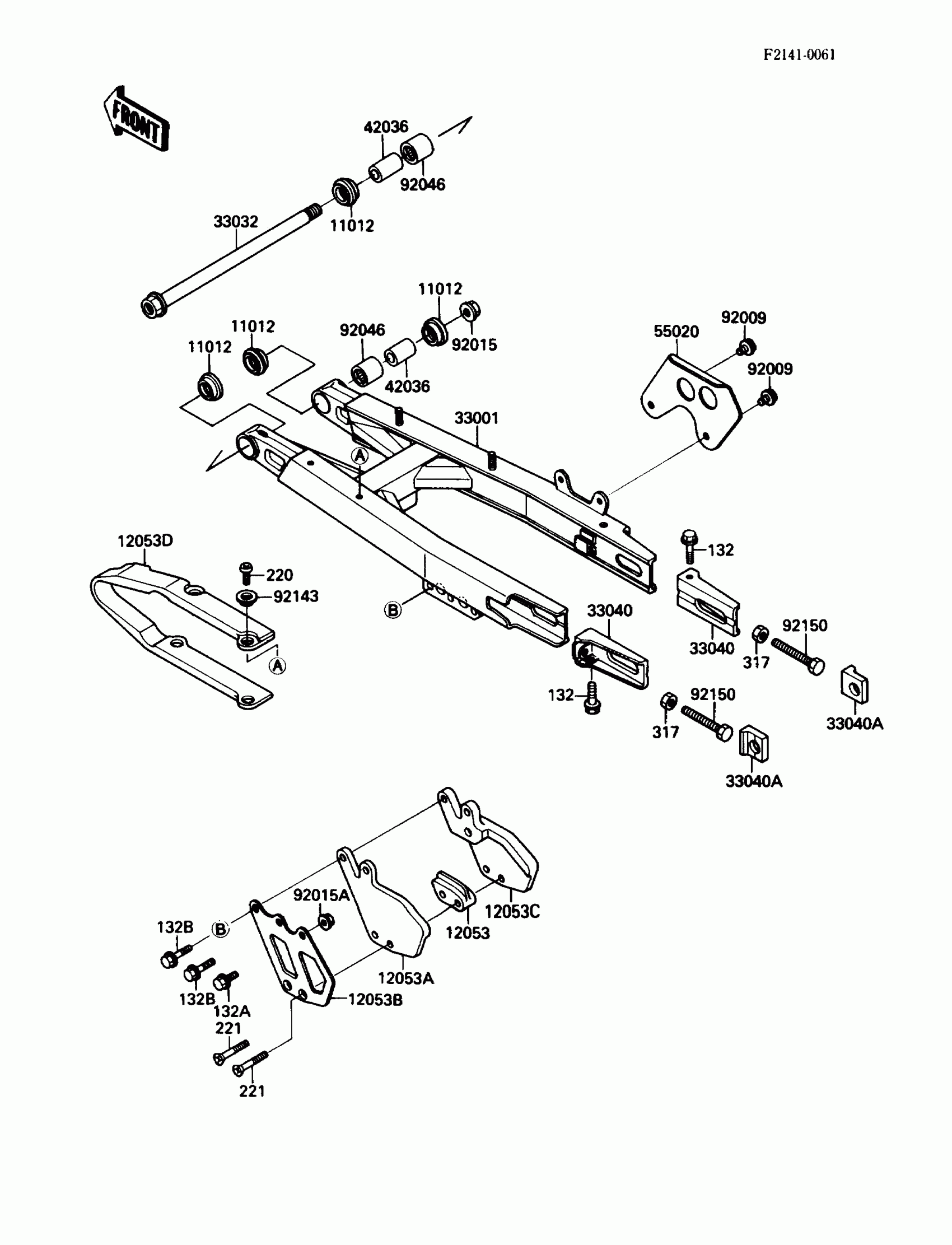

1988 Kawasaki KX125 Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,SWING ARM

11012-1259

1

$20.21

In stock

12053

GUIDE-CHAIN,RR,INSIDE

12053-1105

1
Out of stock

12053A

1

$30.26

In stock

12053B

1

$36.58

In stock

12053C

1

$38.35

In stock

12053D

GUIDE-CHAIN,FR

12053-1240

1

$64.64

In stock

33001

1

$519.87

In stock

33032

SHAFT-SWING ARM

33032-1137

1

$64.64

In stock

33040

ADJUSTER-CHAIN

33040-1084

1
Out of stock

33040A

ADJUSTER-CHAIN

33040-1085

1
Out of stock

42036

SLEEVE,SWING ARM

42036-1064

1

$19.97

In stock

55020

GUARD,CALIPER

55020-1247

1
Out of stock

92009

SCREW,6X14,WHITE

92009-1287

1
Out of stock

92015

NUT,14MM

92015-1032

1
Out of stock

92015A

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92046

BEARING-NEEDLE

92046-1128

1
Out of stock

92143

COLLAR

92143-1156

1

$4.93

In stock

92150

BOLT,8X55

92150-1068

1

$5.11

In stock

132

BOLT-FLANGED-SMALL

132G0612

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X16

132G0616

1
Out of stock

132B

BOLT-FLANGED-SMALL,6X35

132G0635

1
Out of stock

220

1

$0.63

In stock

221

1

$3.28

In stock

317

NUT-HEX-SMALL,8MM

317G0800

1
Out of stock
