1983 Kawasaki KX125 Wheels/tires Diagram

← All diagrams

Find the part on the Wheels/tires diagram for your 1983 Kawasaki KX125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

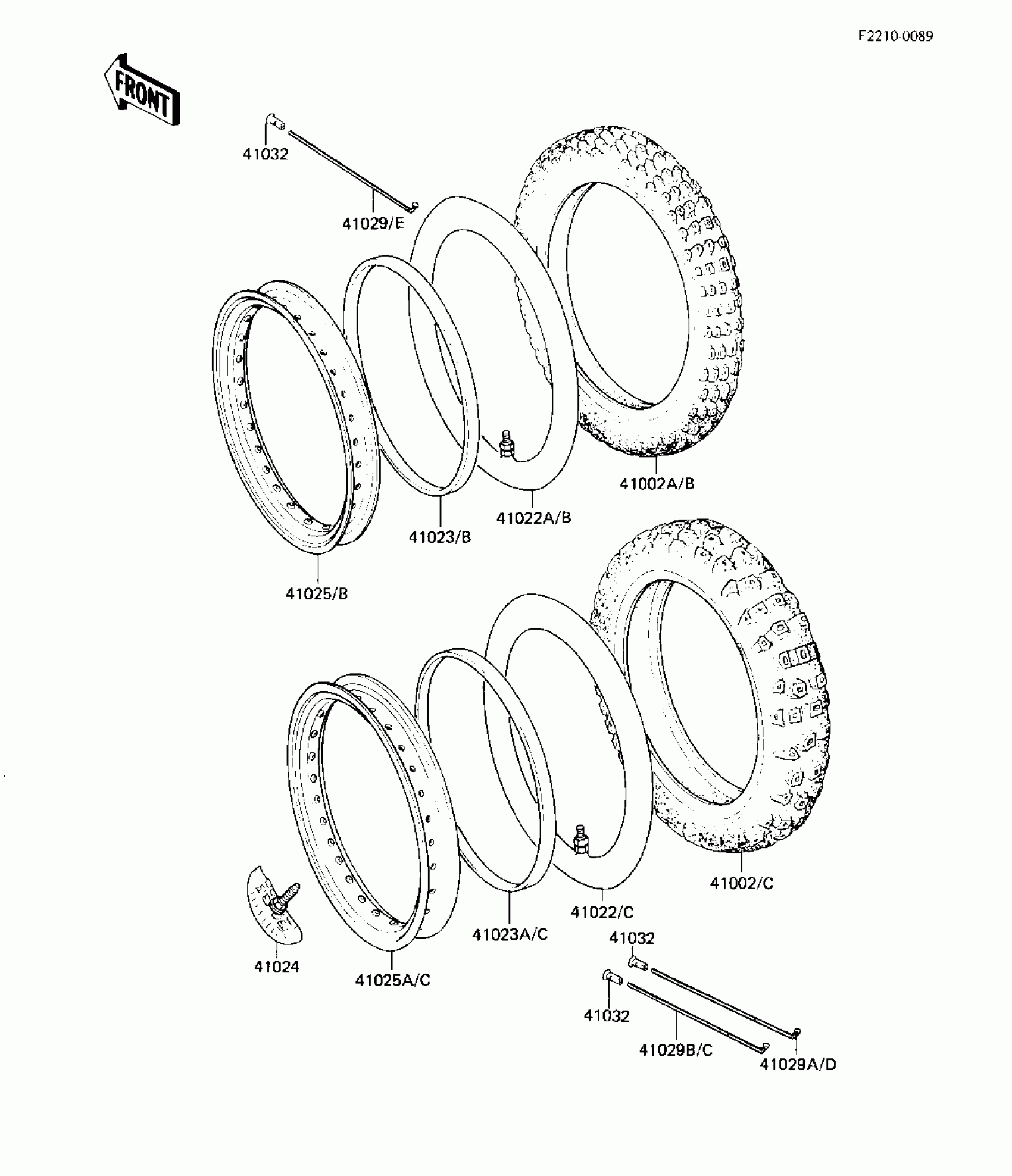

1983 Kawasaki KX125 Wheels/tires Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41002B

TIRE 300-21 K490 F

41002-1312

1

$125.72

In stock

41002C

TIRE 400-18 K490 R

41002-1313

1

$148.62

In stock

41022

1

$51.02

In stock

41022A

TUBE,2.75/3.70-21

41022-1021

1

$51.02

In stock

41023

1

$14.49

In stock

41023A

1

$10.98

In stock

41024

1

$48.17

In stock

41025B

RIM,FR,1.60X21EFJ

41025-1073

1
Out of stock

41025C

RIM,RR,1.85X18EFJ

41025-1074

1

$310.27

In stock

41029C

SPOKE-INNER,RR,RH,195

41029-1080

1
Out of stock

41029D

1

$9.90

In stock

41029E

SPOKE-INNER,FR,240MMX

41029-1084

1
Out of stock

41032

1

$4.02

In stock
