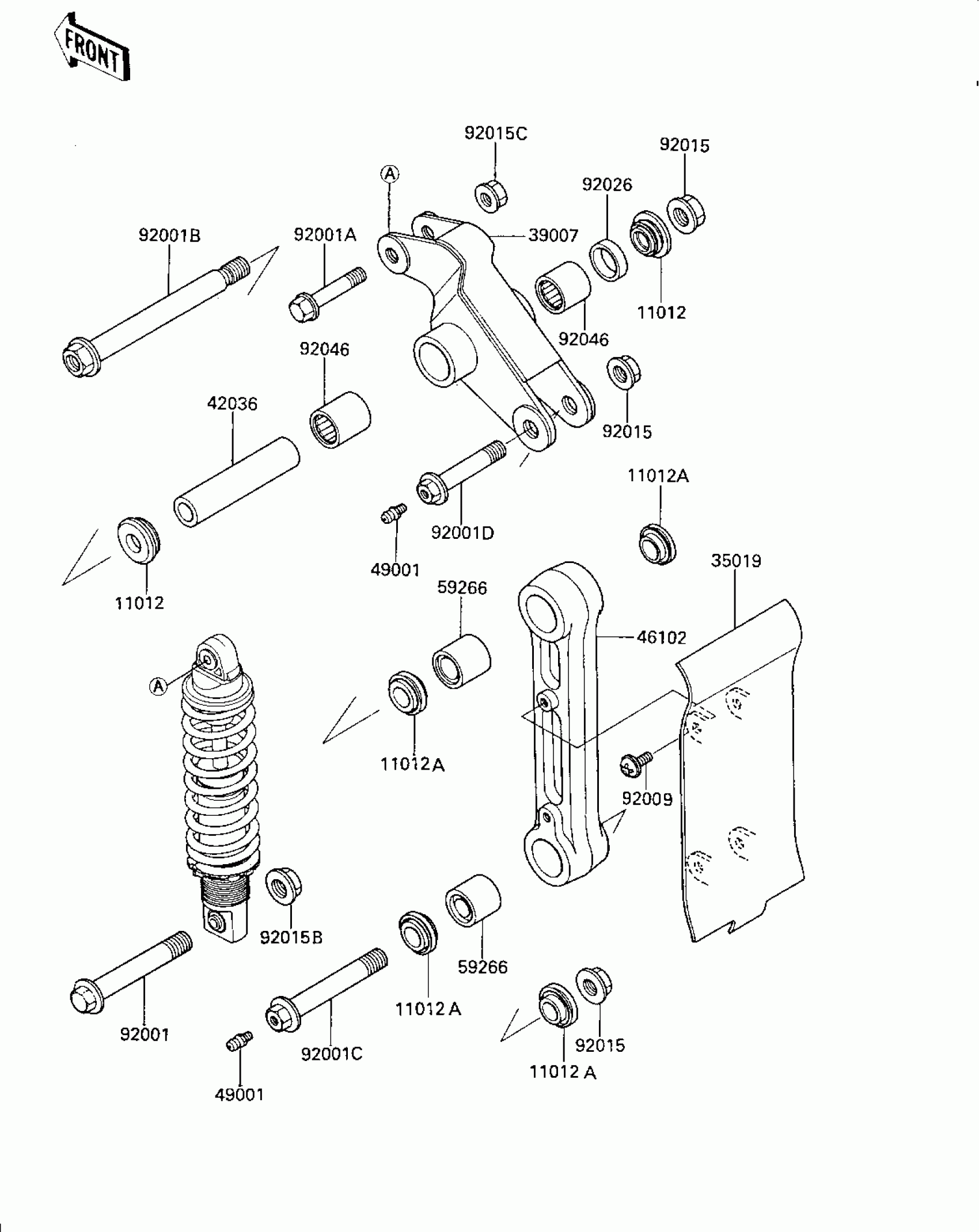

Find the part on the Rear Suspension diagram for your 1984 Kawasaki KX125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1984 Kawasaki KX125 Rear Suspension Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP

11012-1207

1
Out of stock

11012A

CAP,ROD

11012-1258

1
Out of stock

35019

FLAP,ROD

35019-1112

1
Out of stock

39007

ARM-SUSP,UNI TRAK

39007-1054

1

$164.69

In stock

42036

SLEEVE,SUSPENSION ARM

42036-1119

1
Out of stock

46102

ROD,UNI TRAK

46102-1111

1

$250.83

In stock

49001

NIPPLE-GREASE

49001-1051

1

$2.44

In stock

59266

JOINT-BALL,SB142820E0

59266-1052

1
Out of stock

92001

BOLT,12X72

92001-1875

1
Out of stock

92001A

BOLT,10X50

92001-1913

1
Out of stock

92001B

BOLT,14X143

92001-1923

1

$34.80

In stock

92001C

BOLT,14X82

92001-1972

1
Out of stock

92001D

BOLT,14X60

92001-1973

1
Out of stock

92009

SCREW,6X10,WHITE

92009-1286

1
Out of stock

92015

NUT,14MM

92015-1407

1

$7.86

In stock

92015B

NUT,FLANGED,12MM

92015-1156

1
Out of stock

92015C

NUT,FLANGED,10MM

92015-1415

1

$3.72

In stock

92026

SPACER,SUSPENSION ARM

92026-1203

1
Out of stock

92046

BRG,NEEDLE,HMK2030

92046-1031

1
Out of stock
