1983 Kawasaki KX125 Front Hub Diagram

← All diagrams

Find the part on the Front Hub diagram for your 1983 Kawasaki KX125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

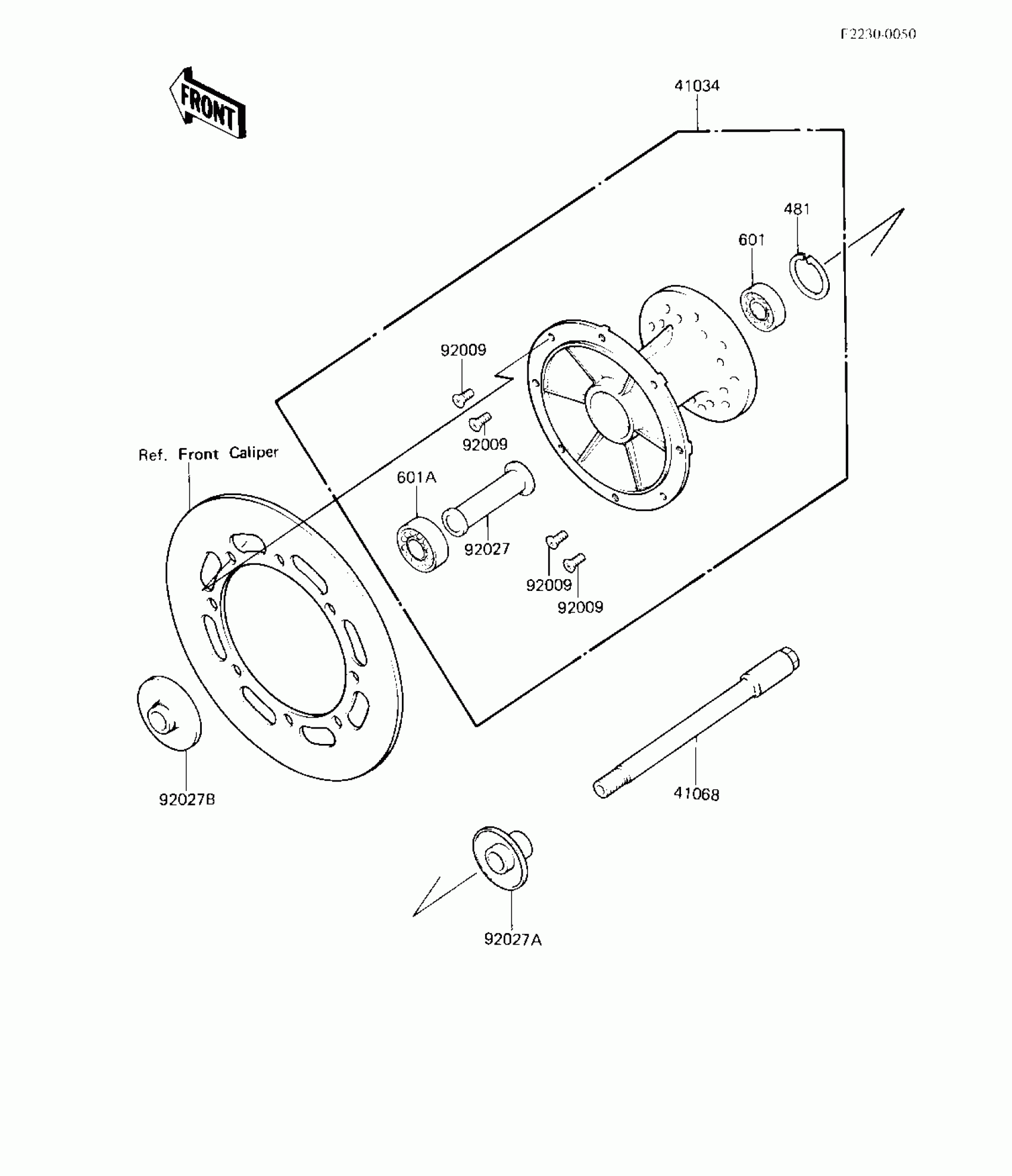

1983 Kawasaki KX125 Front Hub Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41034

DRUM-ASSY,FR BRK

41034-1052

1

$395.37

In stock

41068

AXLE,FRONT

41068-1069

1

$104.93

In stock

92009

SCREW,6X10

92009-1375

1
Out of stock

92027

COLLAR

92027-1374

1

$39.84

In stock

92027A

COLLAR

92027-1375

1
Out of stock

92027B

COLLAR

92027-1377

1
Out of stock

481

1

$1.64

In stock

601

1

$16.17

In stock

601A

1

$34.89

In stock
