1983 Kawasaki KX125 Radiator Diagram

← All diagrams

Find the part on the Radiator diagram for your 1983 Kawasaki KX125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

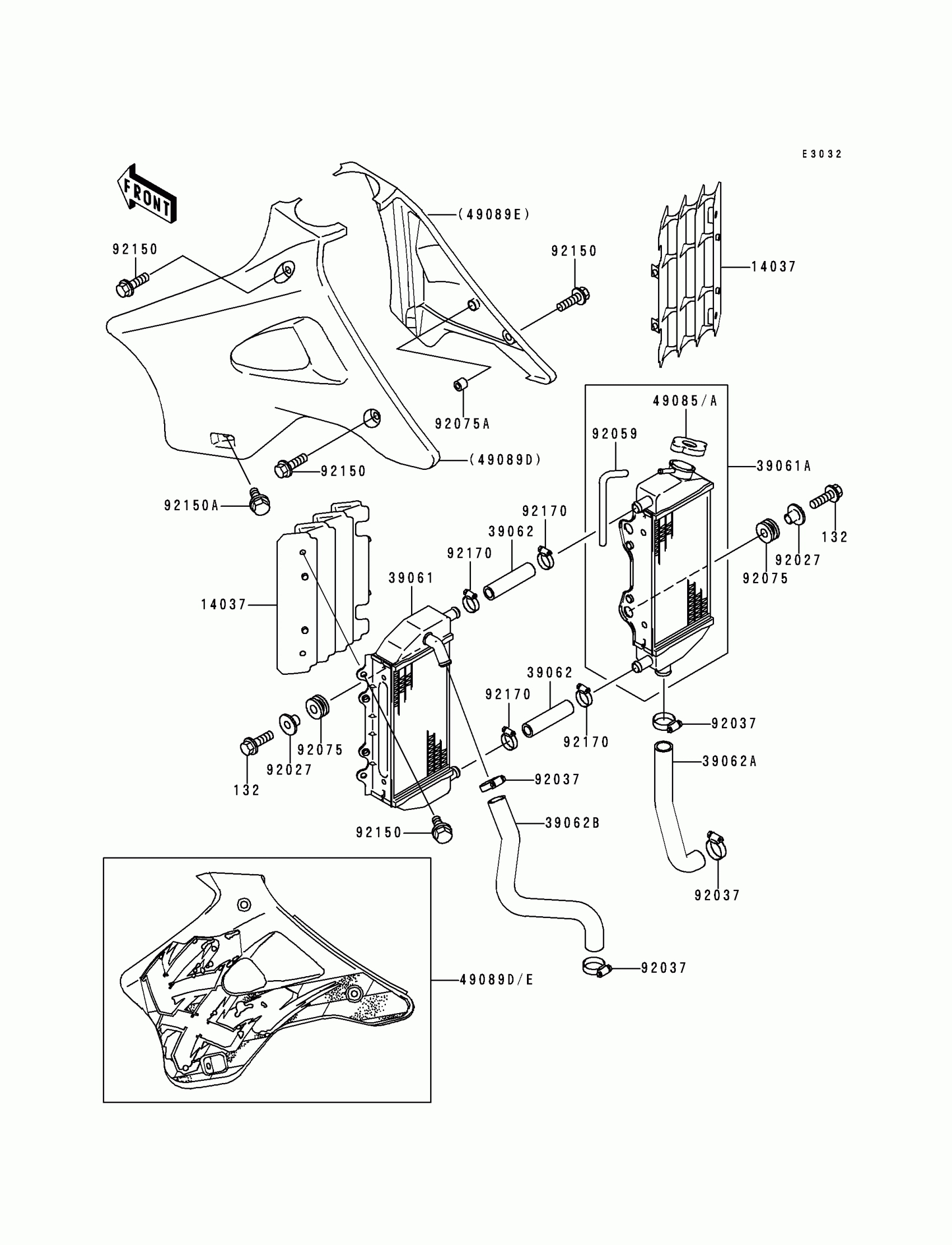

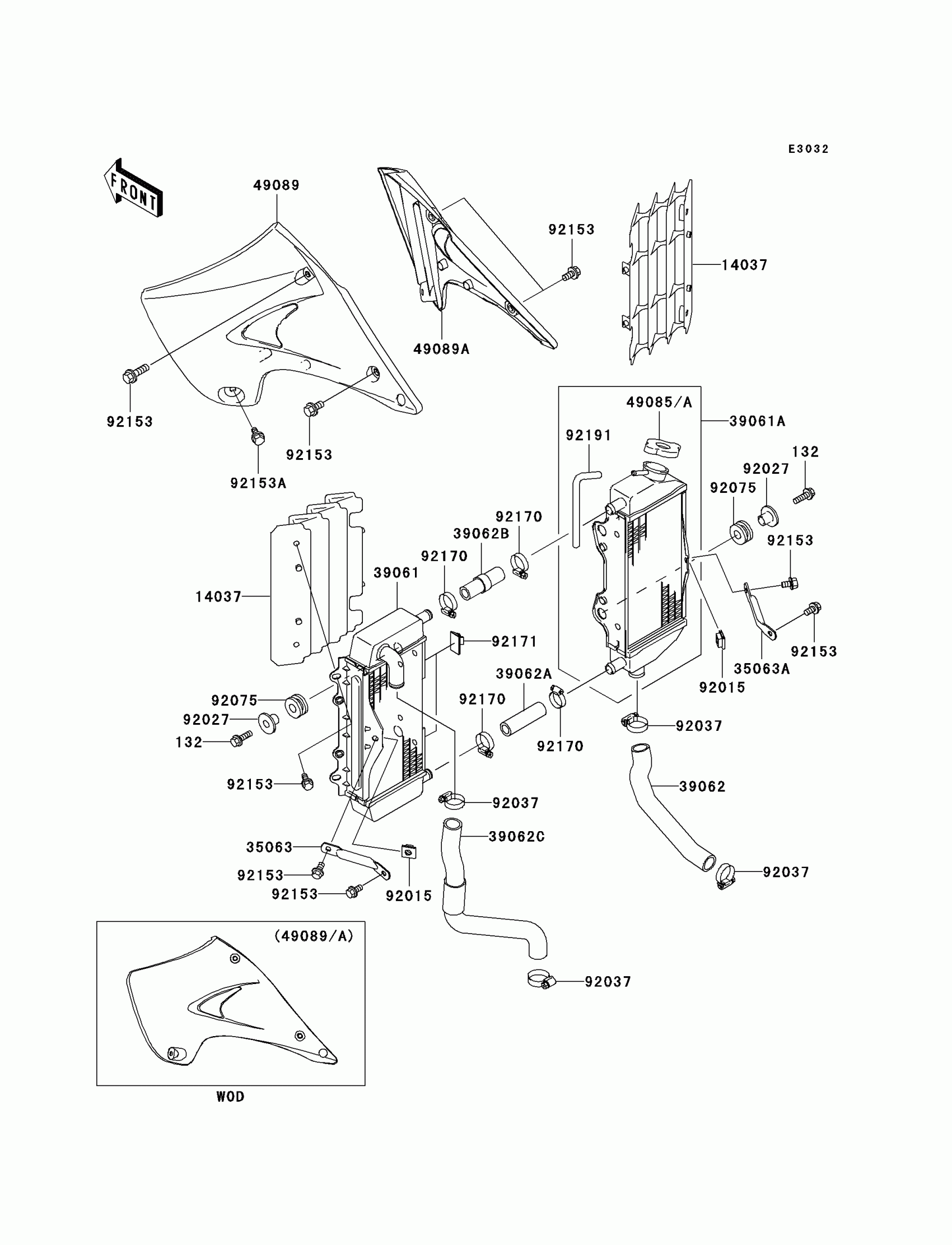

1983 Kawasaki KX125 Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14037

SCREEN,RADIATOR

14037-1002

1

$49.56

In stock

39061

EXCHANGER-ASSY-HEAT

39061-1004

1

$433.02

In stock

39062

HOSE-COOLING,RADIATOR

39062-1005

1
Out of stock

39062A

1

$36.90

In stock

49085

CAP-ASSY-PRESSURE

49085-1002

1

$30.44

In stock

49089

SHROUD-ENGINE,L.GREEN

49089-1001-6W

1
Out of stock

92001

SCREW,6X10,WHITE

92009-1286

1
Out of stock

92027

COLLAR,6.5X10X14.1

92027-1183

1

$4.37

In stock

92037

CLAMP,COOLING HOSE

92037-1364

1
Out of stock

92059

TUBE,RESERVE TANK

92059-1202

1

$23.59

In stock

92071

GROMMET,RADIATOR

92071-1038

1
Out of stock

92075

DAMPER

92075-1352

1

$5.16

In stock

130

BOLT-FLANGED,6X10

130G0610

1
Out of stock

130A

BOLT-FLANGED,6X20

130G0620

1
Out of stock
