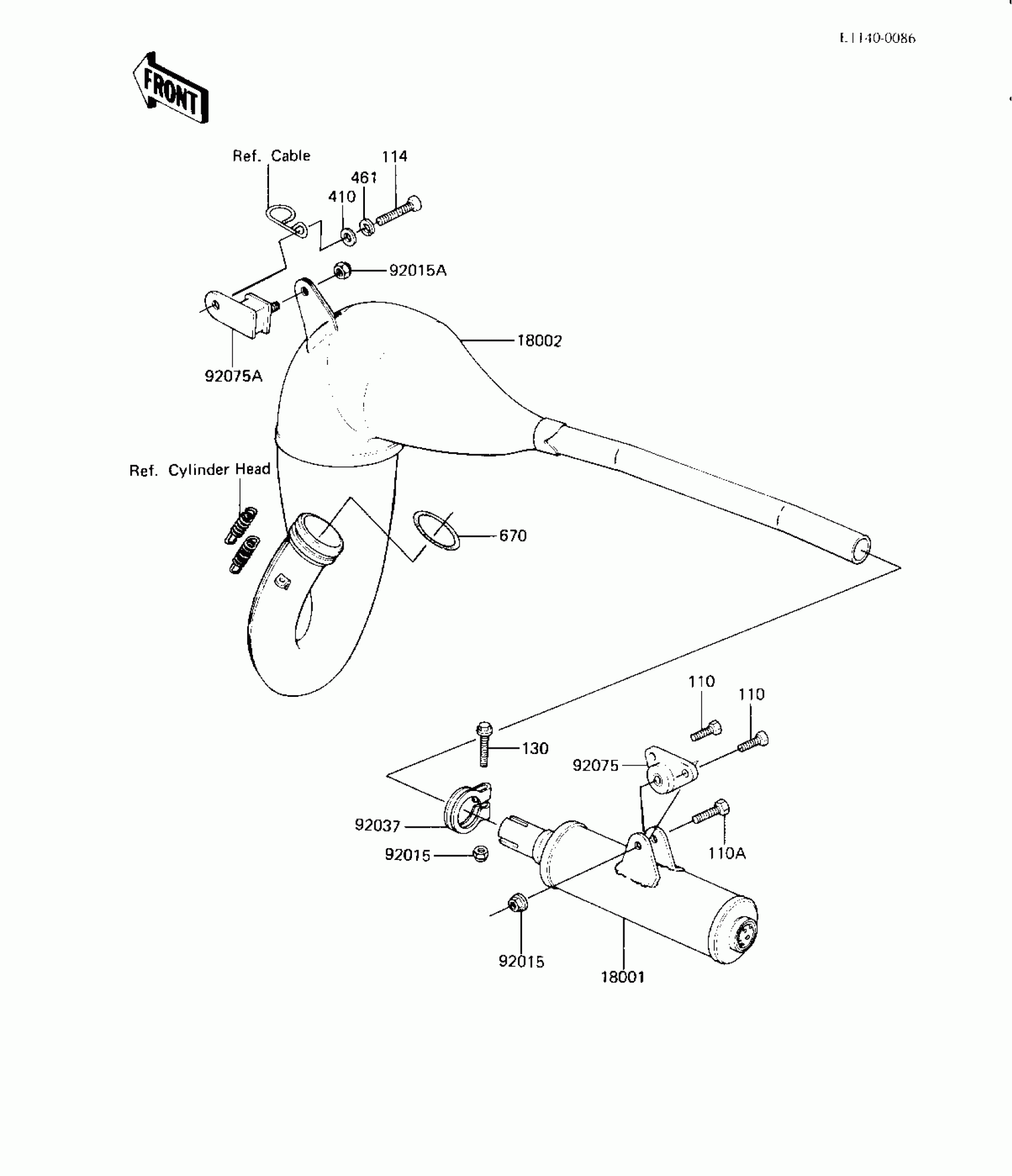

Kawasaki KX125 MUFFLER (KX125-B1) Diagram

#

Description

Price

18001

MUFFLER

18001-1270

Unavailable

18002

BODY-COMP-MUFFLER

18002-1220

$285.08

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92015A

NUT,LOCK,8MM

92015-1124

$4.30

92037

CLAMP,MUFFLER

92037-1169

Unavailable

92075

DAMPER RUBBER

92075-1046

Unavailable

92075A

DAMPER,MUFFLER FITING

92075-1060

Unavailable

110

BOLT-UPSET

112G0618

Unavailable

110A

BOLT-UPSET

112G0625

Unavailable

114

BOLT-SMALL-UPSET 8X25

115G0825

Unavailable

130

BOLT,FLANGED,6X35

130H0635

Unavailable

410

WASHER PLAIN 8MM

410B0800

Unavailable

461

WASHER SPRING 8MM

461F0800

Unavailable

670

O RING,45MM

670E3045

$14.69
