1983 Kawasaki KX125 Kickstarter Mechanism Diagram

← All diagrams

Find the part on the Kickstarter Mechanism diagram for your 1983 Kawasaki KX125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

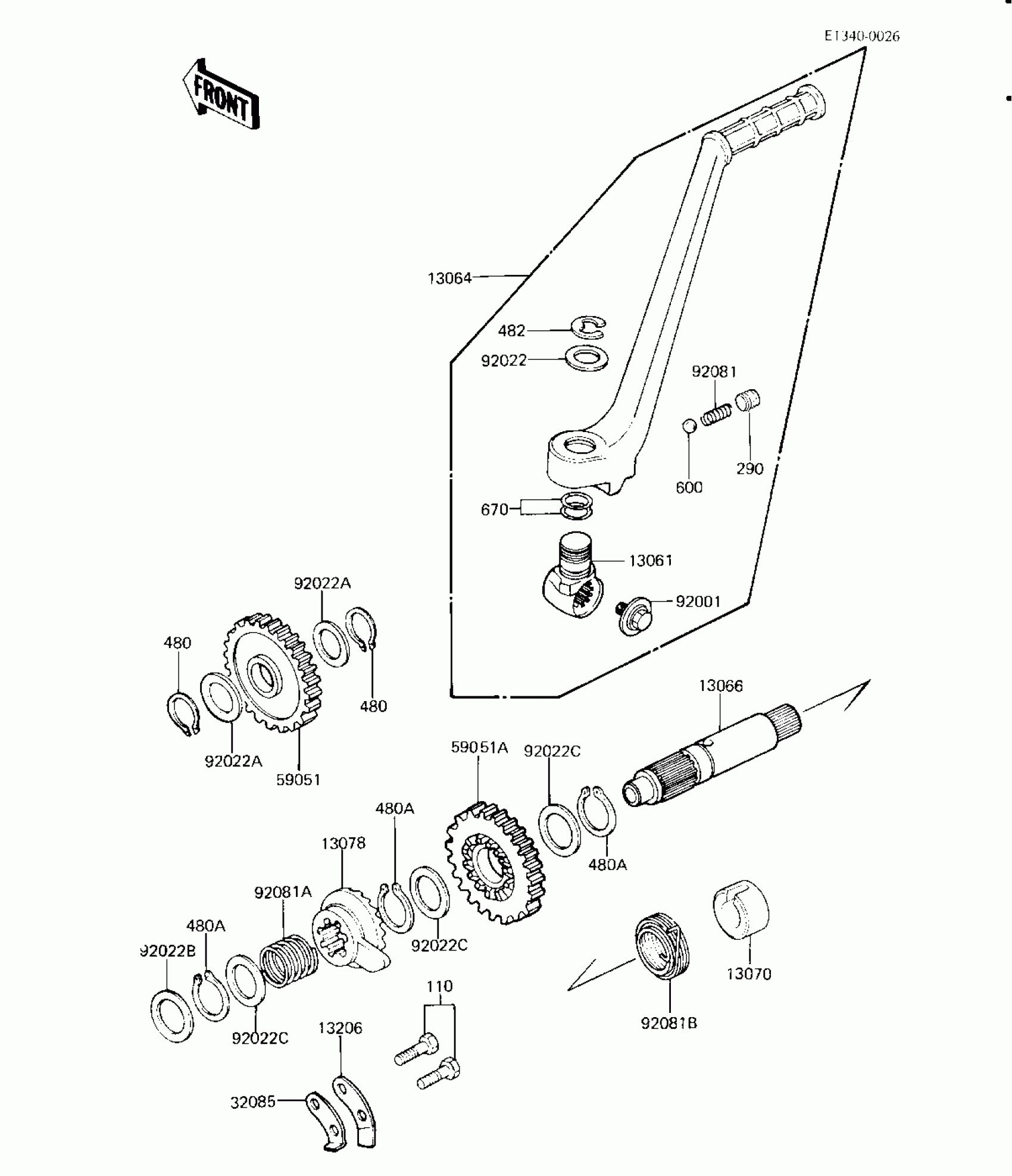

1983 Kawasaki KX125 Kickstarter Mechanism Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13061

BOSS,KICK PEDAL

13061-1047

1
Out of stock

13064

LEVER-ASSY-KICK,PEDAL

13064-1029

1
Out of stock

13066

SHAFT-KICK,STARTER

13066-1019

1
Out of stock

13070

GUIDE,KICK SPRING

13070-1007

1
Out of stock

13078

RATCHET

13078-1052

1

$67.80

In stock

13206

GUIDE-KICK

13206-1059

1
Out of stock

32085

STOPPER,KICKSTARTER

32085-1016

1
Out of stock

59051

IDLE GEAR,KICKSTARTER

59051-1009

1
Out of stock

59051A

GEAR-SPUR,KICKSTARTER

59051-1036

1
Out of stock

92001

BOLT,FLANGED,6X10

92001-1034

1

$8.16

In stock

92022

WASHER,15.2X20X1

92022-1019

1

$4.61

In stock

92022A

WASHER,15.3X25X0.5

92022-1045

1
Out of stock

92022B

WASHER,12.3X20X0.5

92022-269

1
Out of stock

92022C

WASHER,16.8X22X0.5

92022-315

1
Out of stock

92081

SPRING,KICK PEDAL

92081-020

1

$3.39

In stock

92081A

SPRING,RATCHET

92081-122

1

$6.98

In stock

92081B

SPRING,KICKSTARTER

92081-1413

1
Out of stock

110

BOLT-UPSET

112G0618

1
Out of stock

290

1

$4.25

In stock

480

1

$1.85

In stock

480A

1

$3.43

In stock

482

CIR CLIP

482K0100

1

$0.69

In stock

600

BALL-STEEL,1/4

600A0800

1

$0.67

In stock

670

O RING,12MM

670B2012

1

$2.58

In stock
