1983 Kawasaki KX125 Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1983 Kawasaki KX125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

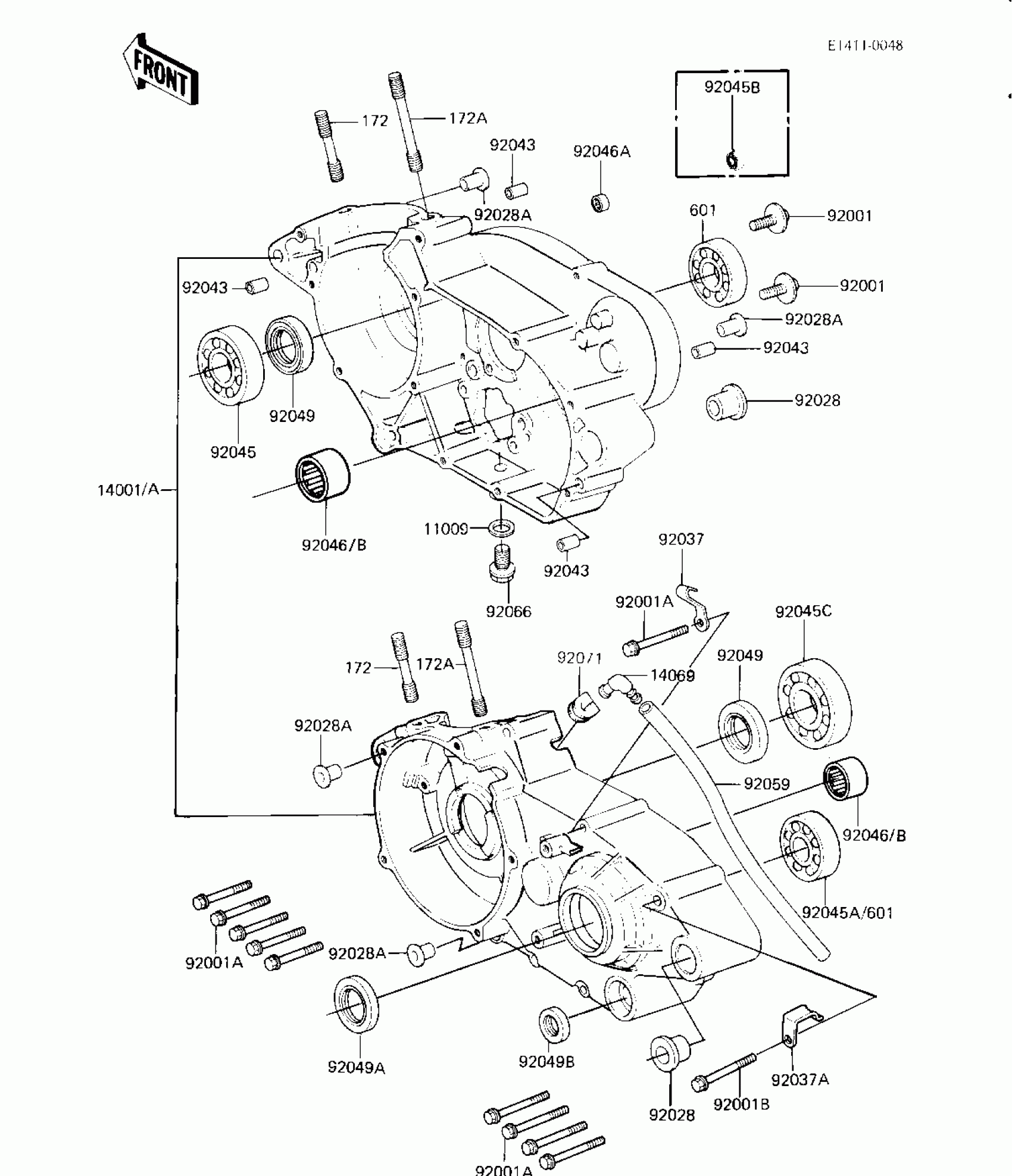

1983 Kawasaki KX125 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,10.5X16X1

92065-058

1

$3.16

In stock

14001A

SET-CRANKCASE

14001-5136

1
Out of stock

14069

BREATHER ASSY

14069-1001

1

$22.77

In stock

92001

BOLT,FLANGED,6X18

92001-1066

1

$4.93

In stock

92001A

BOLT-FLANGED-SMALL,6X40

132G0640

1
Out of stock

92001B

BOLT,FLANGED,6X65

92001-1787

1

$3.97

In stock

92028

BUSHING,CASE PIVOT

92028-1123

1

$26.76

In stock

92028A

BUSHING

92028-1133

1
Out of stock

92037

CLAMP CABLE

92037-016

1
Out of stock

92037A

CLAMP,HARNESS

92037-1318

1

$7.25

In stock

92043

PIN,DOWEL,6.3X8X14

92042-007

1

$4.51

In stock

92045

BEARING,BALL

92045-1006

1
Out of stock

92045A

BEARING,BALL

92045-1007

1
Out of stock

92045B

BEARING-BALL

92045-1211

1

$9.41

In stock

92045C

BEARING,BALL,#6305SH

92045-1024

1
Out of stock

92046B

BEARING-NEEDLE,HMK151

92046-1058

1
Out of stock

92049

OIL SEAL,TBJ-20407

92049-1065

1
Out of stock

92049A

SEAL-OIL,SC25376

92050-013

1
Out of stock

92049B

SEAL-OIL,TB13225.5

92051-005

1
Out of stock

92059

TUBE,6X9X750

92059-1372

1

$14.65

In stock

92066

PLUG,DRAIN,10X12

92067-001

1

$3.50

In stock

92071

GROMMET,BREATHER

92071-042

1

$3.39

In stock

172

STUD,8X25

92004-1008

1
Out of stock

172A

STUD 8X60

172G0860

1
Out of stock

601A

1

$6.58

In stock
