1988 Kawasaki KX125 Crankshaft/piston Diagram

← All diagrams

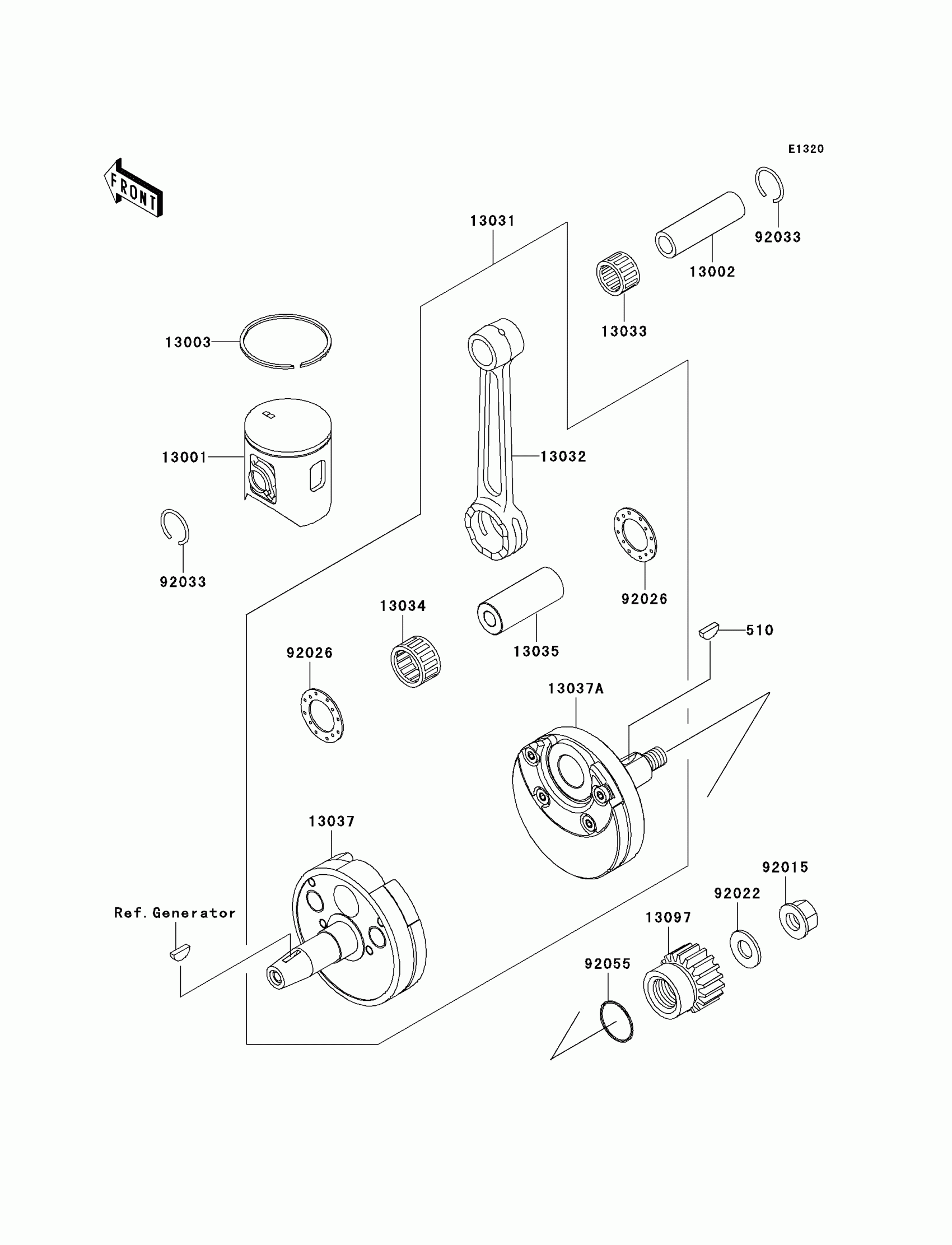

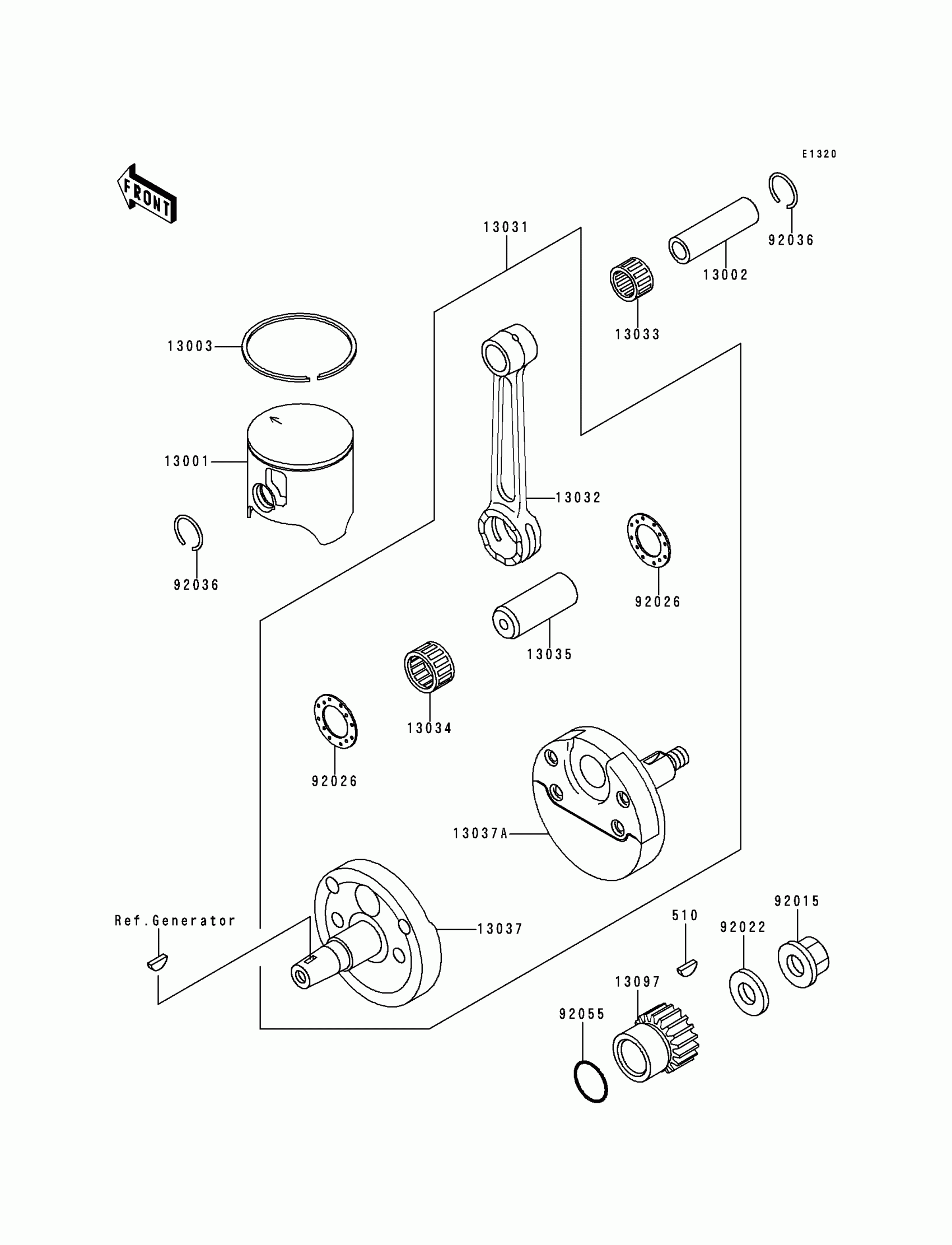

Find the part on the Crankshaft/piston diagram for your 1988 Kawasaki KX125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Kawasaki KX125 Crankshaft/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13001

PISTON-ENGINE

13001-1266

1
Out of stock

13002

PIN-PISTON

13002-1066

1
Out of stock

13008

RING-SET-PISTON

13008-1096

1
Out of stock

13031

CRANKSHAFT-COMP

13031-1259

1
Out of stock

13033

BEARING-SMALL END,KBK16X21

13033-1051

1
Out of stock

13034

BEARING-BIG END,B4

13034-1081

1
Out of stock

13035

PIN-CRANK

13035-1010

1
Out of stock

13037

CRANKSHAFT,LH

13037-1321

1
Out of stock

13037A

CRANKSHAFT,RH

13037-1322

1
Out of stock

13044

SET-CONNECTING ROD

13044-5071

1
Out of stock

13097

GEAR-PRIMARY SPUR,18T

13097-1203

1
Out of stock

92015

NUT,FLANGED,12MM

92015-1156

1
Out of stock

92022

WASHER

92022-1831

1
Out of stock

92026

SPACER,22.2X37X1.0

92026-1136

1
Out of stock

92033

RING-SNAP,PISTON PIN

92033-1242

1
Out of stock

92055

RING-O,18.8X1.9

92055-086

1
Out of stock

510

WOODRUFF KEY

510A5100

1
Out of stock
