2025 Kawasaki KX112 Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 2025 Kawasaki KX112, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

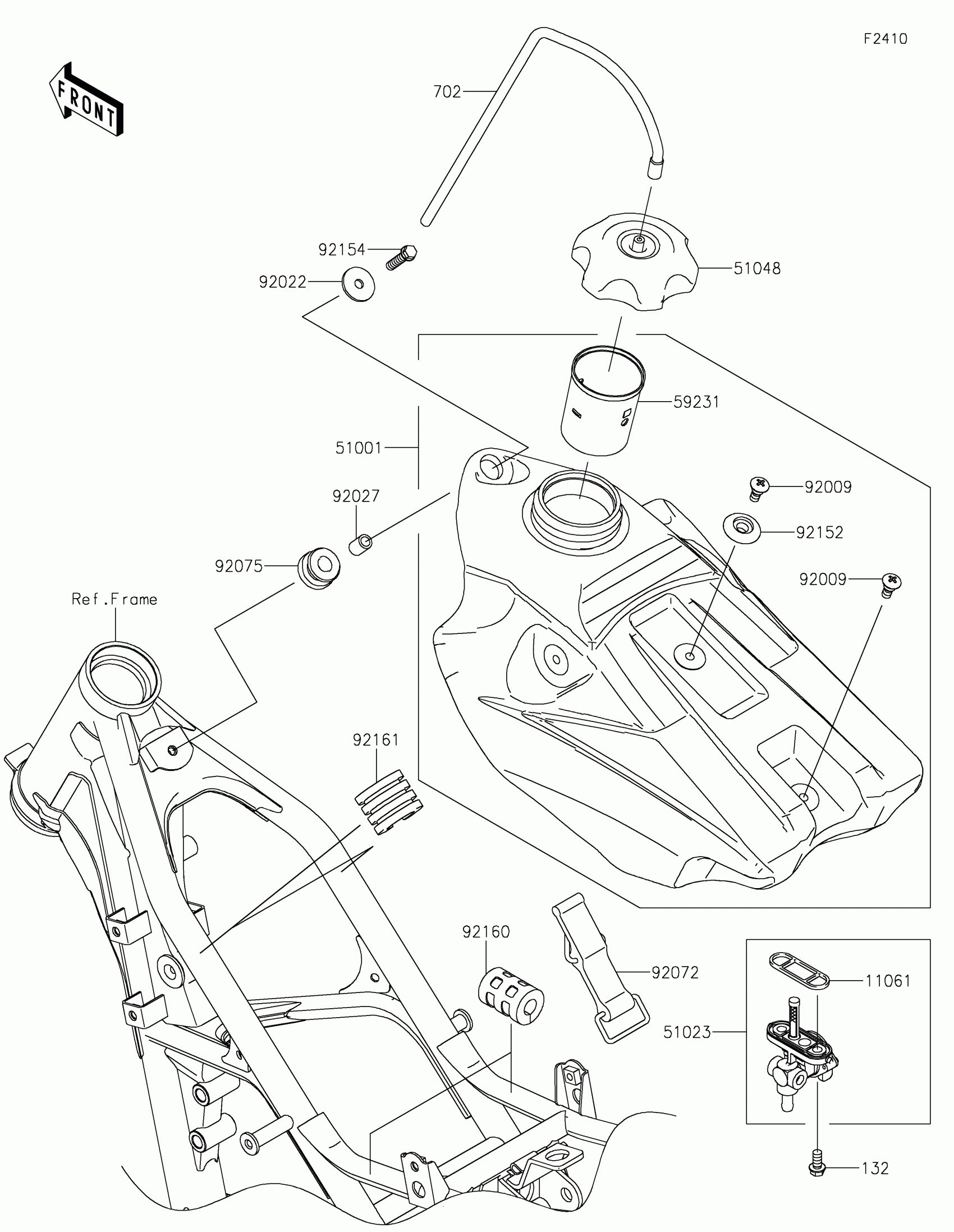

2025 Kawasaki KX112 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,FUEL TAP

11061-0181

1

$5.01

In stock

51001

TANK-COMP-FUEL

51001-0776

1

$480.30

In stock

51023

TAP-ASSY,FUEL

51023-0024

1

$65.63

In stock

51048

CAP-ASSY-TANK,FUEL

51048-0009

1

$53.60

In stock

59231

FILLER

59231-0019

1

$5.80

In stock

92009

SCREW,6MM

92009-1971

1
Out of stock

92022

WASHER,6.5X24X2

92022-1690

1

$3.12

In stock

92027

COLLAR,6.8X10X14

92027-1966

1

$4.42

In stock

92072

BAND,FUEL TANK

92072-1229

1

$10.09

In stock

92075

DAMPER

92075-1787

1

$5.21

In stock

92152

COLLAR

92152-1346

1

$3.33

In stock

92154

BOLT,FLANGED,6X25

92154-0520

1

$2.68

In stock

92160

DAMPER,FUEL TANK

92160-1236

1

$16.98

In stock

92161

DAMPER,FUEL TANK

92161-1175

1

$4.98

In stock

132

1

$1.12

In stock

702

TUBE-RUBBER

702A05340

1

$2.58

In stock
