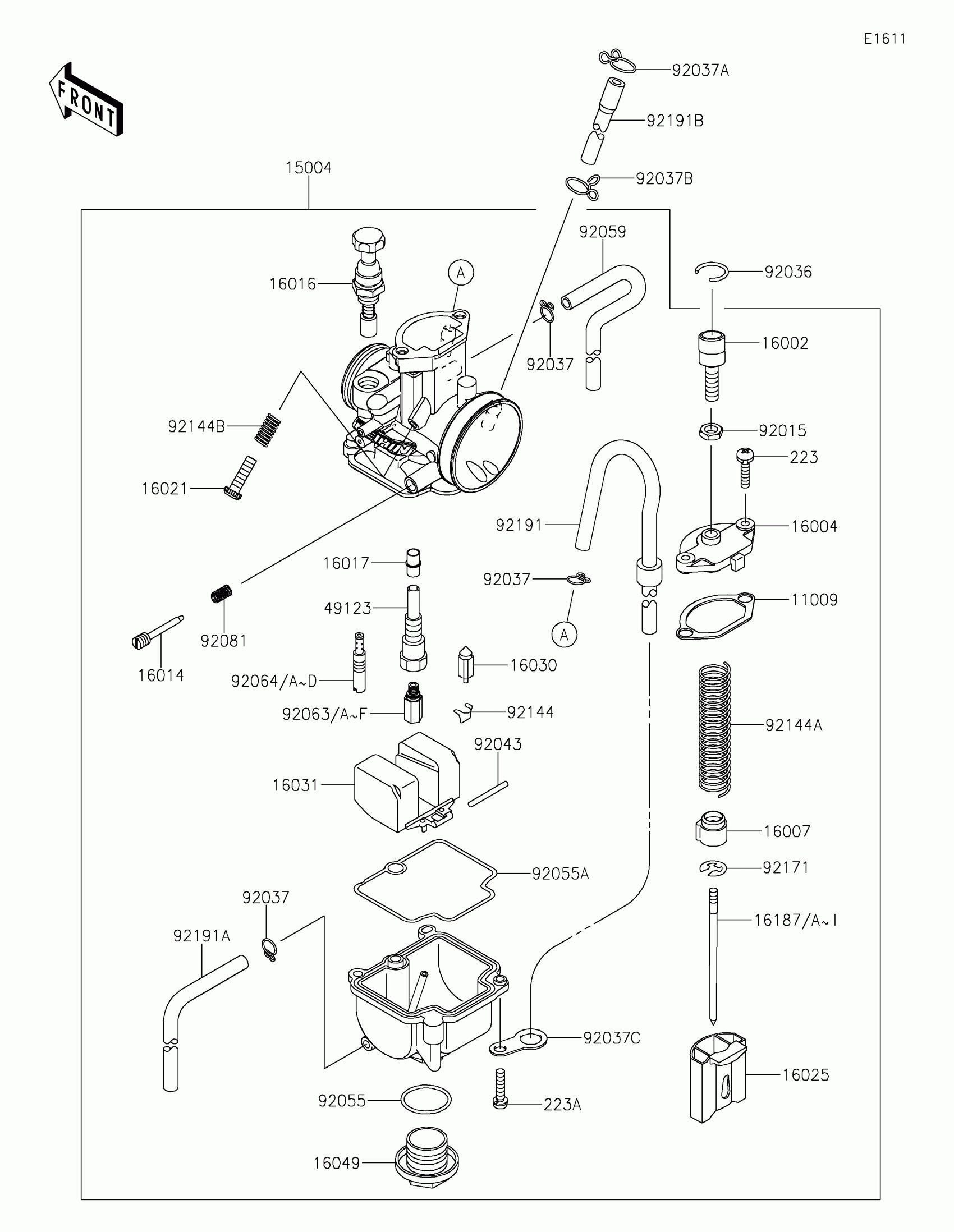

Kawasaki KX112 Carburetor Diagram

#

Description
Price

11009

GASKET,MIXING CHAMBER

11009-1759

$9.20

15004

CARBURETOR-ASSY,PWK28

15004-1096

$381.74

16002

ADJUSTER-CABLE

16002-1056

$19.45

16004

CAP-CHAMBER,MIXING

16004-1065

$81.08

16007

SEAT-SPRING,THROTTLE VALVE

16007-1155

$8.12

16014

SCREW-PILOT AIR

16014-1058

$16.82

16016

PLUNGER,STARTER

16016-1075

$41.48

16017

JET-NEEDLE

16017-1431

Unavailable

16021

SCREW-THROTTLE STOP

16021-1161

$14.12

16025

VALVE-THROTTLE,CA3.5

16025-1220

$142.77

16030

VALVE-FLOAT

16030-1064

$51.16

16031

FLOAT

16031-1065

$54.64

16049

COVER-MAIN JET

16049-1051

$33.92

16187

NEEDLE-JET,NRJA

16187-0557

$31.38

16187A

NEEDLE-JET,NRJB

16187-0558

$31.38

16187B

NEEDLE-JET,NRJC

16187-0559

$31.38

16187C

NEEDLE-JET,NRJD

16187-0560

$31.38

16187D

NEEDLE-JET,NRJE

16187-0561

$31.38

16187E

NEEDLE-JET,NRKA

16187-0562

$31.38

16187F

NEEDLE-JET,NRKB

16187-0563

$31.38

16187G

NEEDLE-JET,NRKC

16187-0564

$31.38

16187H

NEEDLE-JET,NRKD

16187-0565

$31.38

16187I

NEEDLE-JET,NRKE

16187-0566

$31.38

49123

HOLDER-MAIN JET

49123-1054

$21.76

92015

NUT,CABLE ADJUST LOCK

92015-1574

$5.71

92036

RING-SNAP

92036-018

$2.97

92037

CLAMP,TUBE

92037-1396

$4.18

92037A

CLAMP,TUBE

92037-147

$5.61

92037B

CLAMP

92037-1712

$3.81

92037C

CLAMP,HOSE

92037-1969

$6.18

92043

PIN,FLOAT

92043-1207

$10.71

92055

RING-O,MAIN JET COVER

92055-1167

$7.25

92055A

RING-O,FLOAT CHAMBER

92055-1389

$7.54

92059

TUBE,4X7X360

92059-1941

$16.32

92063

JET-MAIN,#142

92063-1361

$13.39

92063A

JET-MAIN,#145

92063-1362

$13.39

92063B

JET-MAIN,#148

92063-1363

$13.39

92063C

JET-MAIN,#150

92063-1364

$13.39

92063D

JET-MAIN,#152

92063-1365

$15.17

92063E

JET-MAIN,#155

92063-1366

$14.24

92063F

JET-MAIN,#158

92063-1367

$14.24

92064

JET-PILOT,#38

92064-1139

$15.97

92064A

JET-PILOT,#40

92064-1140

$12.84

92064B

JET-PILOT,#42

92064-1141

$12.84

92064C

JET-PILOT,#45

92064-1142

$12.84

92064D

JET-PILOT,#48

92064-1143

$15.97

92081

SPRING,ADJUST SCREW

92081-1555

$4.14

92144

SPRING,FLOAT VALVE

92144-1178

$7.75

92144A

SPRING,THROTTLE VALVE

92144-1566

$10.83

92144B

SPRING,THROTTLE STOP SCREW

92144-1782

$15.61

92171

CLAMP

92171-1323

$11.32

92191

TUBE,4X7X560

92191-1243

$10.03

92191A

TUBE,4X7X420

92191-1591

$12.32

92191B

TUBE

92191-1610

$5.87

223

SCREW-PAN-WS-CROS,4X14

223AB0414

$3.19

223A

SCREW-PAN-WS-CROS,4X16

223AB0416

$3.14
