2013 Kawasaki KX™85 Swingarm Diagram

← All diagrams

Find the part on the Swingarm diagram for your 2013 Kawasaki KX™85, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

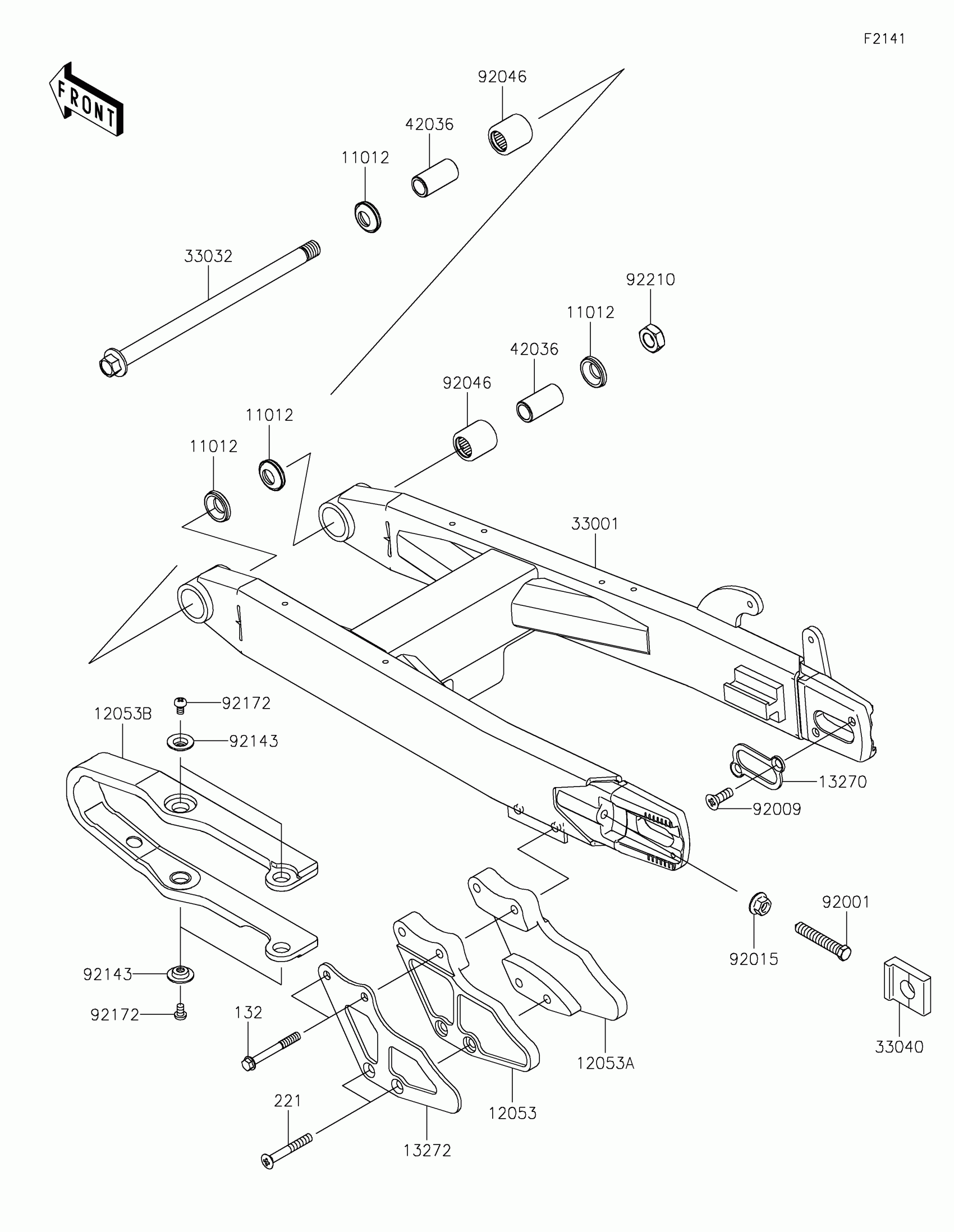

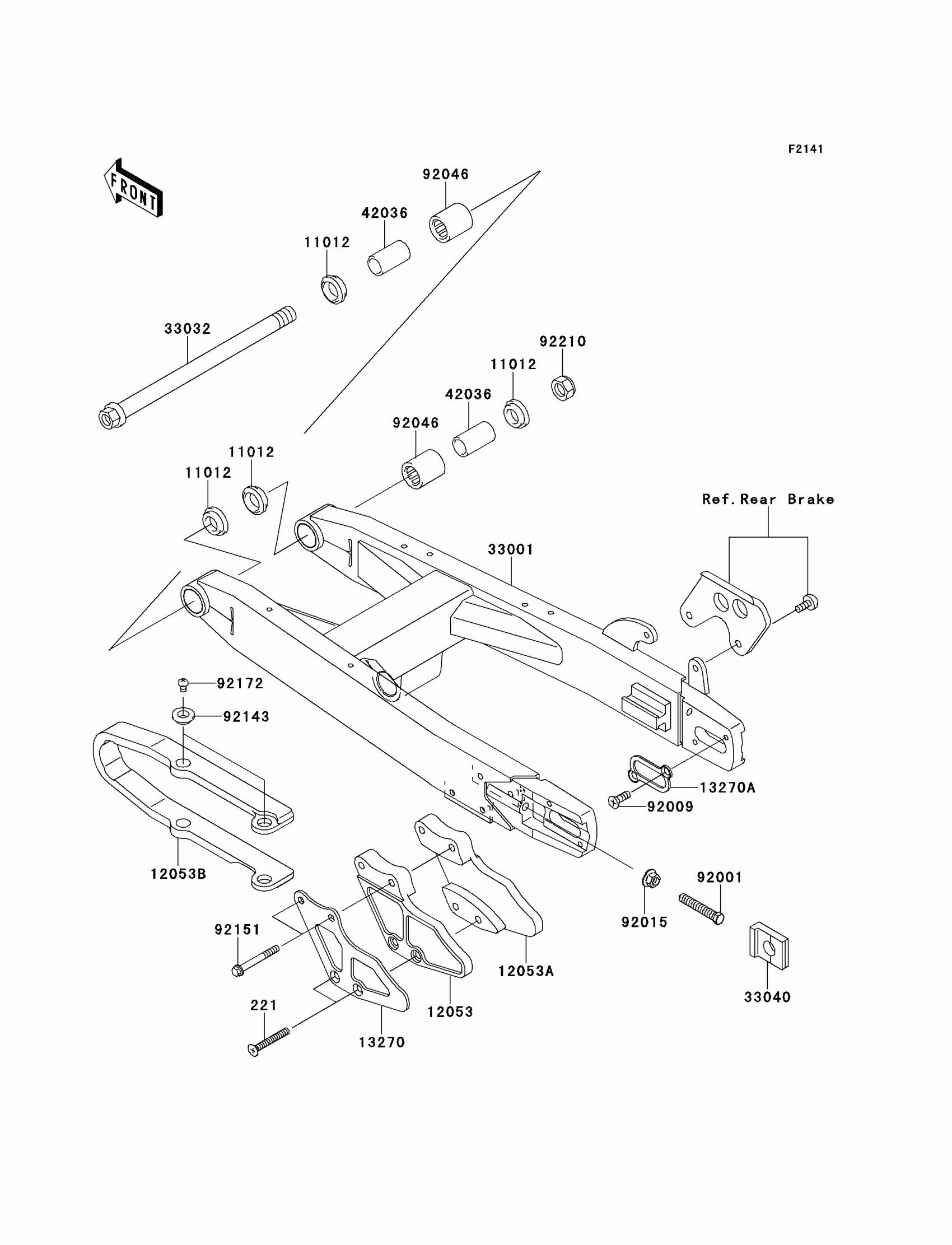

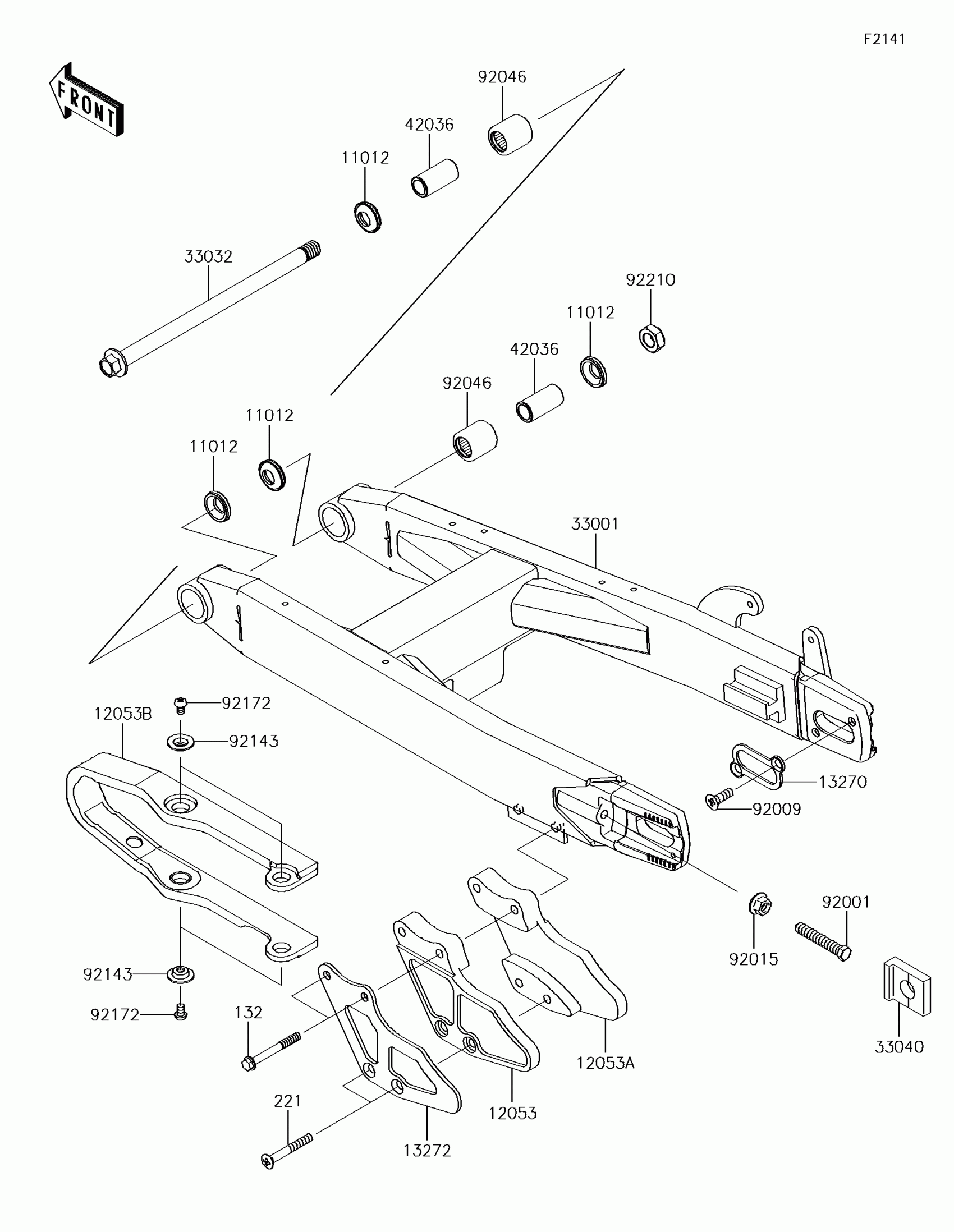

2013 Kawasaki KX™85 Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

221

1

$3.28

In stock

11012

CAP

11012-1263

1

$13.08

In stock

12053

GUIDE-CHAIN,RR,LH

12053-1203

1

$83.43

In stock

12053A

GUIDE-CHAIN,RR,RH

12053-1204

1

$83.43

In stock

12053B

GUIDE-CHAIN,FR

12053-1414

1

$52.13

In stock

13270

PLATE,GUIDE CHAIN

13270-1829

1
Out of stock

13270A

PLATE

13270-1899

1
Out of stock

33001

ARM-COMP-SWING,P.SILVER

33001-1542-458

1

$713.56

In stock

33032

SHAFT-SWING ARM

33032-1161

1

$32.80

In stock

33040

ADJUSTER-CHAIN

33040-1173

1
Out of stock

42036

1

$10.25

In stock

92001

BOLT,8X46

92001-1179

1

$14.80

In stock

92009

SCREW,5X10

92009-1828

1
Out of stock

92015

NUT,FLANGED,8MM

92015-1014

1
Out of stock

92046

BEARING-NEEDLE

92046-1046

1

$24.62

In stock

92143

COLLAR

92143-1676

1

$4.93

In stock

92151

BOLT,6X50

92151-1234

1

$2.03

In stock

92172

SCREW,5X8

92172-0119

1

$1.78

In stock

92210

NUT,LOCK,12MM

92210-1249

1
Out of stock
