Description

Price

132

BOLT-FLANGED-SMALL,8X30

132BC0830

$2.98

214

SCREW-PAN+-,5X18

214AB0518

$1.85

222

SCREW-CSK-RD-CROS,4X12

222AB0412

$1.87

311

NUT-HEX

311AA0500

$0.47

13070

GUIDE,THROTTLE

13070-0083

$5.87

13091

HOLDER,CLUTCH LEVER

13091-1728

$52.23

14091

COVER,THROTTLE CASE,UPP

14091-0873

$6.32

27010

SWITCH,ENGINE STOP

27010-0035

$53.89

32099

CASE,THROTTLE,UPP

32099-0037

$17.79

32099A

CASE,THROTTLE,LWR

32099-0038

$14.01

39183

BAND-ASSY,SWITCH

39183-1059

$9.89

46003

HANDLE,F.S.BLACK

46003-0027-18R

$90.13

46012

HOLDER-HANDLE,UPP,F.BLACK

46012-0011-21

$29.58

46019

GRIP-ASSY,THROTTLE

46019-0023

$26.45

46075

GRIP,LH

46075-0072

$11.10

46076

LEVER-ASSY-GRIP,CLUTCH

46076-1203

$35.83

46092

LEVER-GRIP,CLUTCH

46092-1165

$12.10

49006

BOOT,LEVER HOLDER

49006-1017

$14.12

49006A

BOOT,THROTTLE CASE

49006-1097

$13.56

59101

REEL,THROTTLE

59101-0003

$12.44

92009

SCREW,CABLE ADJUST,8MM

92009-1476

$17.66

92015

NUT,CABLE ADJUST LOCK,8MM

92015-1596

$6.75

92072

BAND,L=100

92072-0055

$3.51

92150

BOLT

92150-1474

$3.81

92151

BOLT,LEVER SET,5MM

92151-1103

$4.93

92170

CLAMP,LEVER HOLDER

92170-1226

$25.61

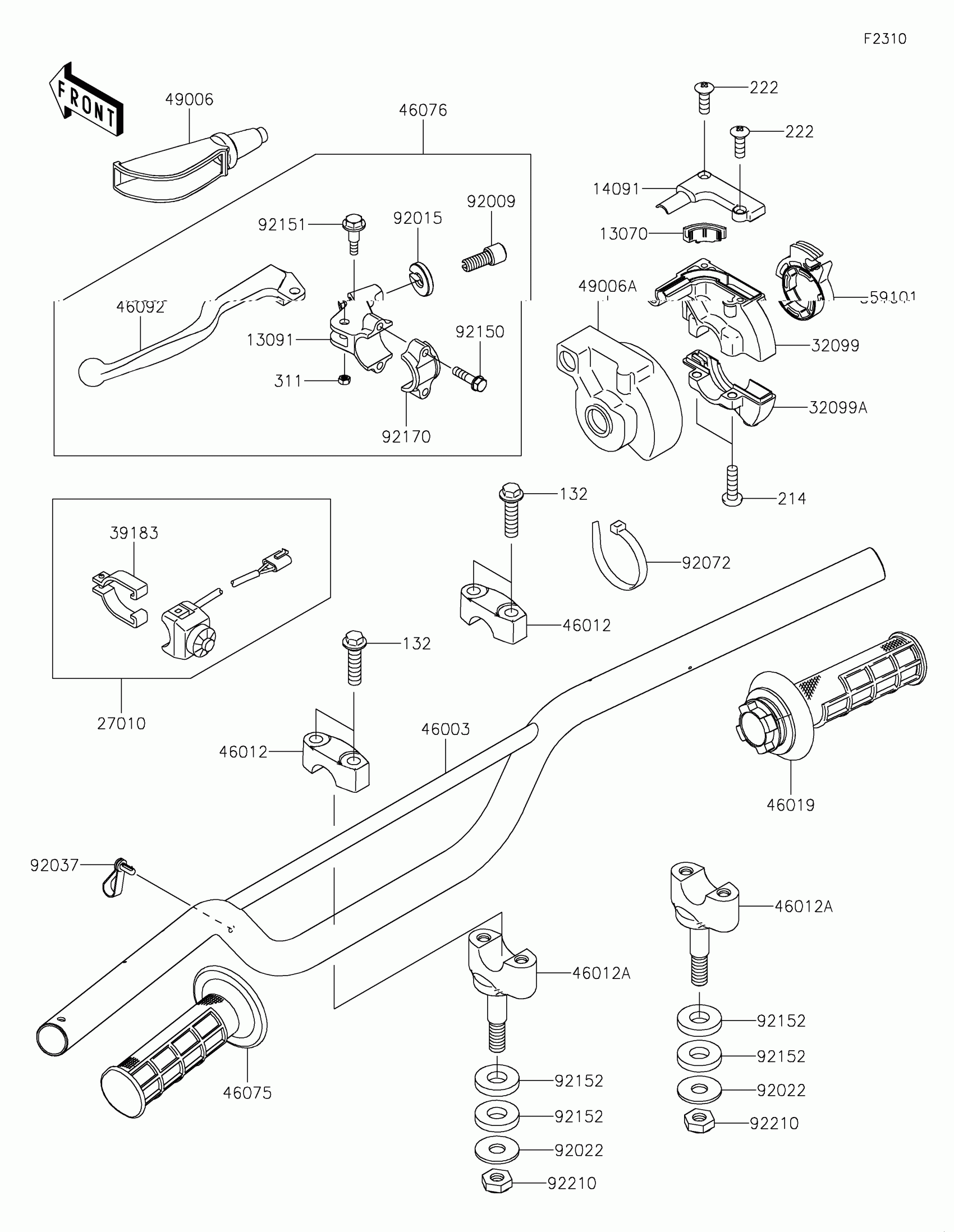

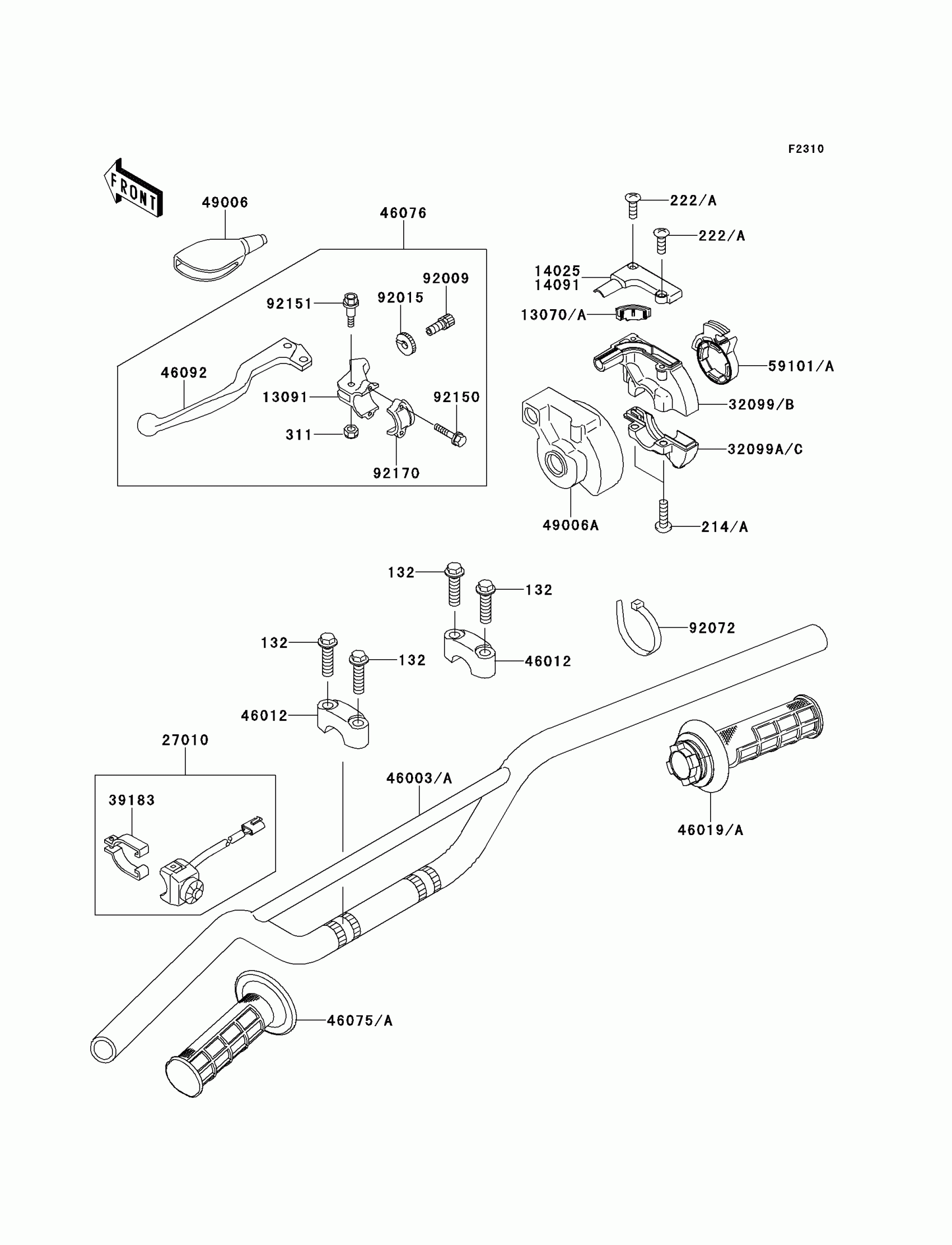

Kawasaki KX™85 Handlebar Diagram
