2013 Kawasaki KX™85 Cables Diagram

← All diagrams

Find the part on the Cables diagram for your 2013 Kawasaki KX™85, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

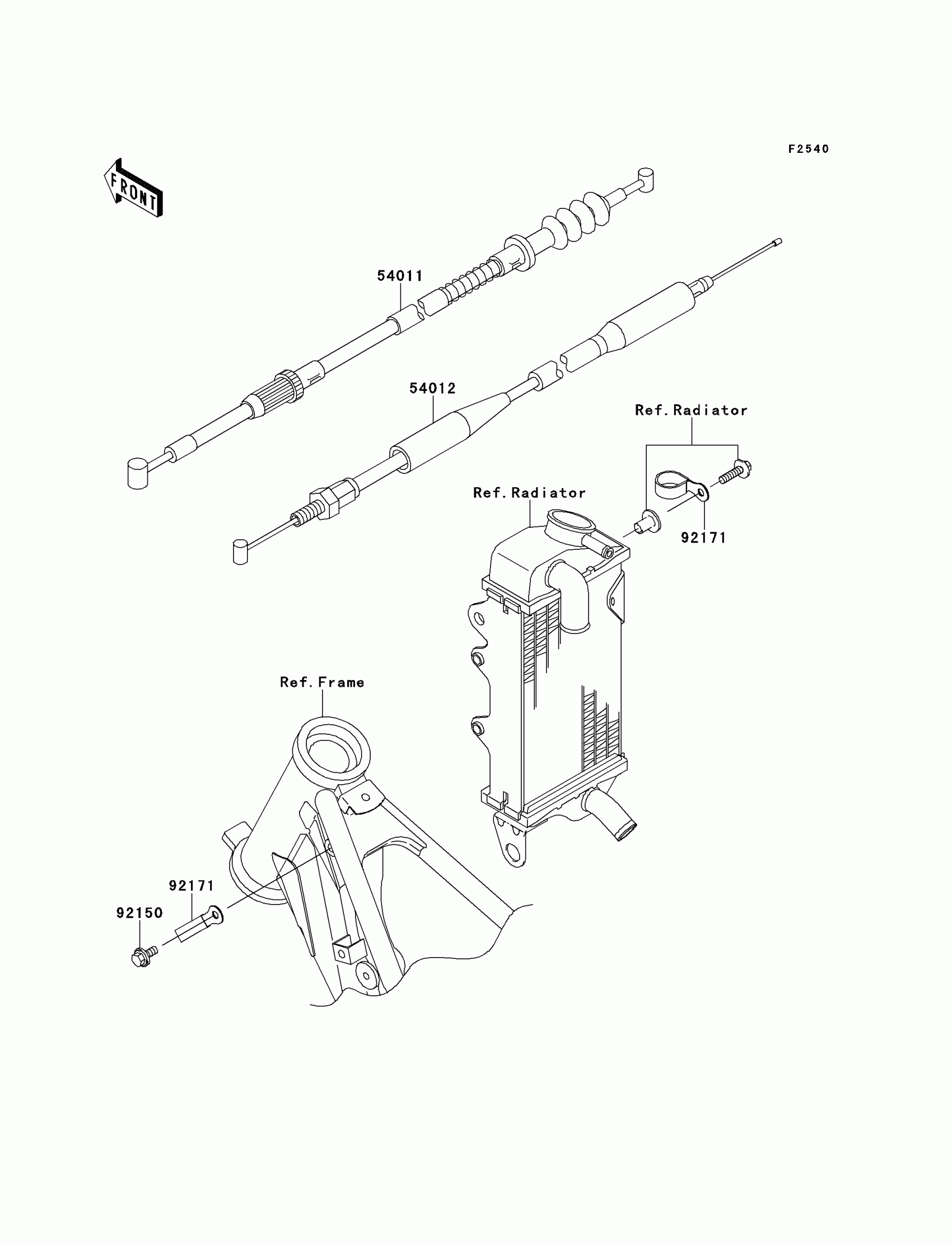

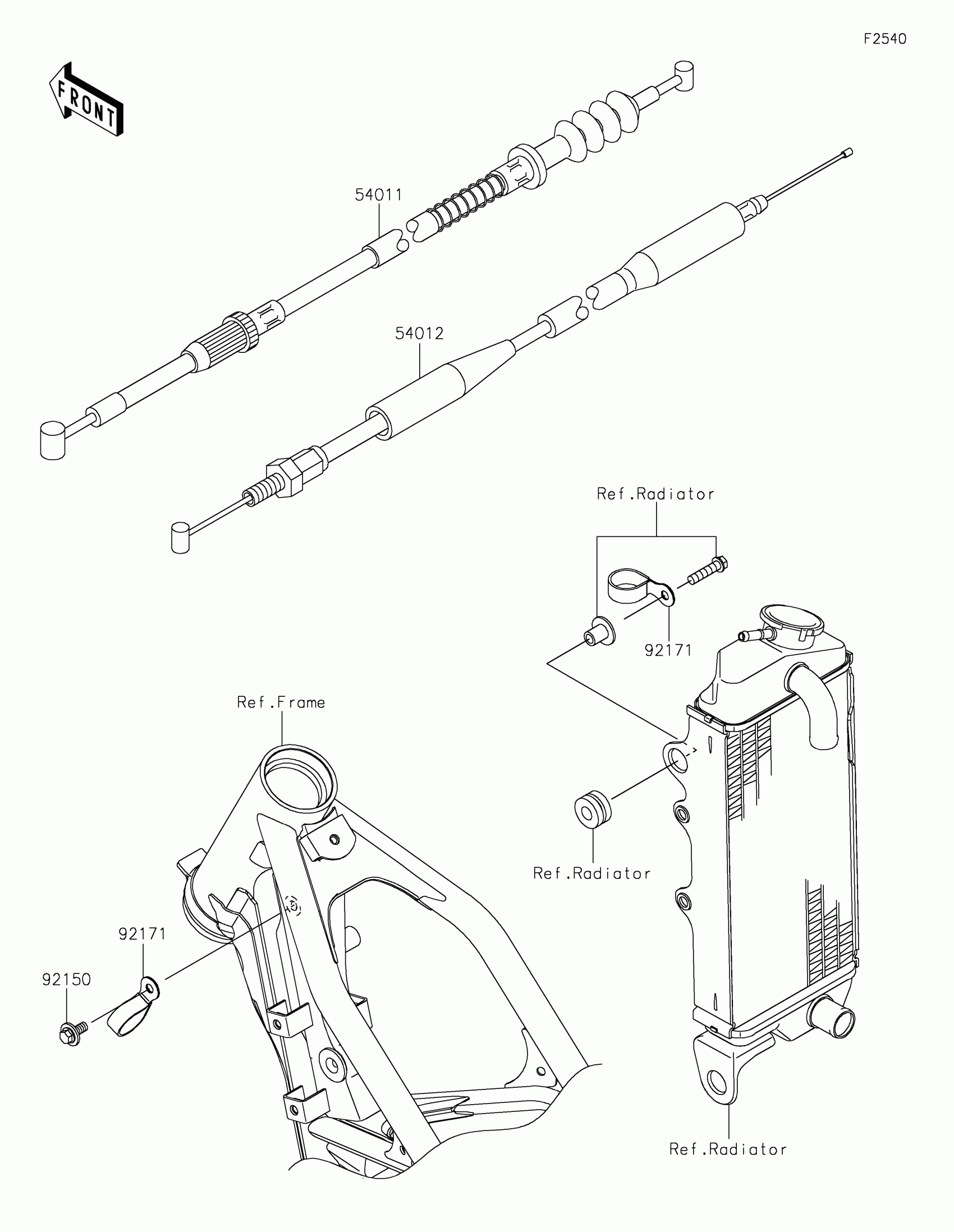

2013 Kawasaki KX™85 Cables Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

54011

CABLE-CLUTCH

54011-1375

1

$19.14

In stock

54012

CABLE-THROTTLE

54012-0096

1

$22.27

In stock

92150

BOLT,6X14

92150-1340

1

$4.02

In stock

92171

CLAMP

92171-1279

1

$8.93

In stock
← Rear Master Cylinder Front Fork →
