2013 Kawasaki KX™85 Engine Mount Diagram

← All diagrams

Find the part on the Engine Mount diagram for your 2013 Kawasaki KX™85, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

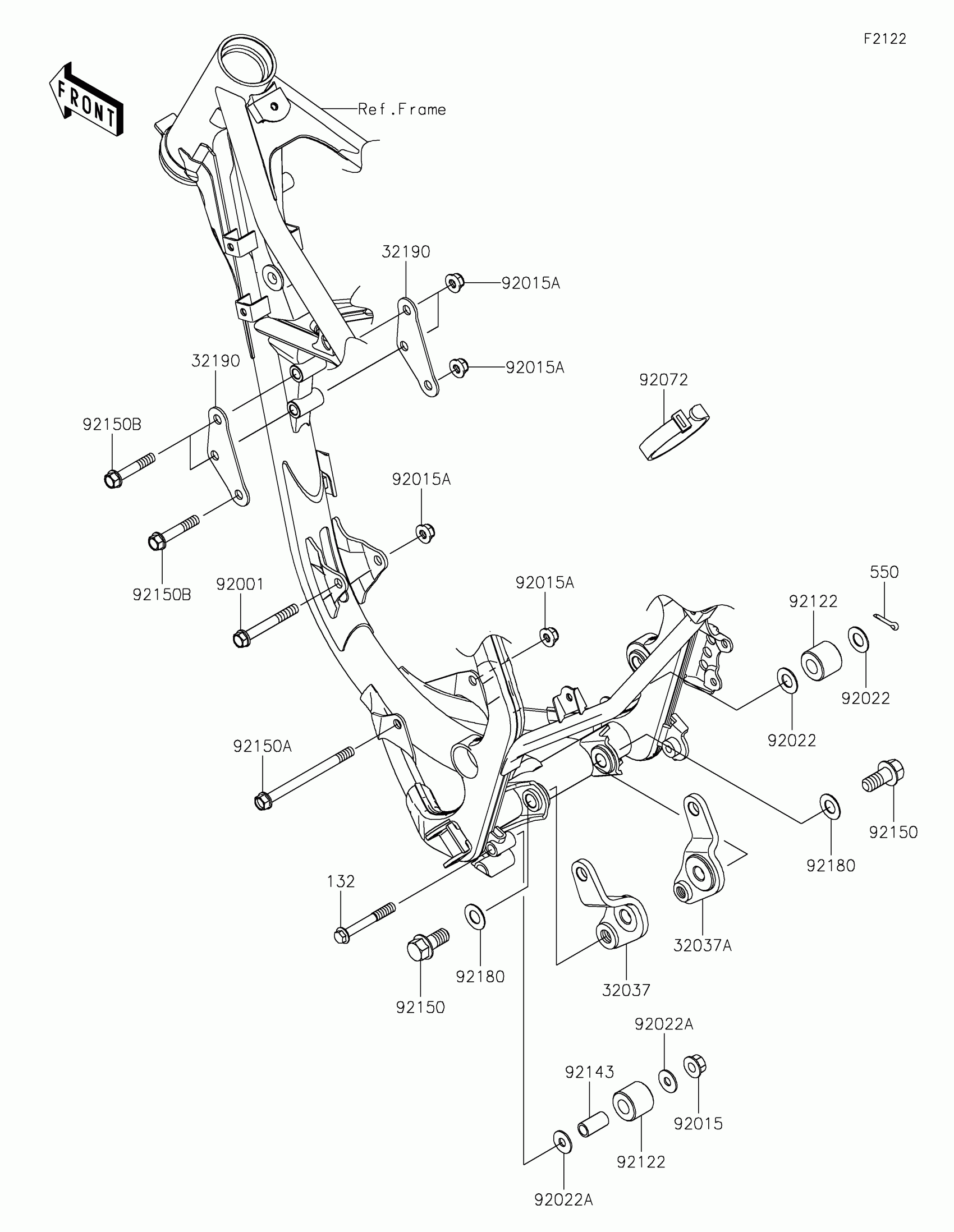

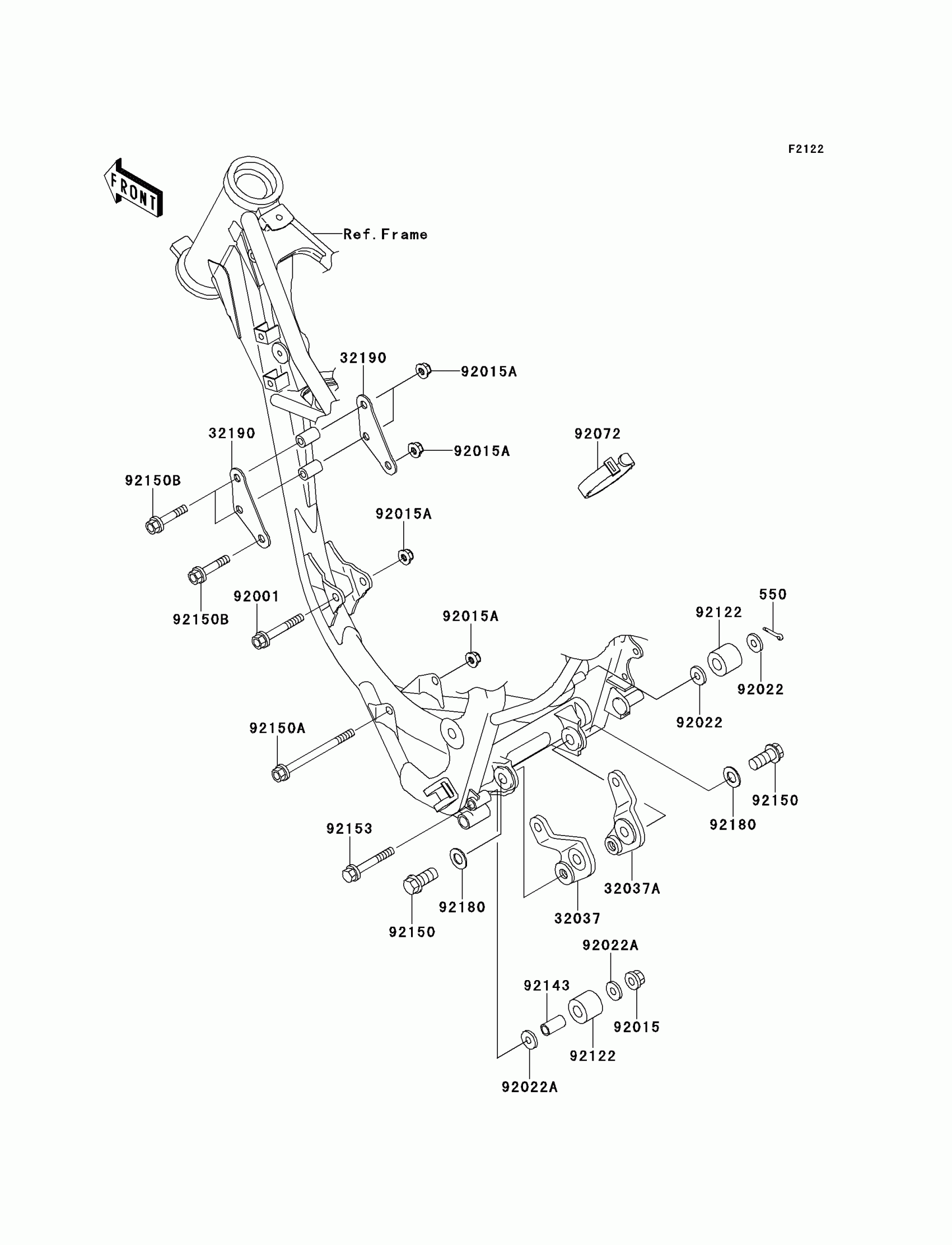

2013 Kawasaki KX™85 Engine Mount Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

550

PIN-COTTER,2.5X18

550AA2518

1

$0.61

In stock

32037

1

$48.79

In stock

32037A

1

$48.79

In stock

32190

BRACKET-ENGINE,HEAD

32190-1119

1

$14.49

In stock

92001

BOLT,FLANGED,8X63

92001-1006

1

$8.54

In stock

92015

NUT,FLANGED,8MM

92015-1406

1

$3.53

In stock

92015A

NUT,8MM

92015-1432

1

$5.21

In stock

92022

WASHER

92022-107

1

$2.20

In stock

92022A

WASHER,8.5X20X1.6

92022-1561

1

$3.43

In stock

92072

BAND,L=140

92072-1293

1

$5.61

In stock

92122

ROLLER,CHAIN GUIDE

92122-1213

1

$11.98

In stock

92143

COLLAR,9.5X12.7X25

92143-1432

1

$5.84

In stock

92150

BOLT,FLANGED,12X27

92150-1359

1

$6.24

In stock

92150A

BOLT,FLANGED,8X105

92150-1482

1

$7.86

In stock

92150B

BOLT,FLANGED,8X45

92150-1487

1

$5.21

In stock

92153

BOLT,FLANGED,8X60

92153-1012

1
Out of stock

92180

SHIM,12.5X24X0.5

92180-1060

1

$3.53

In stock
