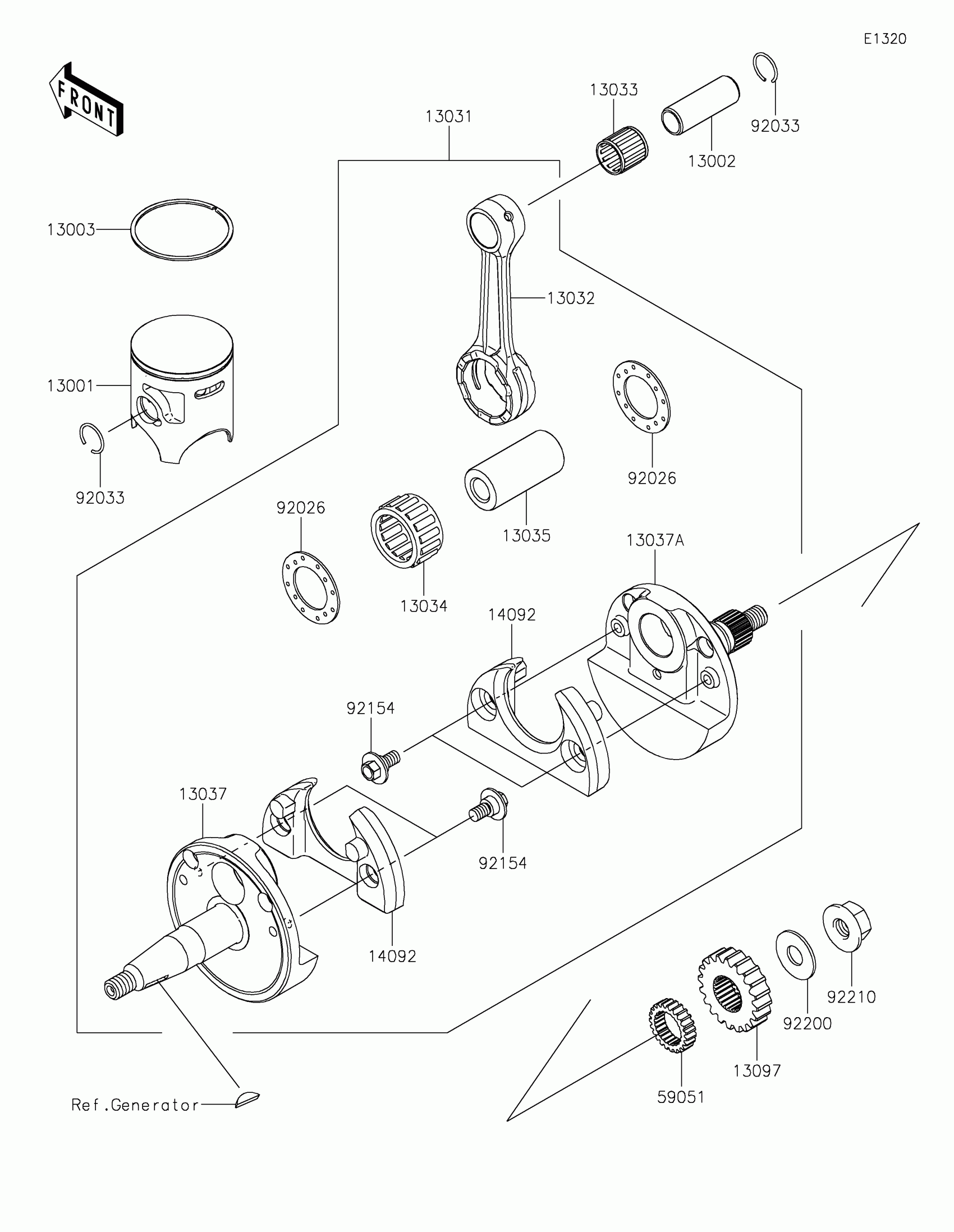

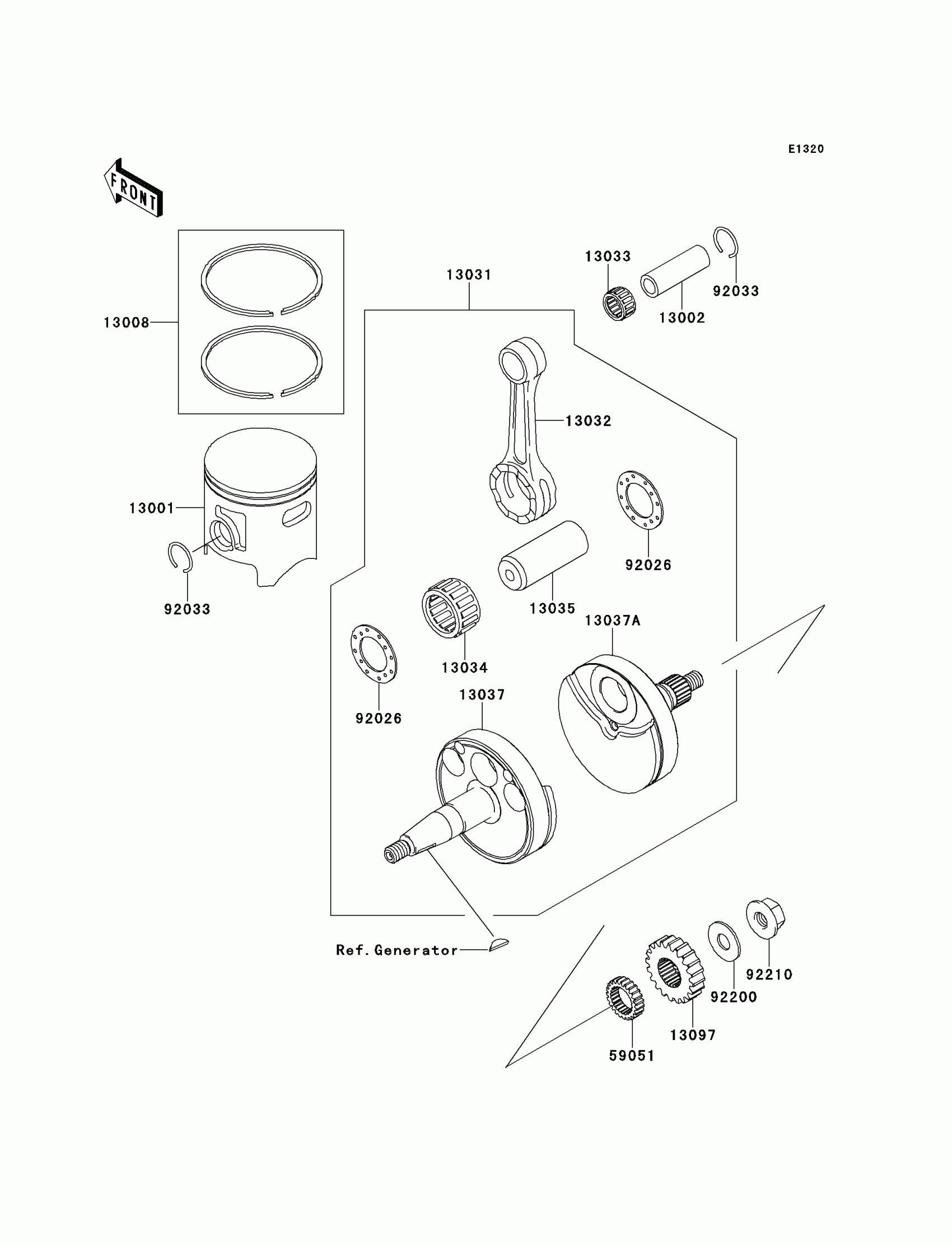

Find the part on the Crankshaft/piston diagram for your 2013 Kawasaki KX™85, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Kawasaki KX™85 Crankshaft/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13001

PISTON-ENGINE,B

13001-0006

1
Out of stock

13002

PIN-PISTON

13002-1079

1
Out of stock

13008

RING-SET-PISTON

13008-1200

1
Out of stock

13031

CRANKSHAFT-COMP

13031-0040

1
Out of stock

13032

ROD-CONNECTING

13032-1230

1
Out of stock

13033

BEARING-SMALL END

13033-1060

1
Out of stock

13034

BEARING-BIG END,SKTZ 222916EGS

13034-0013

1
Out of stock

13035

PIN-CRANK

13035-1054

1
Out of stock

13037

CRANKSHAFT,LH

13037-0050

1
Out of stock

13037A

CRANKSHAFT,RH

13037-0051

1
Out of stock

13097

GEAR-PRIMARY SPUR,20T

13097-1148

1
Out of stock

59051

GEAR-SPUR,PUMP,23T

59051-1146

1
Out of stock

92026

SPACER,22.2X37X1.0

92026-1136

1
Out of stock

92033

RING-SNAP

92033-0005

1
Out of stock

92200

WASHER,10.2X25X1.5

92200-0213

1
Out of stock

92210

NUT,FLANGED,M10XL1.25

92210-0215

1
Out of stock
