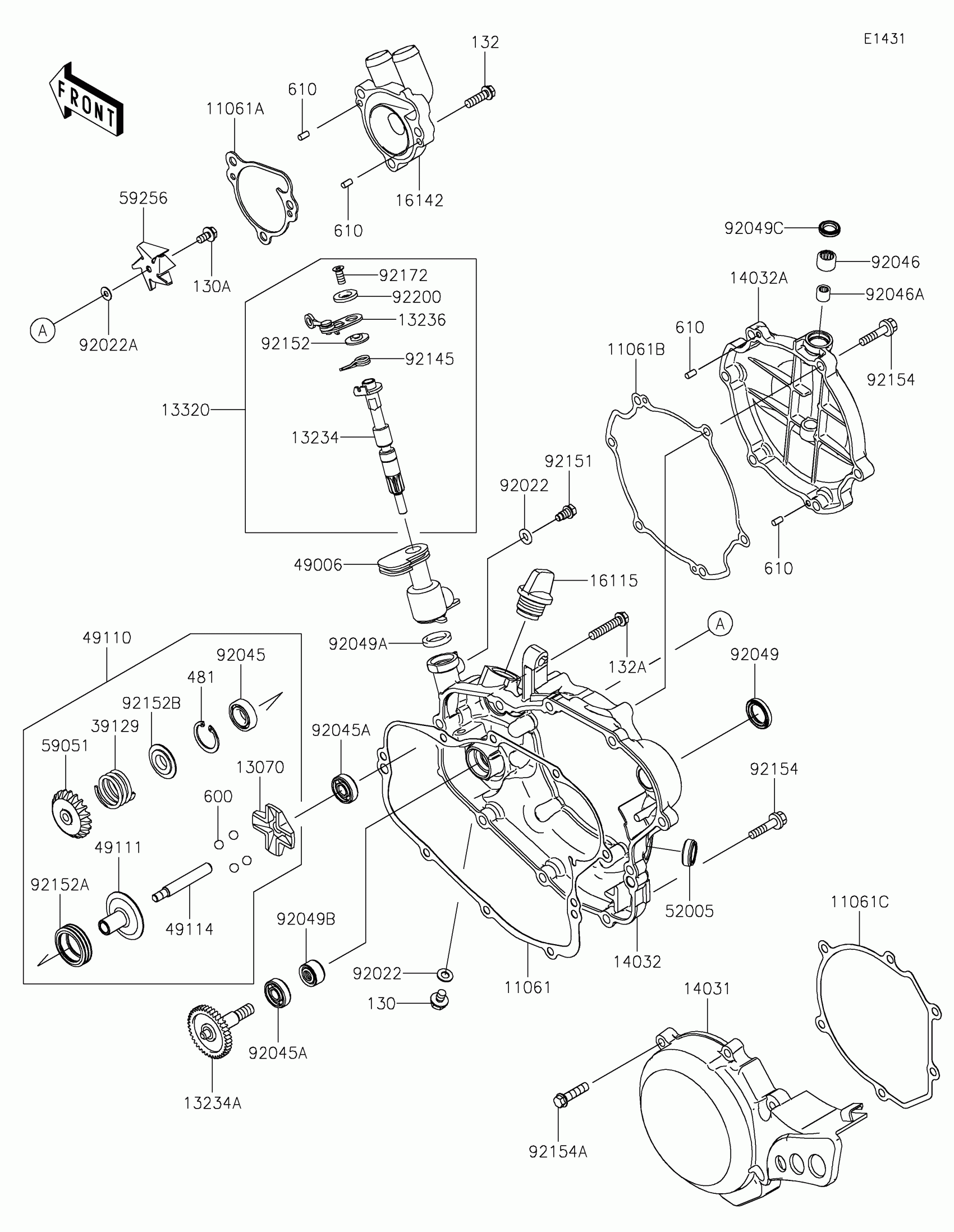

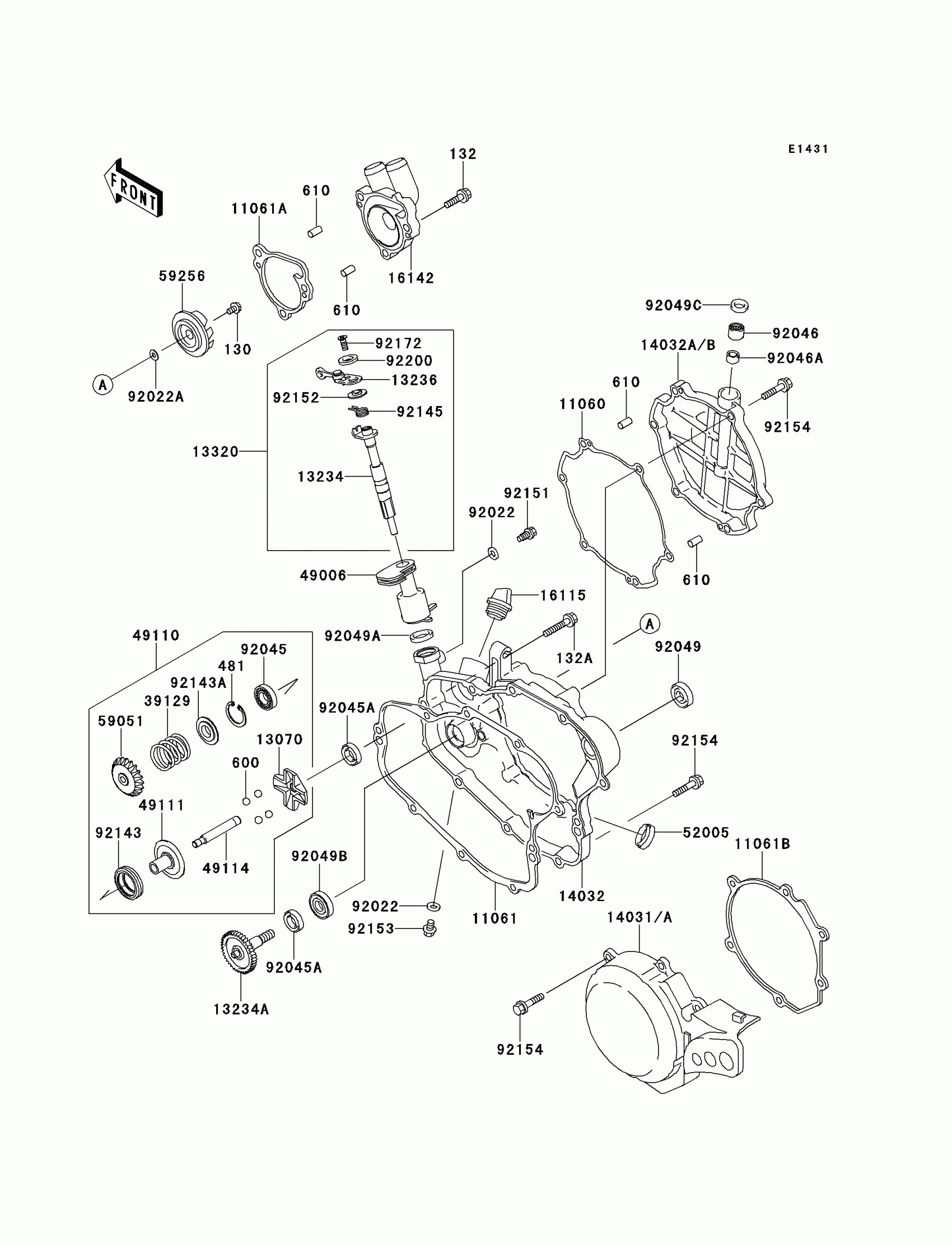

2013 Kawasaki KX™85 Engine Cover Diagram
Find the part on the Engine Cover diagram for your 2013 Kawasaki KX™85, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
Description
Qty in Assembly
Price
Status
Order Qty
13320
LEVER-ASSY
13320-0002
1
Out of stock
92046
BEARING-NEEDLE,HK1010FM
92046-1160
1
Out of stock
92046A
BEARING-NEEDLE,6BTM109
92046-1217
1
Out of stock
92049
SEAL-OIL,SB16244
92049-002
1
Out of stock
92049A
SEAL-OIL,AG0353-F0
92049-1262
1
Out of stock
92049B
SEAL-OIL,MHSD8X18X10J-1
92049-1366
1
Out of stock
92049C
SEAL-OIL,BG1408F0
92049-1414
1
Out of stock
92153
BOLT,FLANGED,6X8
92153-1005
1
Out of stock
92200
WASHER,LEVER
92200-0040
1
Out of stock
