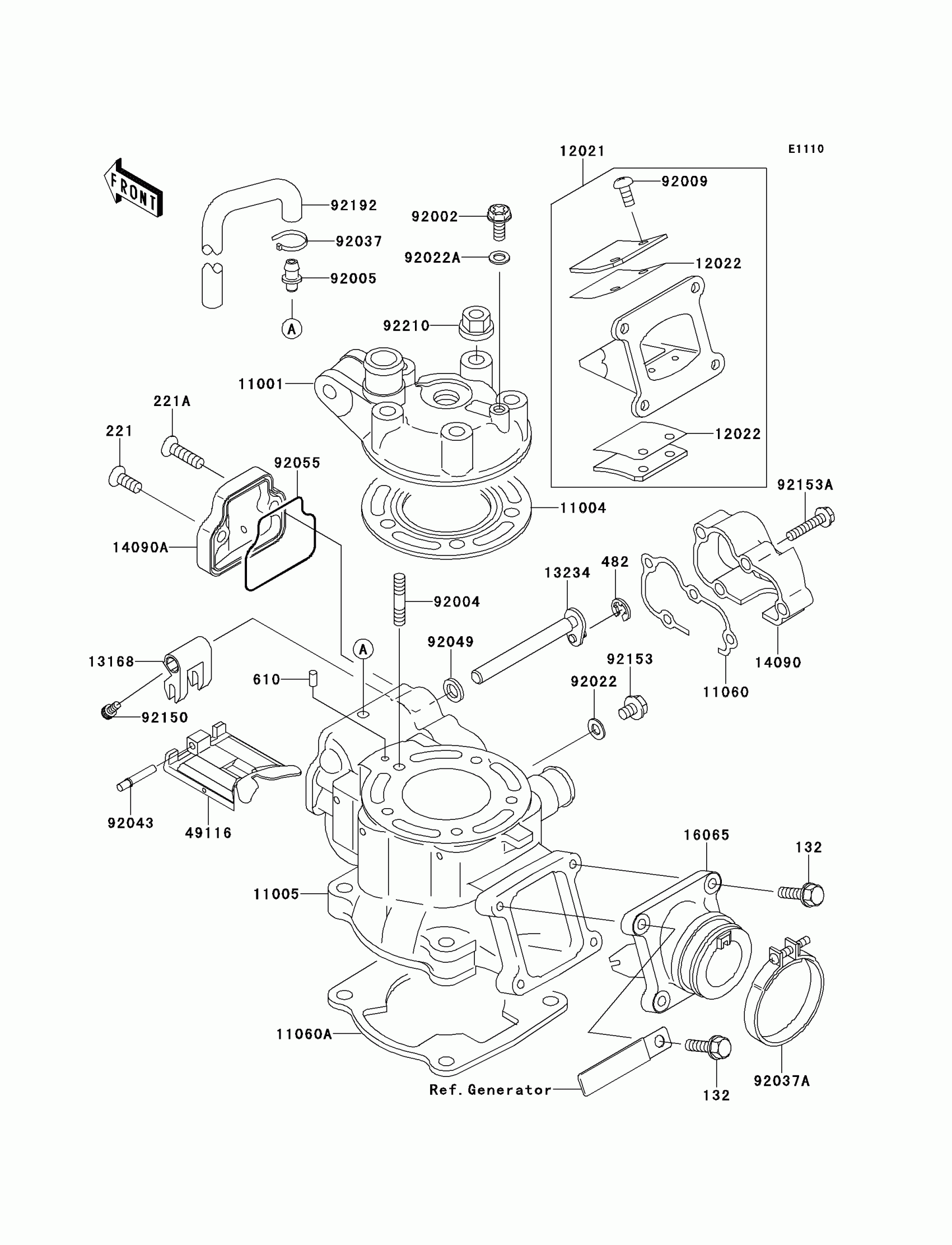

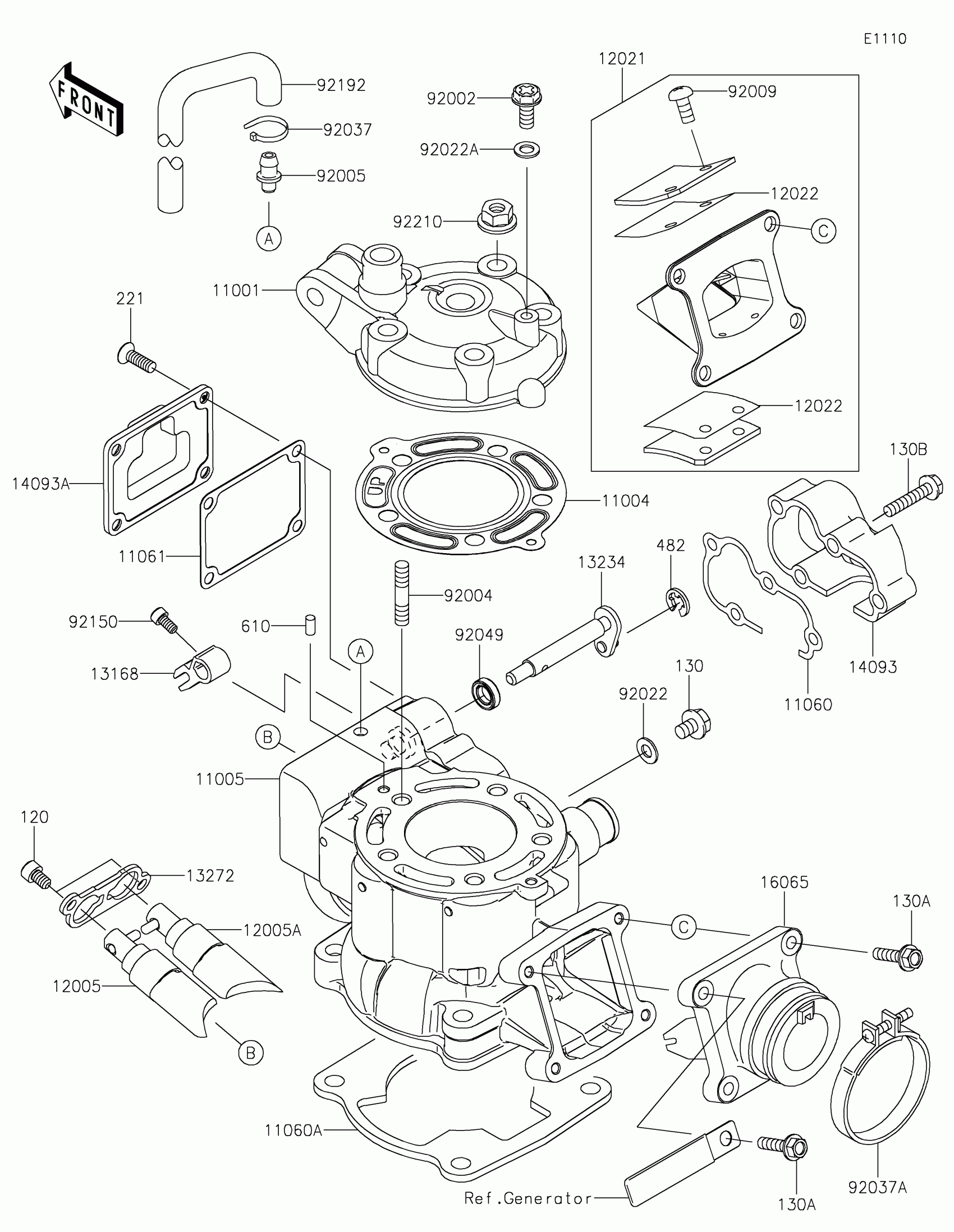

Kawasaki KX™85 Cylinder Head/Cylinder Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X20

132BC0620

$0.90

221

SCREW-CSK-CROS,6X16

221AA0616

$0.54

221A

SCREW-CSK-CROS,6X20

221AA0620

$1.71

482

CIRCLIP-TYPE-E,5MM

482J5000

$2.36

610

ROLLER,4X8

610A0408

$3.29

11001

HEAD-CYLINDER

11001-1539

$143.97

11004

GASKET-HEAD

11004-1360

$28.60

11005

CYLINDER-ENGINE

11005-0052

$576.65

11060

GASKET,GOVERNOR COVER

11060-1778

$4.42

11060A

GASKET,CYLINDER BASE

11060-1779

$5.77

12021

VALVE-ASSY-REED

12021-1123

$169.96

12022

VALVE-REED

12022-1084

$59.52

13168

LEVER,MAIN VALVE

13168-1499

$93.25

13234

SHAFT-COMP

13234-1105

$37.00

14090

COVER

14090-1811

$28.73

14090A

COVER

14090-1812

$23.63

16065

HOLDER-CARBURETOR

16065-1372

$57.67

49116

VALVE-ASSY

49116-1181

$149.87

92002

BOLT,6X10

92002-1222

$6.18

92004

STUD,8X33

92004-1253

$3.54

92005

FITTING

92005-0050

$10.74

92009

SCREW,REED VALVE

92009-1014

$2.05

92022

WASHER OIL PUMP BANJO

92022-077

$2.84

92022A

WASHER,6.2X11X1

92022-304

$2.76

92037

CLAMP

92037-1173

$2.58

92037A

CLAMP

92037-1843

$6.55

92043

PIN,MAIN VALVE

92043-1470

$3.74

92049

SEAL-OIL,SD088144

92049-1238

$7.96

92055

RING-O

92055-1566

$14.68

92150

BOLT,SOCKET,4X8

92150-1888

$2.30

92153

BOLT,FLANGED,6X8

92153-1005

Unavailable

92153A

BOLT,FLANGED,5X25

92153-1006

Unavailable

92192

TUBE,L=426.3

92192-0265

$14.25

92210

NUT,8MM

92210-0076

$4.15
