2023 Kawasaki KX™450X Throttle Diagram

← All diagrams

Find the part on the Throttle diagram for your 2023 Kawasaki KX™450X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

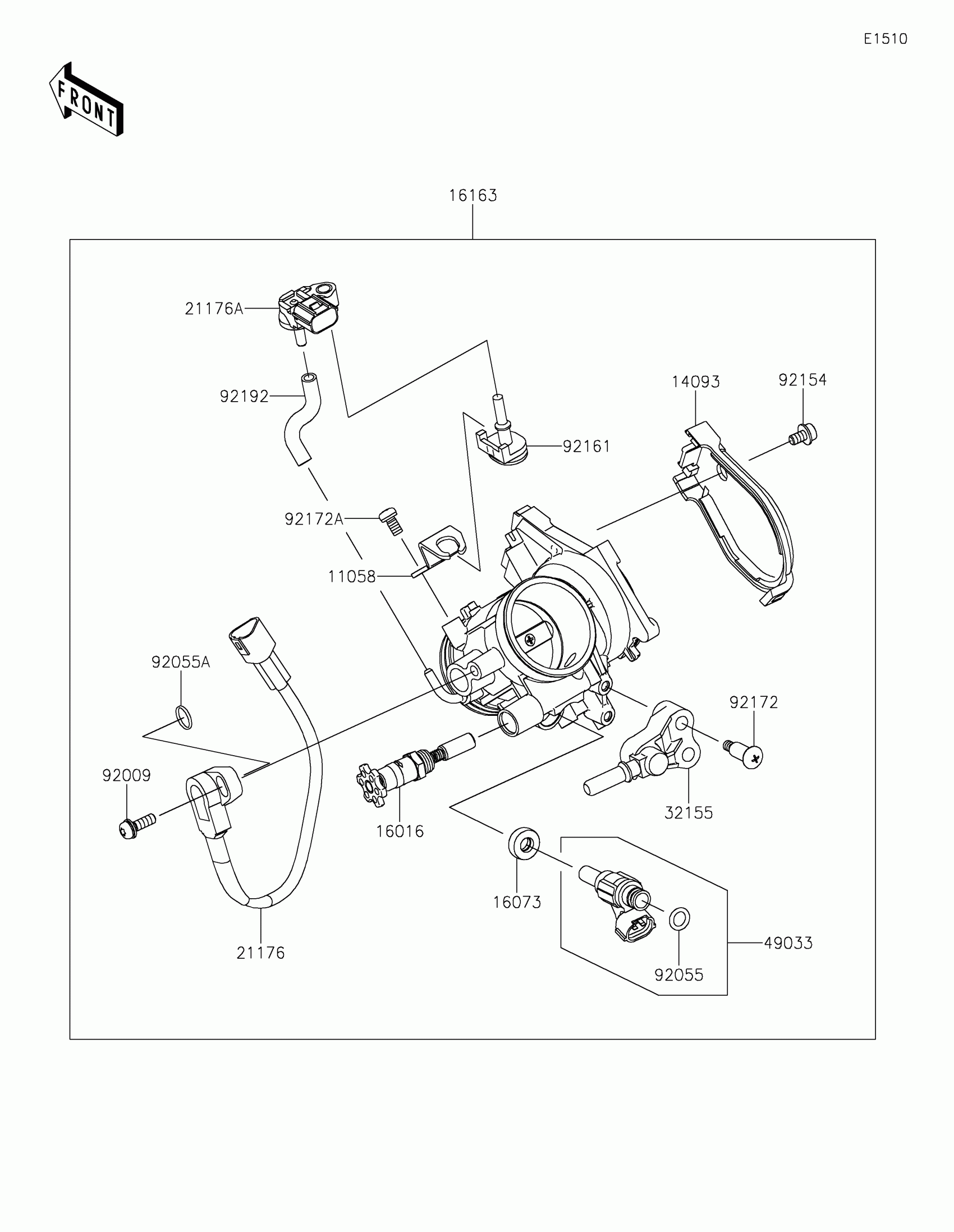

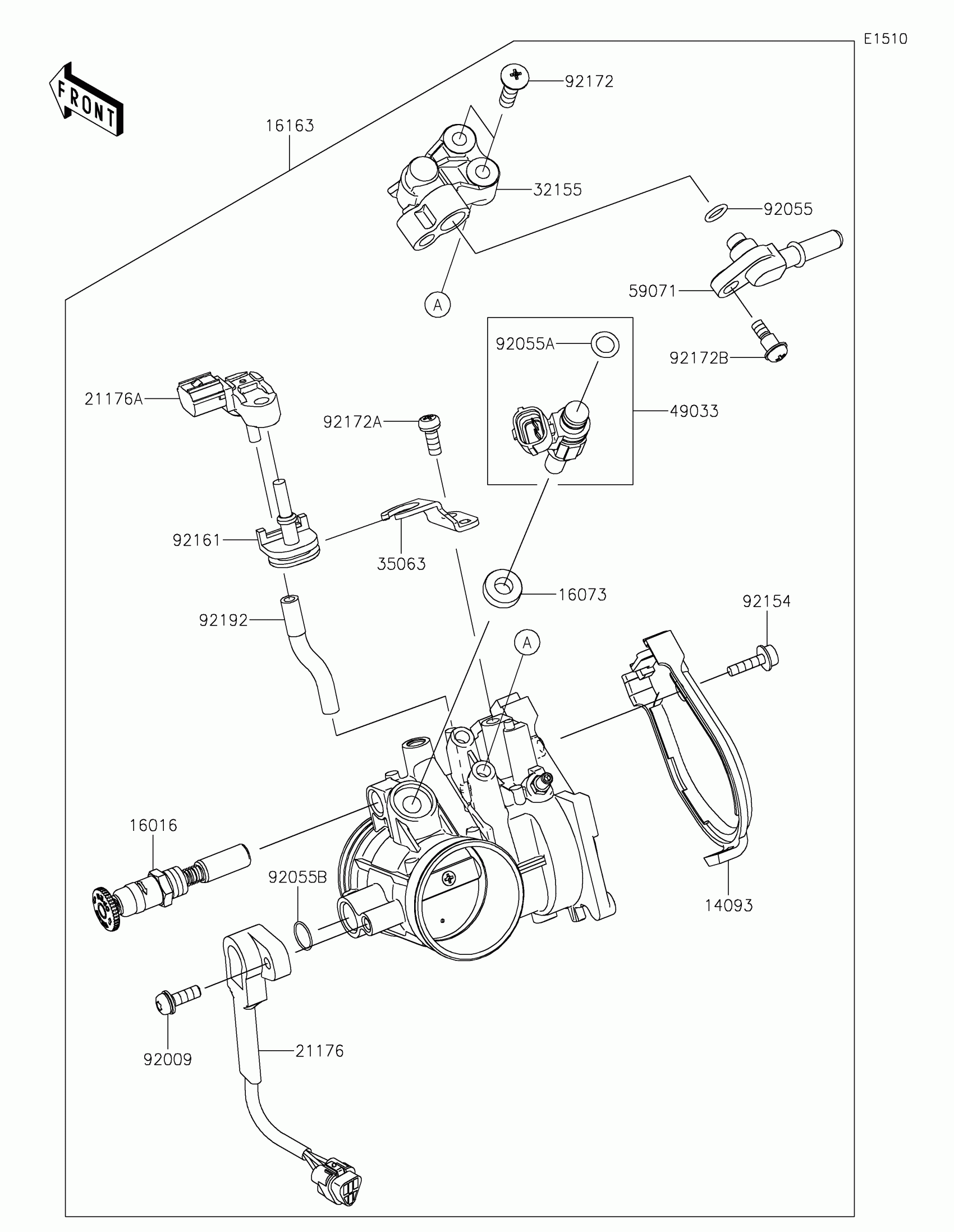

2023 Kawasaki KX™450X Throttle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14093

COVER,THROTTLE DUST

14093-0431

1

$25.20

In stock

16016

PLUNGER

16016-0026

1

$45.27

In stock

16073

INSULATOR

16073-0129

1

$4.75

In stock

16163

THROTTLE-ASSY

16163-1209

1

$732.98

In stock

21176

1

$192.98

In stock

21176A

SENSOR,PRESSURE

21176-0906

1

$226.99

In stock

32155

PIPE

32155-3835

1

$118.42

In stock

35063

STAY

35063-1471

1

$7.27

In stock

49033

NOZZLE-INJECTION

49033-0561

1

$135.42

In stock

59071

JOINT

59071-0760

1

$32.49

In stock

92009

SCREW,THROTTLE SENSOR

92009-1981

1
Out of stock

92055

RING-O

92055-0064

1
Out of stock

92055A

1

$2.42

In stock

92055B

RING-O

92055-1671

1

$3.29

In stock

92154

BOLT

92154-0133

1

$7.15

In stock

92161

DAMPER

92161-0673

1

$4.85

In stock

92172

1

$2.29

In stock

92172A

SCREW

92172-0393

1

$7.47

In stock

92172B

SCREW

92172-0776

1

$4.68

In stock

92192

TUBE

92192-1642

1
Out of stock
