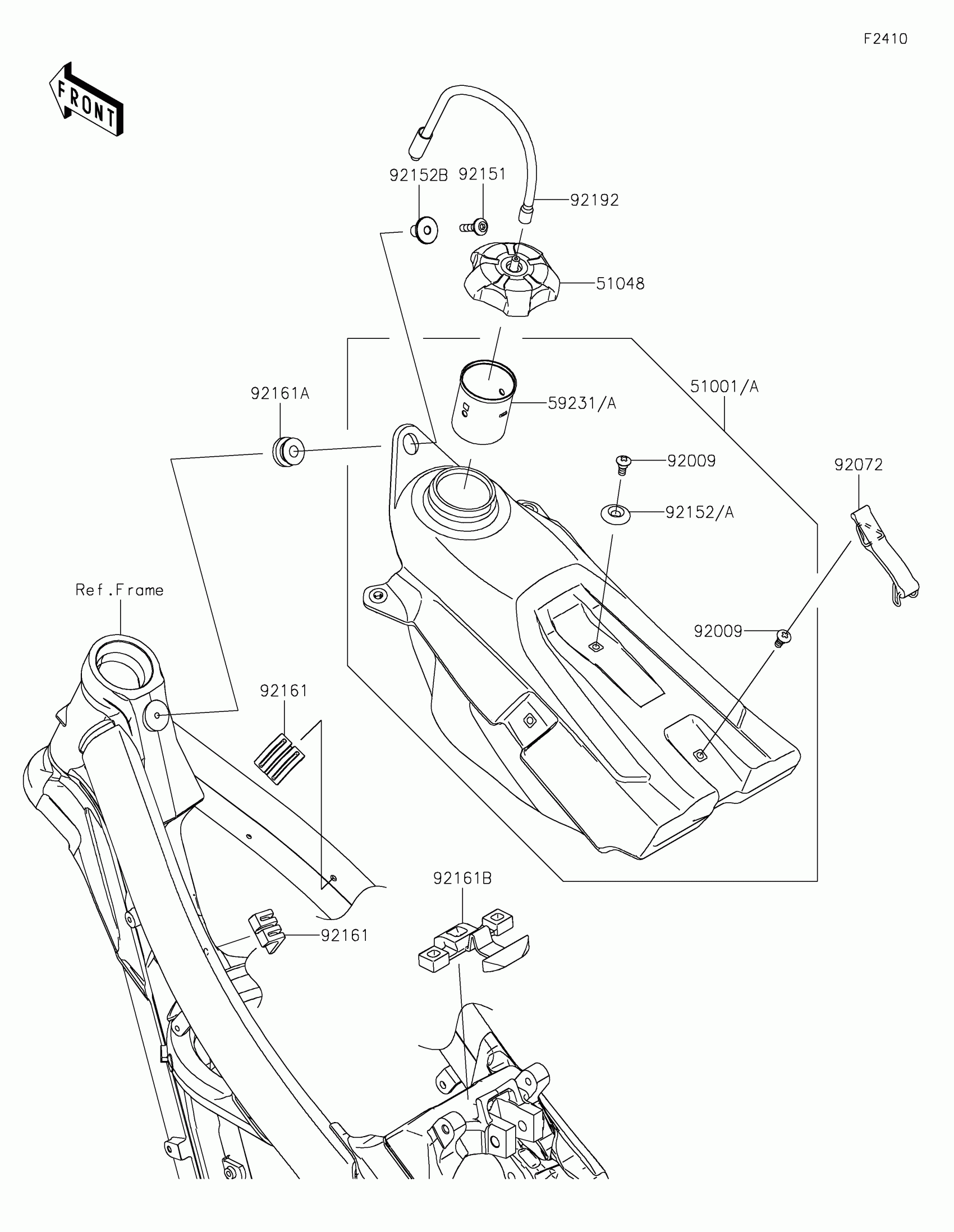

2023 Kawasaki KX™450X Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 2023 Kawasaki KX™450X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2023 Kawasaki KX™450X Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

51001A

TANK-COMP-FUEL

51001-0928

1

$597.59

In stock

51048

CAP-ASSY-TANK

51048-0576

1

$55.59

In stock

59231

FILLER

59231-0019

1

$5.80

In stock

92009

SCREW,6MM

92009-1971

1
Out of stock

92072

BAND,FUEL TANK

92072-0881

1

$16.92

In stock

92151

BOLT,SOCKET,6X25

92151-1611

1

$1.95

In stock

92152A

COLLAR

92152-1346

1

$3.33

In stock

92152B

COLLAR,6.5X10X18

92152-2456

1

$17.39

In stock

92161

1

$5.76

In stock

92161A

DAMPER,FUEL TANK,FR

92161-1914

1

$2.68

In stock

92161B

DAMPER,FUEL TANK,RR

92161-2384

1

$16.47

In stock

92192

TUBE

92192-0161

1
Out of stock
