2023 Kawasaki KX™450X Swingarm Diagram

← All diagrams

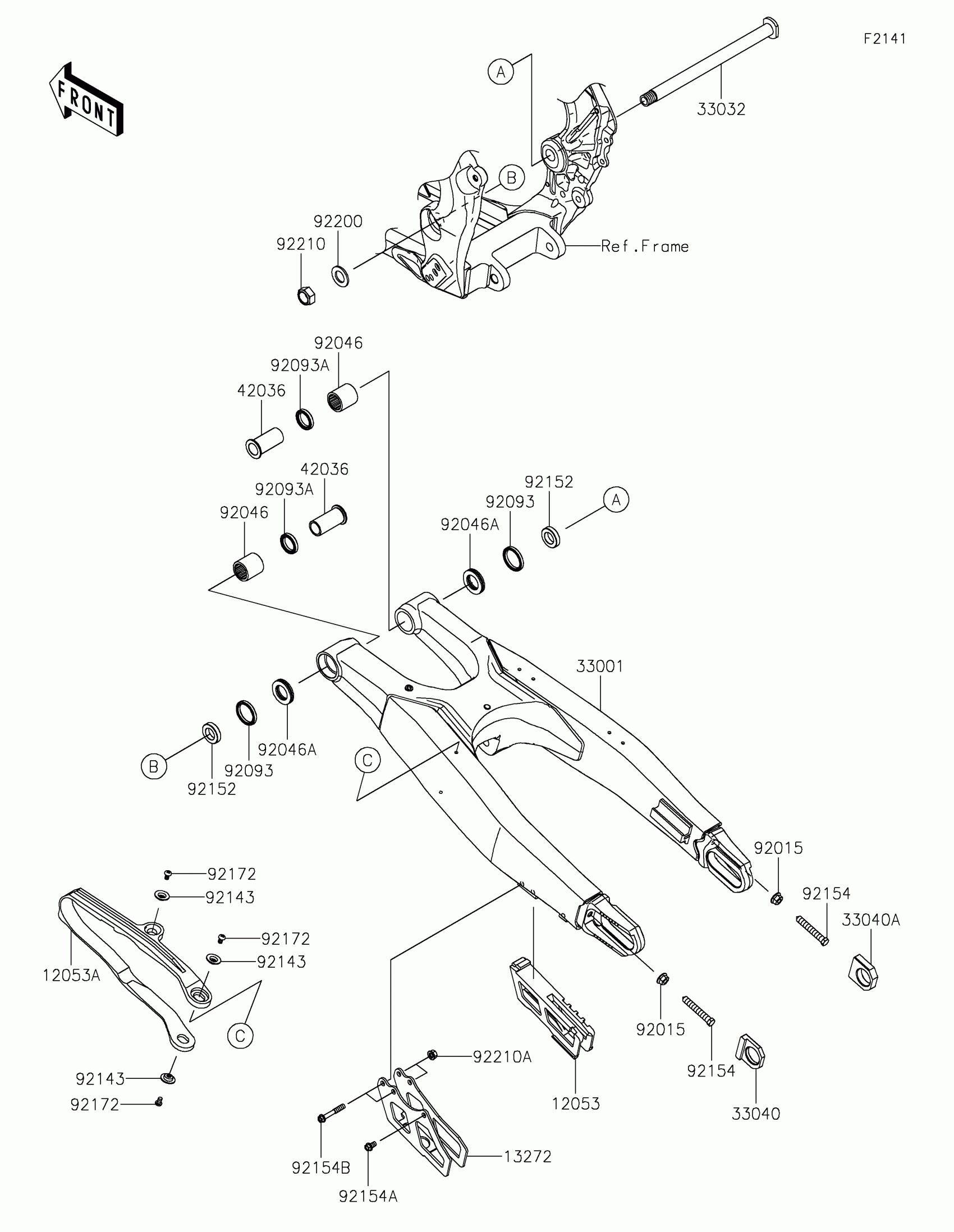

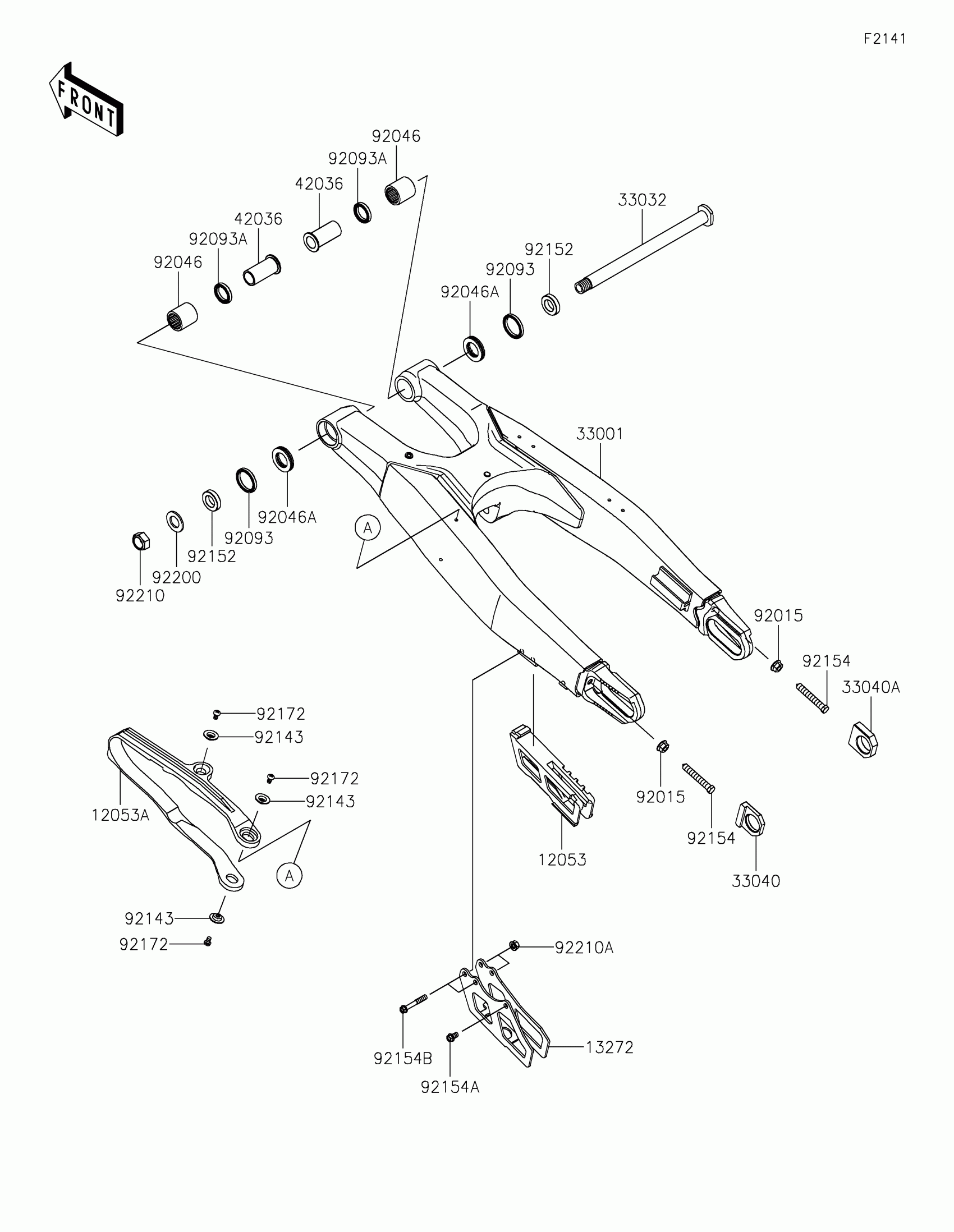

Find the part on the Swingarm diagram for your 2023 Kawasaki KX™450X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2023 Kawasaki KX™450X Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12053

GUIDE-CHAIN

12053-0125

1

$60.31

In stock

12053A

GUIDE-CHAIN

12053-0254

1

$87.93

In stock

13272

PLATE,CHAIN GUARD

13272-2485

1

$47.74

In stock

33001

ARM-COMP-SWING

33001-0713

1

$1,019.11

In stock

33032

SHAFT-SWING ARM

33032-0012

1

$48.76

In stock

33040

ADJUSTER-CHAIN,LH

33040-0050

1

$14.41

In stock

33040A

ADJUSTER-CHAIN,RH

33040-0080

1

$14.41

In stock

42036

SLEEVE,17X22X47.3

42036-0784

1

$28.97

In stock

92015

NUT,FLANGED,8MM

92015-1014

1
Out of stock

92046

BEARING-NEEDLE,TA2230Z

92046-1174

1
Out of stock

92046A

BEARING-NEEDLE,NTBR22356E01

92046-1240

1
Out of stock

92093

SEAL,SDO29X35X4.5

92093-1434

1

$7.24

In stock

92093A

SEAL,SDO22X29X5

92093-1435

1

$6.98

In stock

92143

COLLAR

92143-1676

1

$4.93

In stock

92152

COLLAR,17.1X29X6.7

92152-2222

1
Out of stock

92154

BOLT,8X50

92154-2957

1

$3.85

In stock

92154A

BOLT,6X10

92154-2963

1

$0.69

In stock

92154B

BOLT,6X40

92154-2968

1
Out of stock

92172

SCREW,5X8

92172-0119

1

$1.78

In stock

92200

WASHER,17.2X30X2.3

92200-0285

1
Out of stock

92210

NUT,LOCK,16MM

92210-0285

1
Out of stock

92210A

NUT,FLANGED,6MM

92210-0630

1
Out of stock
