2023 Kawasaki KX™450X Shock Absorber Diagram

← All diagrams

Find the part on the Shock Absorber diagram for your 2023 Kawasaki KX™450X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

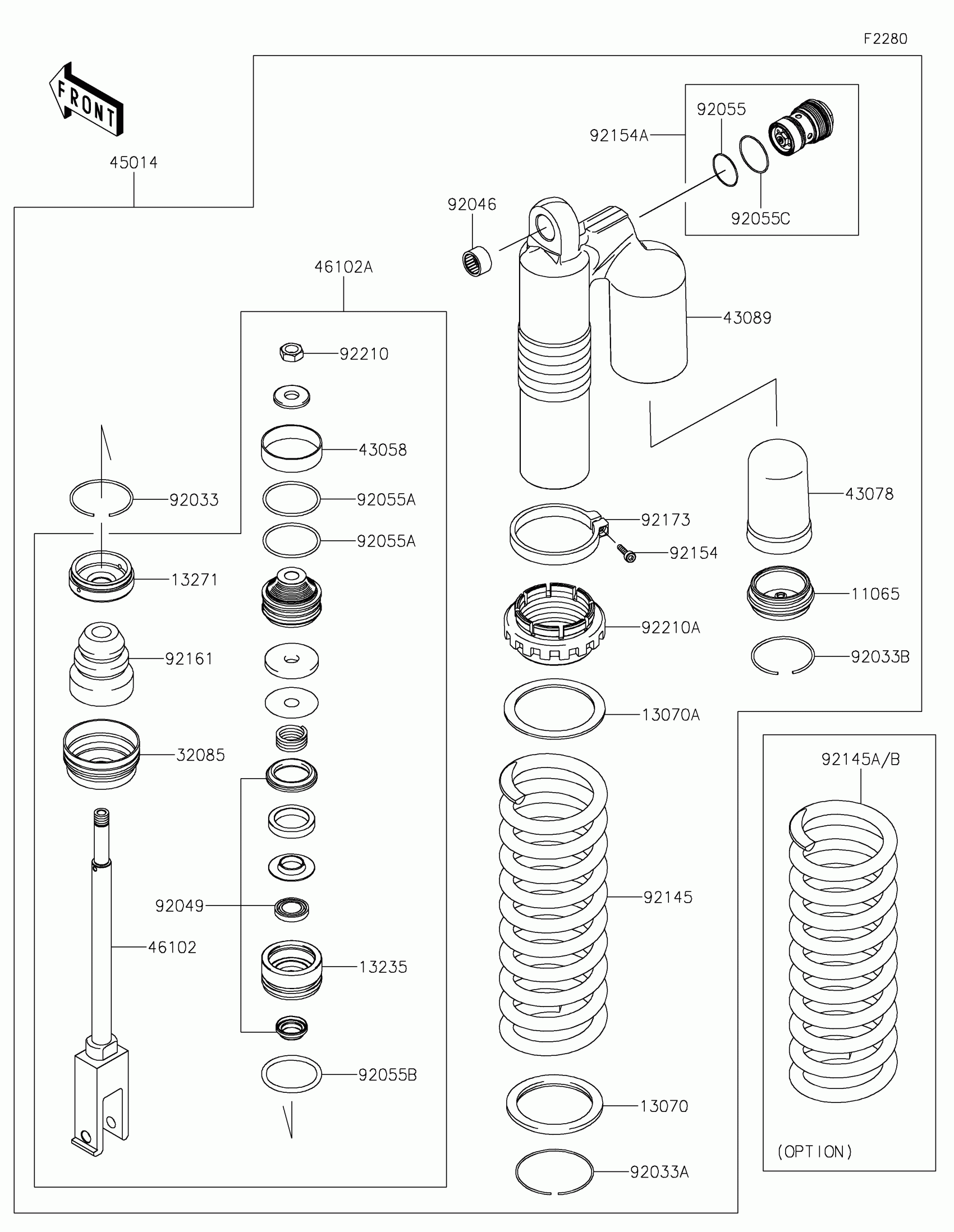

2023 Kawasaki KX™450X Shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP,CHAMBER

11065-1294

1

$47.49

In stock

13070

GUIDE,SPRING SEAT

13070-0057

1

$31.05

In stock

13070A

GUIDE

13070-0889

1

$31.16

In stock

13235

GUIDE-COMP,ROD

13235-0012

1

$44.47

In stock

13271

PLATE,END

13271-0858

1
Out of stock

32085

STOPPER,SPRING SEAT

32085-0077

1

$21.24

In stock

43058

RING,PISTON

43058-0012

1

$23.49

In stock

43078

RESERVOIR

43078-0599

1

$26.14

In stock

43089

1

$652.26

In stock

45014

SHOCKABSORBER

45014-0671

1

$1,315.07

In stock

46102

ROD,PISTON

46102-0625

1

$347.35

In stock

46102A

ROD

46102-0659

1

$492.93

In stock

92033

RING-SNAP

92033-0040

1

$4.32

In stock

92033A

RING-SNAP

92033-0042

1

$11.32

In stock

92033B

RING-SNAP

92033-0797

1

$2.37

In stock

92046

BEARING-NEEDLE,7E-HVS16X22X12

92046-1301

1
Out of stock

92049

SEAL-OIL

92049-0151

1
Out of stock

92055

RING-O,PLUG BOLT

92055-0098

1

$3.76

In stock

92055A

RING-O

92055-0100

1

$7.61

In stock

92055B

RING-O

92055-0101

1

$7.61

In stock

92055C

RING-O

92055-0911

1

$2.41

In stock

92145

1

$212.17

In stock

92145A

1

$212.17

In stock

92145B

1

$212.17

In stock

92154

BOLT

92154-3810

1

$1.27

In stock

92154A

BOLT,PLUG

92154-4218

1

$172.63

In stock

92161

DAMPER,STOPPER

92161-0329

1

$20.63

In stock

92173

CLAMP

92173-1902

1

$74.03

In stock

92210

NUT,PISTON

92210-0270

1
Out of stock

92210A

NUT

92210-1661

1

$45.11

In stock
