2023 Kawasaki KX™450X Rear Hub Diagram

← All diagrams

Find the part on the Rear Hub diagram for your 2023 Kawasaki KX™450X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

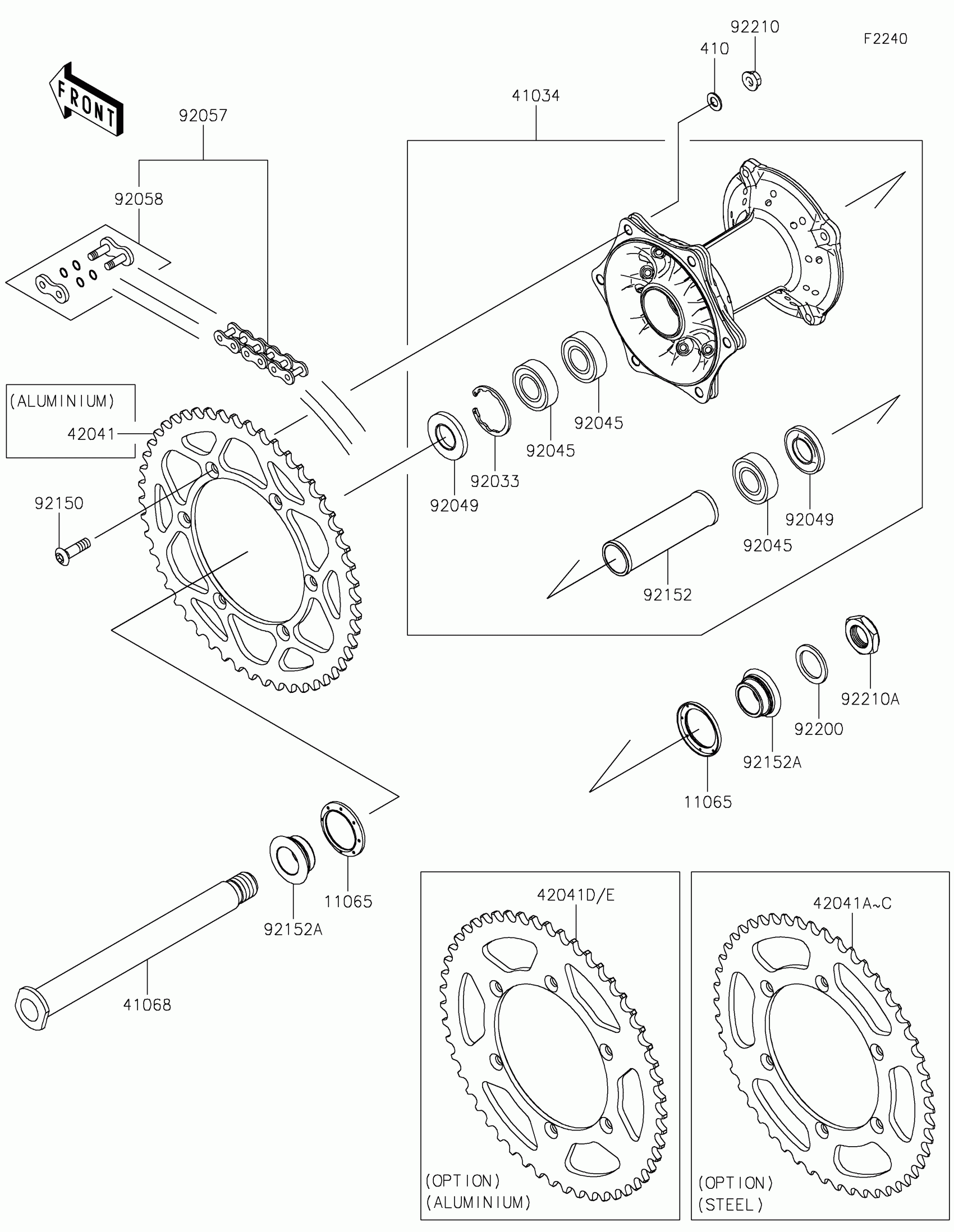

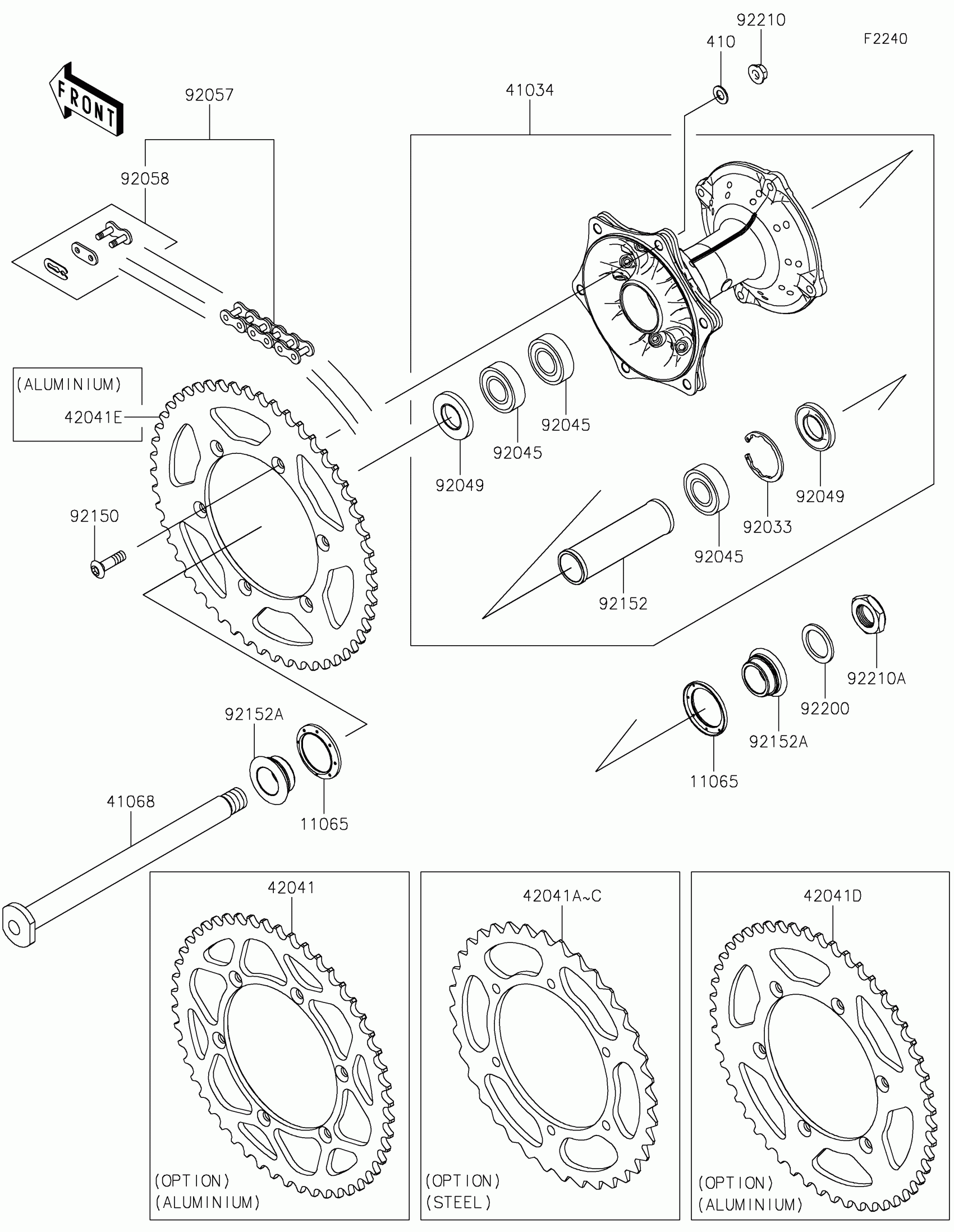

2023 Kawasaki KX™450X Rear Hub Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP,AXLE

11065-1298

1

$7.46

In stock

41034

1

$449.94

In stock

41068

AXLE,RR,L=255

41068-0597

1

$96.15

In stock

42041

SPROCKET-HUB,50T,AL

42041-0167

1

$187.09

In stock

42041A

1

$75.39

In stock

42041B

1

$72.32

In stock

42041C

1

$72.32

In stock

42041D

SPROCKET-HUB,49T,AL

42041-1449

1

$141.34

In stock

42041E

SPROCKET-HUB,51T,AL

42041-1451

1

$131.31

In stock

92033

RING-SNAP,42MM

92033-1041

1

$4.88

In stock

92045

1

$34.07

In stock

92049

SEAL-OIL

92049-1614

1
Out of stock

92057

1

$178.86

In stock

92058

JOINT-CHAIN,DRIVE

92058-1074

1

$9.49

In stock

92150

BOLT,SOCKET,8X28

92150-1978

1

$6.82

In stock

92152

1

$42.23

In stock

92152A

COLLAR,25.05X44X17

92152-2531

1

$29.61

In stock

92200

WASHER,22.5X35X2.3

92200-1623

1
Out of stock

92210

NUT,FLANGED,LOCK,8MM

92210-0493

1
Out of stock

92210A

NUT,SELF LOCK,22MM

92210-0939

1
Out of stock

410

1

$0.84

In stock
