2023 Kawasaki KX™450X Front Fork Diagram

← All diagrams

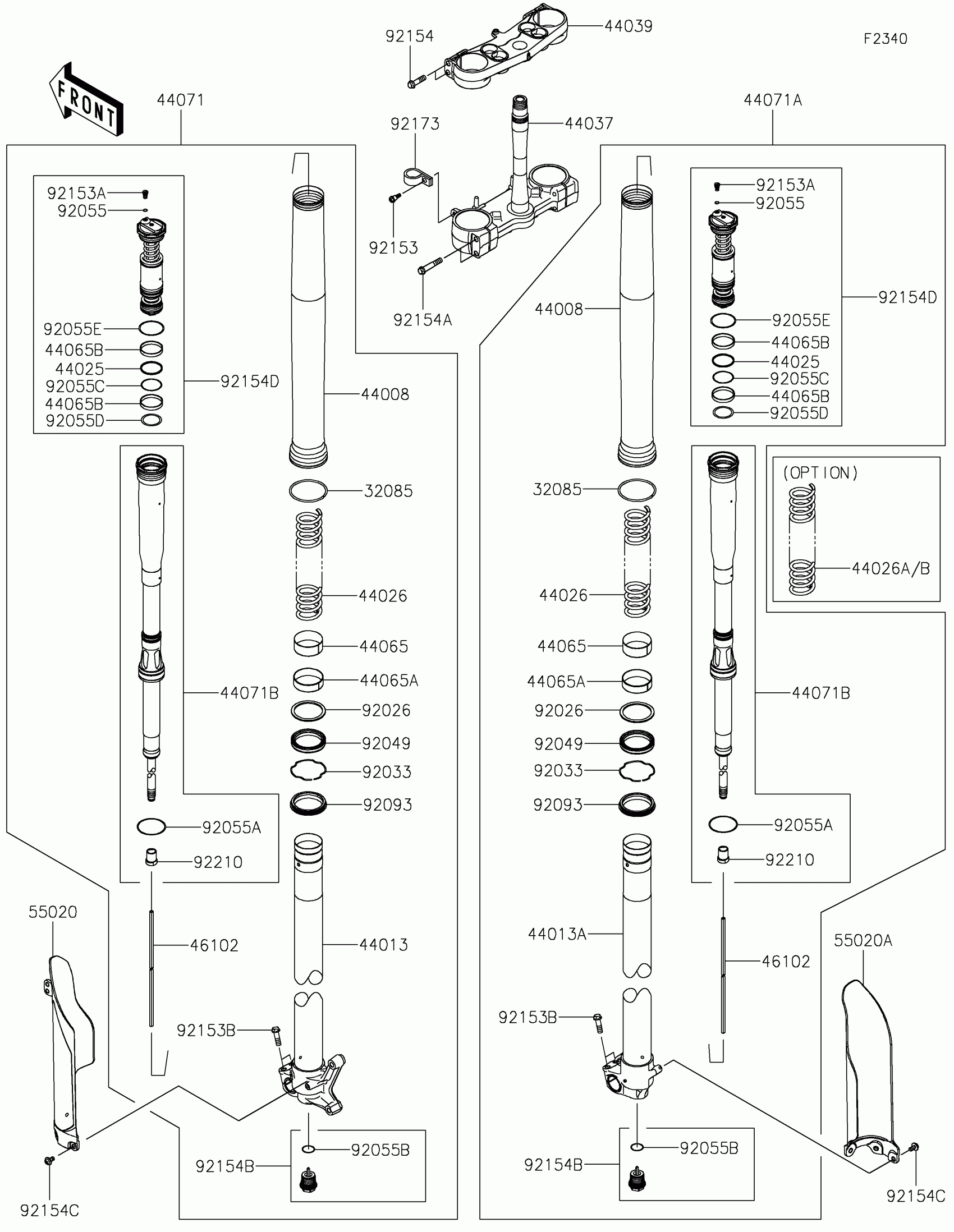

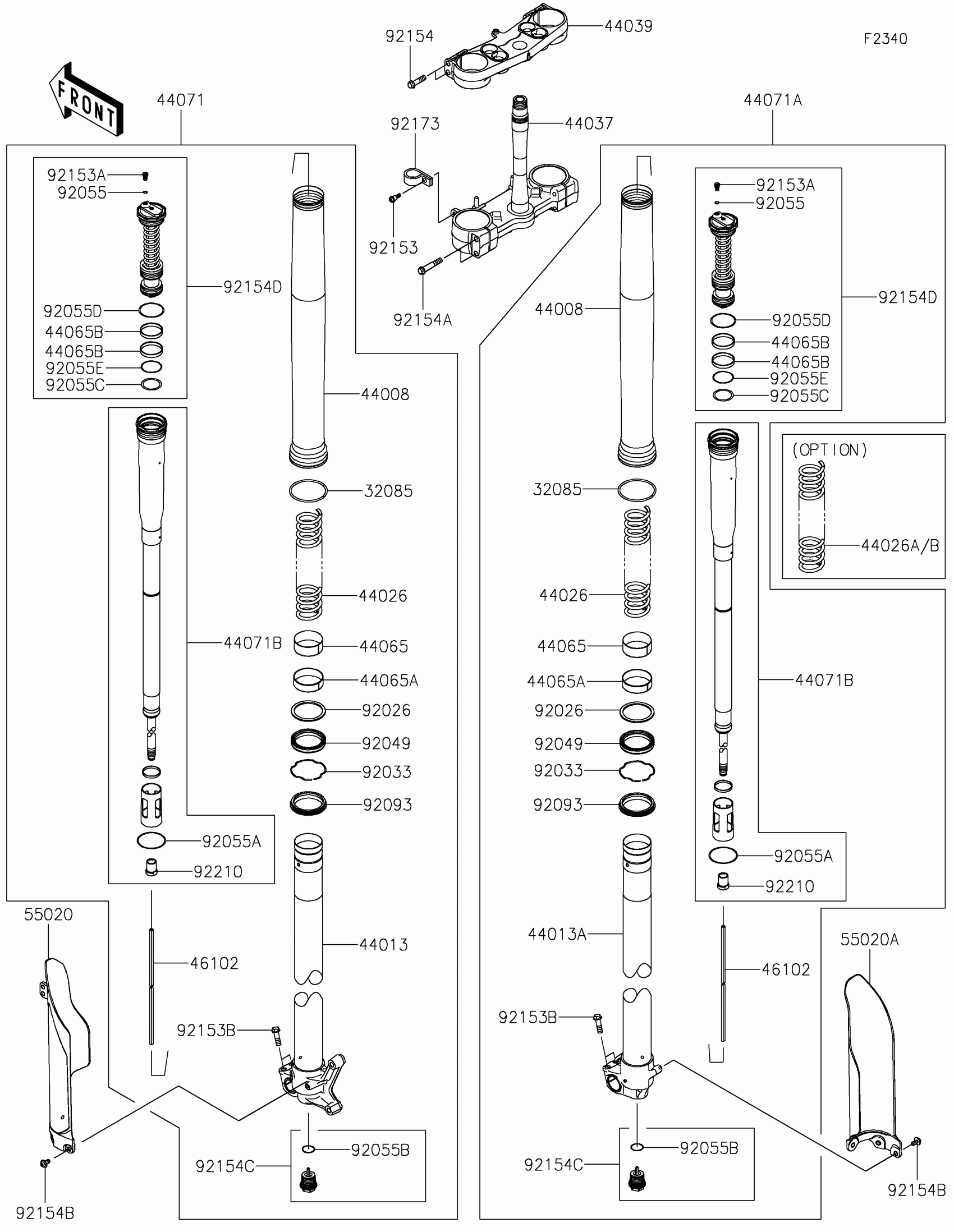

Find the part on the Front Fork diagram for your 2023 Kawasaki KX™450X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2023 Kawasaki KX™450X Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32085

STOPPER,RING

32085-0773

1

$5.25

In stock

44008

PIPE-FORK OUTER

44008-0086

1

$513.21

In stock

44013

PIPE-FORK INNER,LH

44013-0331

1

$401.77

In stock

44013A

PIPE-FORK INNER,RH

44013-0332

1

$401.77

In stock

44025

RING-FORK PISTON

44025-0010

1

$18.69

In stock

44026

1

$113.63

In stock

44026A

1

$113.63

In stock

44026B

1

$113.63

In stock

44037

1

$623.89

In stock

44039

1

$256.02

In stock

44065

BUSHING-FRONT FORK

44065-0049

1

$11.91

In stock

44065A

BUSHING-FRONT FORK

44065-0050

1

$13.75

In stock

44065B

BUSHING-FRONT FORK

44065-0062

1

$18.95

In stock

44071

DAMPER-ASSY,FORK,LH

44071-1429

1

$1,548.77

In stock

44071A

DAMPER-ASSY,FORK,RH

44071-1430

1

$1,548.77

In stock

44071B

DAMPER-ASSY,FORK

44071-1497

1

$471.24

In stock

46102

ROD

46102-0637

1

$13.47

In stock

55020

GUARD,FORK,LH,EBONY

55020-2231-6C

1

$57.05

In stock

55020A

GUARD,FORK,RH,EBONY

55020-2232-6C

1

$50.52

In stock

92026

SPACER,SEAL

92026-0785

1
Out of stock

92033

RING-SNAP

92033-0751

1

$5.39

In stock

92049

SEAL-OIL

92049-0768

1
Out of stock

92055

RING-O

92055-0094

1

$2.42

In stock

92055A

RING-O

92055-0744

1

$3.27

In stock

92055B

RING-O

92055-0804

1

$1.44

In stock

92055C

RING-O

92055-0805

1

$4.19

In stock

92055D

RING-O

92055-0806

1

$1.93

In stock

92055E

RING-O

92055-0807

1

$4.95

In stock

92093

SEAL

92093-0657

1

$20.01

In stock

92153

BOLT,FLANGED

92153-1397

1
Out of stock

92153A

BOLT,PLUG

92153-1398

1
Out of stock

92153B

BOLT,FLANGED,8X40

92153-1399

1
Out of stock

92154

BOLT

92154-0463

1

$3.93

In stock

92154A

BOLT

92154-0464

1

$3.20

In stock

92154B

BOLT,CNT

92154-2286

1

$39.58

In stock

92154C

BOLT

92154-3776

1

$4.69

In stock

92154D

BOLT,FORK

92154-4219

1

$230.70

In stock

92173

CLAMP

92173-1579

1

$14.58

In stock

92210

NUT,LOCK

92210-0922

1
Out of stock
