2023 Kawasaki KX™450X Radiator Diagram

← All diagrams

Find the part on the Radiator diagram for your 2023 Kawasaki KX™450X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

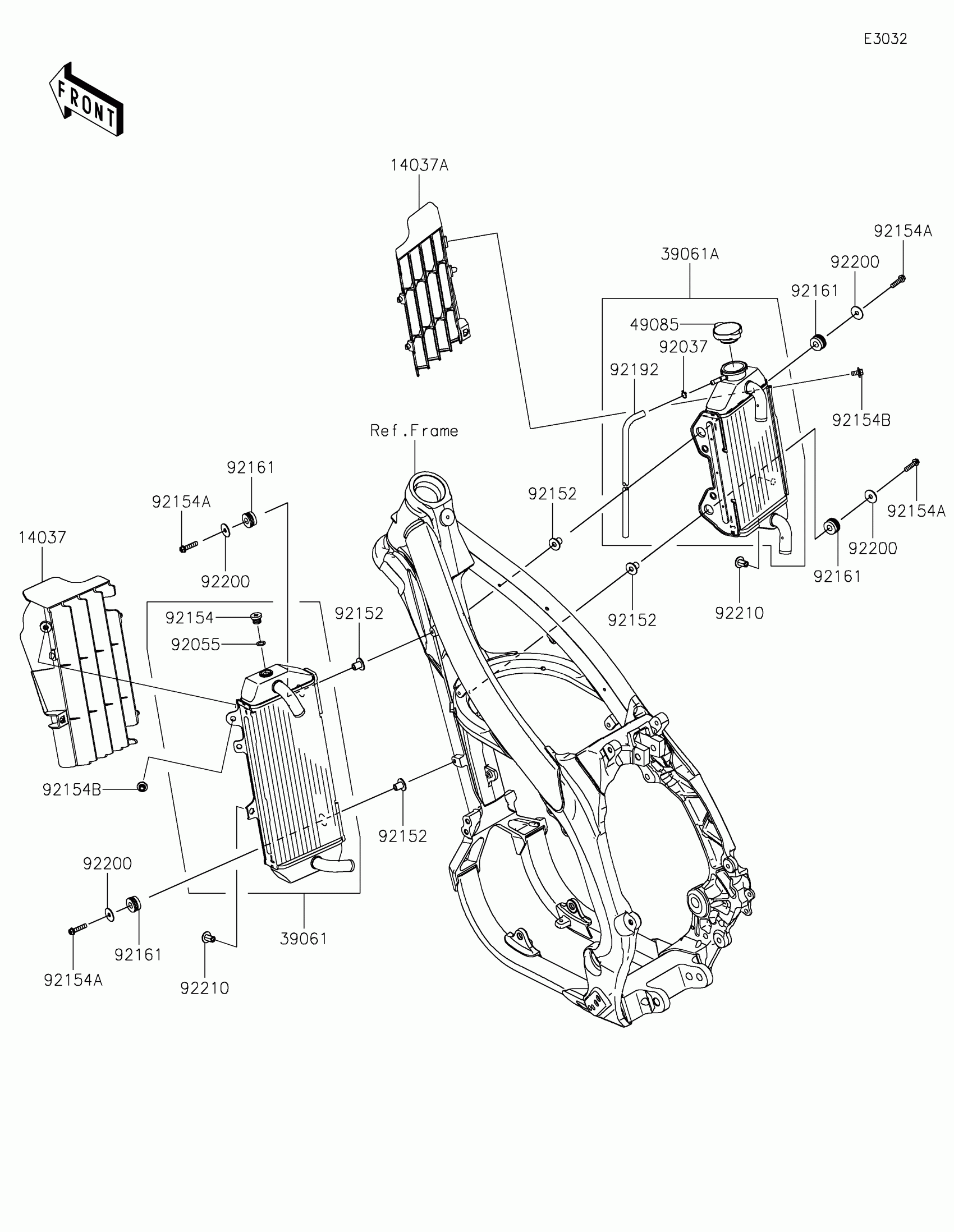

2023 Kawasaki KX™450X Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14037

SCREEN,LH,EBONY

14037-0767-6C

1

$30.45

In stock

14037A

SCREEN,RH,EBONY

14037-0768-6C

1

$30.45

In stock

39061

RADIATOR-ASSY,LH

39061-0709

1

$394.38

In stock

39061A

RADIATOR-ASSY,RH

39061-0710

1

$421.87

In stock

49085

CAP-ASSY-PRESSURE

49085-0006

1

$45.73

In stock

92037

CLAMP

92037-1610

1

$1.64

In stock

92055

RING-O

92055-0866

1

$4.97

In stock

92152

COLLAR

92152-0666

1

$5.35

In stock

92154

BOLT,AIR VENT

92154-1738

1

$2.44

In stock

92154A

BOLT,FLANGED,6X25

92154-2967

1

$0.88

In stock

92154B

BOLT,FLANGED,6X12

92154-2970

1

$0.88

In stock

92161

DAMPER

92161-1950

1

$4.31

In stock

92192

TUBE,L=830

92192-1490

1
Out of stock

92200

WASHER,6.5X22X1.2

92200-2108

1
Out of stock

92210

NUT

92210-1452

1
Out of stock
