2023 Kawasaki KX™450X Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2023 Kawasaki KX™450X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

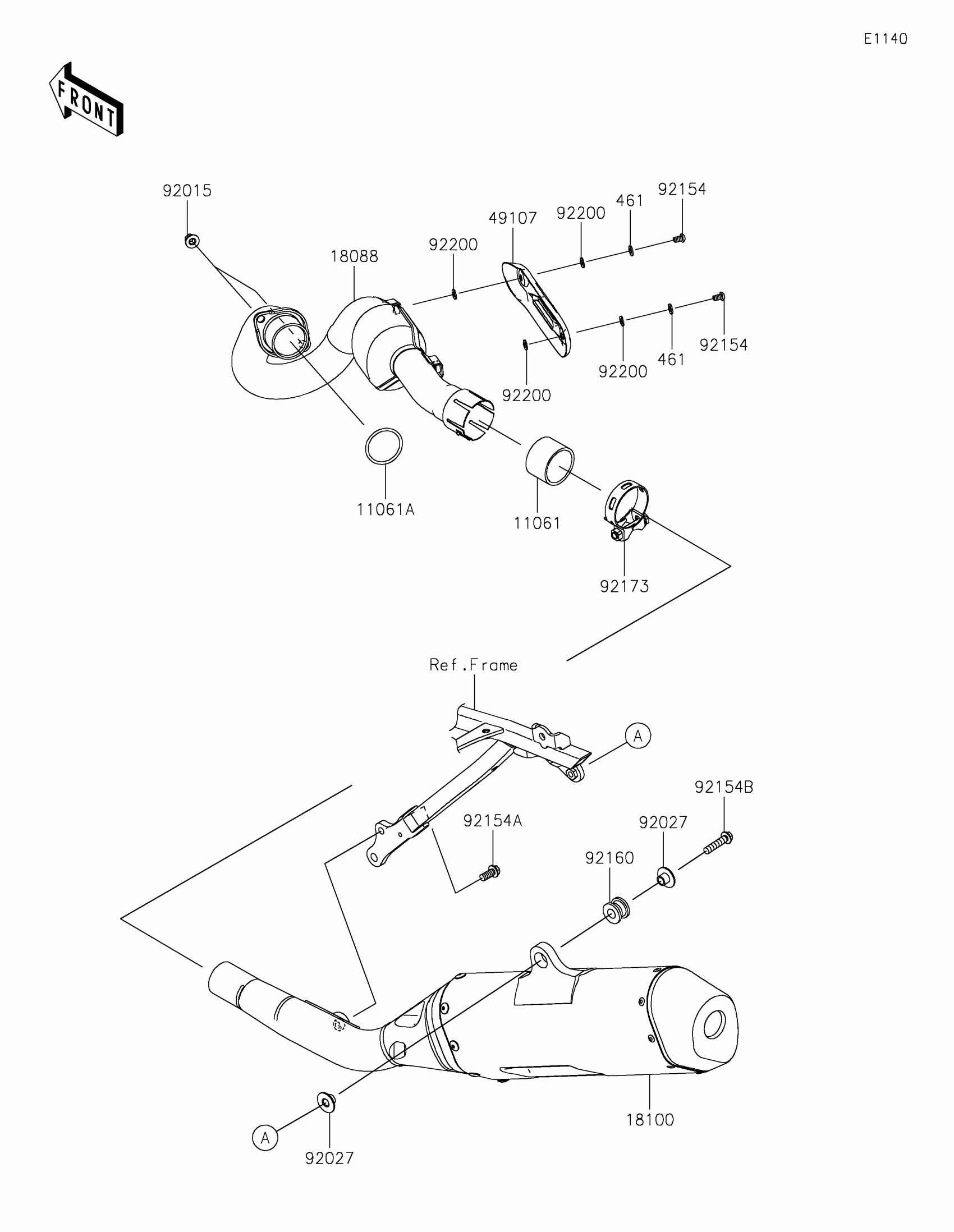

2023 Kawasaki KX™450X Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,CONNECTING

11061-1278

1

$20.76

In stock

11061A

GASKET,40X46.4X3

11061-1297

1

$7.47

In stock

18088

PIPE-EXHAUST

18088-1465

1

$391.11

In stock

18100

BODY-ASSY-MUFFLER

18100-0601

1

$963.95

In stock

49107

COVER-EXHAUST PIPE

49107-0812

1

$60.91

In stock

92015

NUT,8MM

92015-1402

1

$3.72

In stock

92027

1

$8.16

In stock

92154

BOLT,TORX,6X10

92154-1938

1

$1.10

In stock

92154A

BOLT,FLANGED,8X18

92154-2984

1

$1.10

In stock

92154B

BOLT,FLANGED,8X35

92154-2985

1

$1.27

In stock

92160

1

$4.37

In stock

92173

CLAMP

92173-1859

1

$19.49

In stock

92200

WASHER,5.9X12X1.2

92200-1826

1
Out of stock

461

1

$0.97

In stock
