2023 Kawasaki KX™450SR Shock Absorber Diagram

← All diagrams

Find the part on the Shock Absorber diagram for your 2023 Kawasaki KX™450SR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

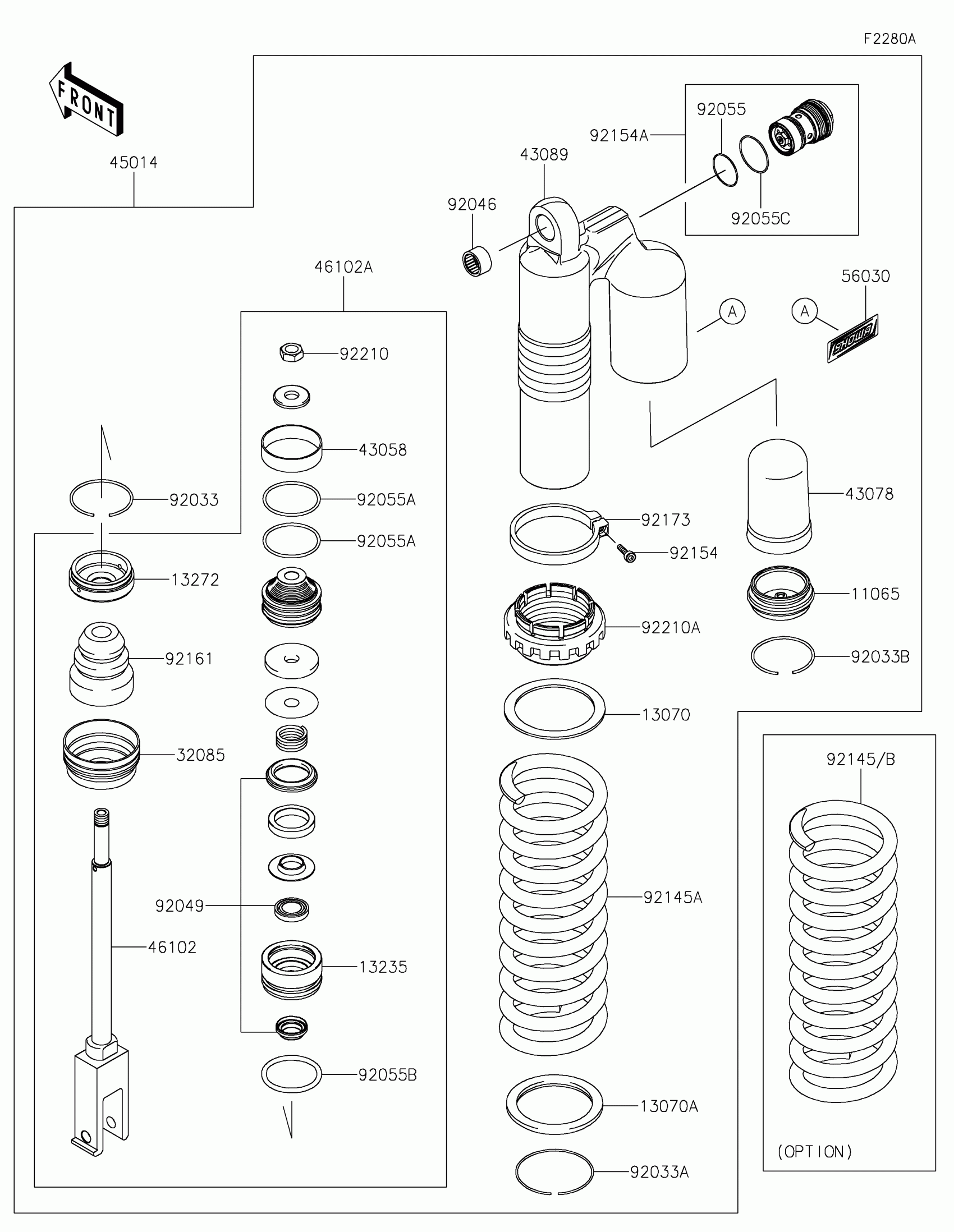

2023 Kawasaki KX™450SR Shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP,CHAMBER

11065-1448

1
Out of stock

13070

GUIDE

13070-1440

1
Out of stock

13070A

GUIDE,SPRING SEAT

13070-1441

1
Out of stock

13235

GUIDE-COMP,ROD

13235-0012

1
Out of stock

13272

PLATE,END

13272-4203

1
Out of stock

32085

STOPPER,SPRING SEAT

32085-0911

1
Out of stock

43058

RING,PISTON

43058-0012

1
Out of stock

43078

RESERVOIR

43078-0599

1
Out of stock

43089

CYLINDER-SHOCKABSORBER

43089-0038

1
Out of stock

45014

SHOCKABSORBER

45014-0774

1
Out of stock

46102

ROD,PISTON COMP

46102-0677

1
Out of stock

46102A

ROD,PISTON

46102-0678

1
Out of stock

56030

LABEL,SHOWA

56030-1845

1
Out of stock

92033

RING-SNAP

92033-0040

1
Out of stock

92033A

RING-SNAP

92033-0042

1
Out of stock

92033B

RING-SNAP

92033-0797

1
Out of stock

92046

BEARING-NEEDLE,7E-HVS16X22X12

92046-1301

1
Out of stock

92049

SEAL-OIL

92049-0151

1
Out of stock

92055

RING-O,PLUG BOLT

92055-0098

1
Out of stock

92055A

RING-O

92055-0100

1
Out of stock

92055B

RING-O

92055-0101

1
Out of stock

92055C

RING-O

92055-0911

1
Out of stock

92145

SPRING,REAR SHOCK,K=52N/MM,BLK

92145-1746-10

1
Out of stock

92145A

SPRING,REAR SHOCK,K=54N/MM,BLK

92145-1759-10

1
Out of stock

92145B

SPRING,REAR SHOCK,K=56N/MM,BLK

92145-1830-10

1
Out of stock

92154

BOLT

92154-3810

1
Out of stock

92154A

BOLT,PLUG

92154-7122

1
Out of stock

92161

DAMPER,STOPPER

92161-0329

1
Out of stock

92173

CLAMP

92173-2633

1
Out of stock

92210

NUT,PISTON

92210-0270

1
Out of stock

92210A

NUT

92210-1661

1
Out of stock
