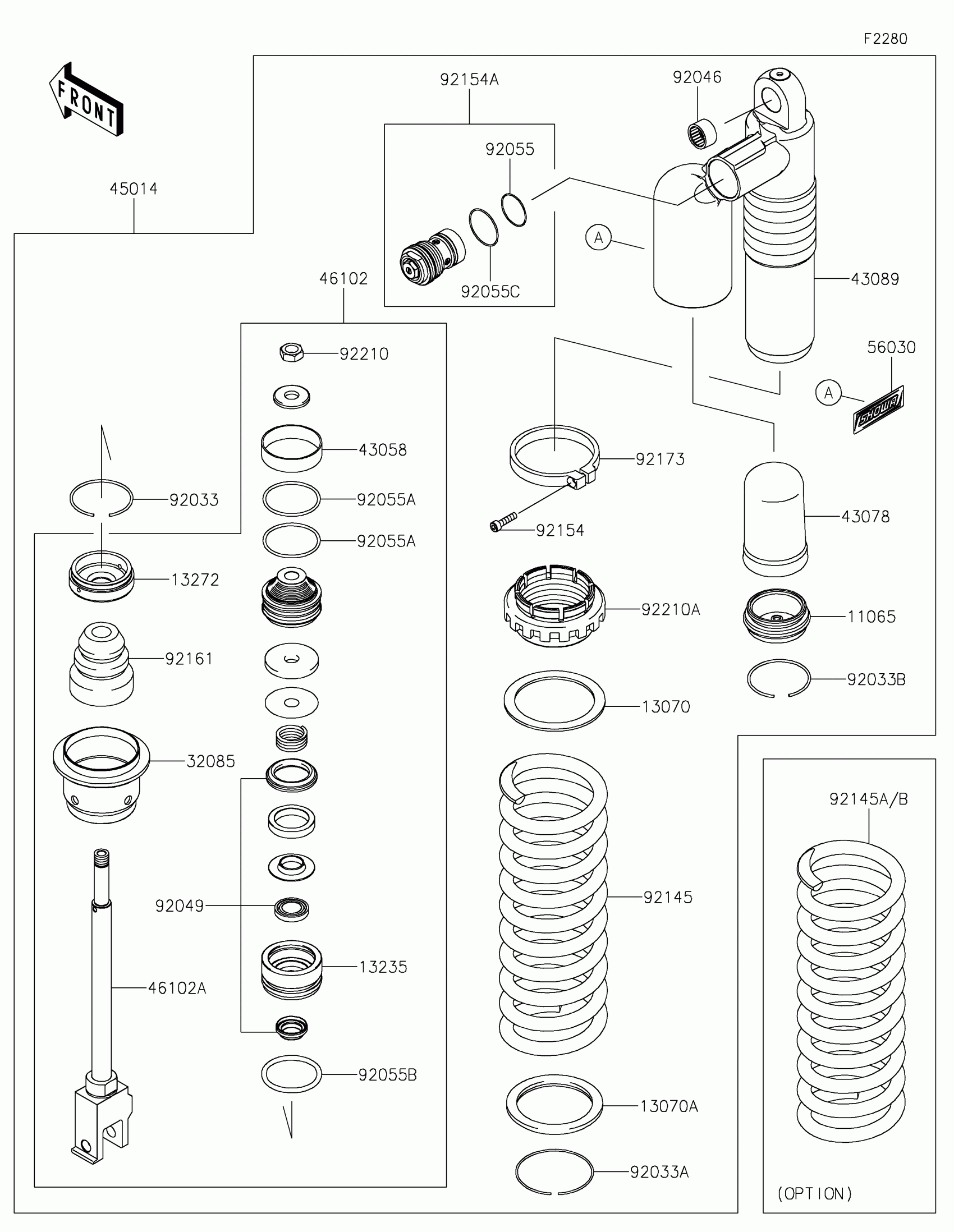

Kawasaki KX™450SR Shock Absorber(s) Diagram

#

Description
Price

11065

CAP,CHAMBER

11065-1448

$56.85

13070

GUIDE

13070-1440

$38.09

13070A

GUIDE,SPRING SEAT

13070-1441

$34.98

13235

GUIDE-COMP,ROD

13235-0012

$44.47

13272

PLATE,END

13272-4203

$32.41

32085

STOPPER,SPRING SEAT

32085-0934

$26.54

43058

RING,PISTON

43058-0012

$23.49

43078

RESERVOIR

43078-0599

$26.14

43089

CYLINDER-SHOCKABSORBER

43089-0040

$813.38

45014

SHOCKABSORBER

45014-0889

$1,753.80

46102

ROD,PISTON COMP

46102-0701

$428.08

46102A

ROD,PISTON

46102-0702

$615.25

56030

LABEL,SHOWA

56030-1845

$29.99

92033

RING-SNAP

92033-0040

$4.32

92033A

RING-SNAP

92033-0042

$11.32

92033B

RING-SNAP

92033-0797

$2.37

92046

BEARING-NEEDLE,7E-HVS16X22X12

92046-1301

$14.73

92049

SEAL-OIL

92049-0151

$40.56

92055

RING-O,PLUG BOLT

92055-0098

$3.76

92055A

RING-O

92055-0100

$7.61

92055B

RING-O

92055-0101

$7.61

92055C

RING-O

92055-0911

$2.41

92145

SPRING,REAR SHOCK,K=54N/MM,BLK

92145-2302-10

$212.17

92145A

SPRING,REAR SHOCK,K=52N/MM,BLK

92145-2316-10

$212.17

92145B

SPRING,REAR SHOCK,K=56N/MM,BLK

92145-2358-10

$212.17

92154

BOLT

92154-3810

$1.09

92154A

BOLT,PLUG

92154-7664

$213.37

92161

DAMPER,STOPPER

92161-0329

$20.63

92173

CLAMP

92173-2633

$92.07

92210

NUT,PISTON

92210-0270

$4.14

92210A

NUT

92210-1661

$45.11
