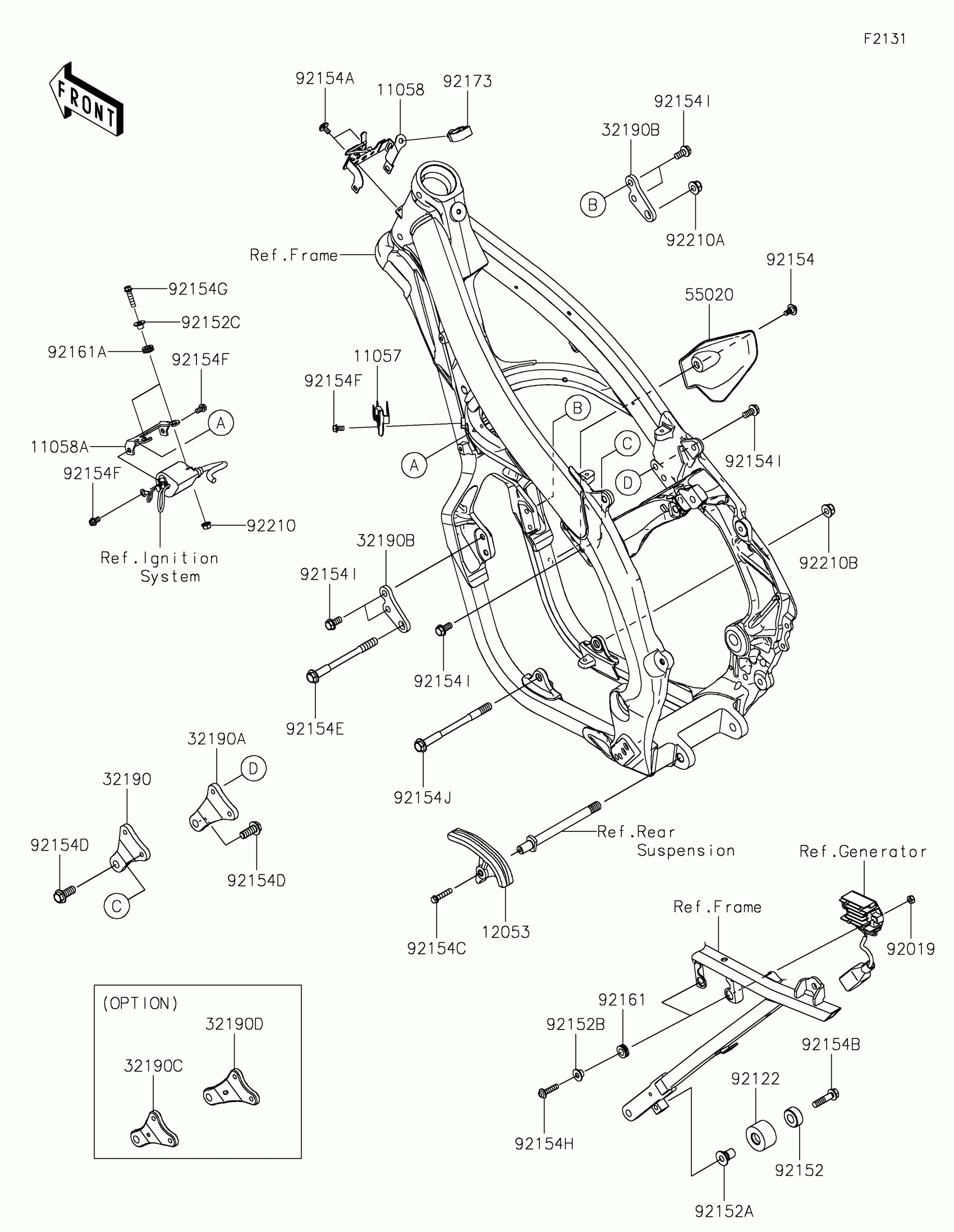

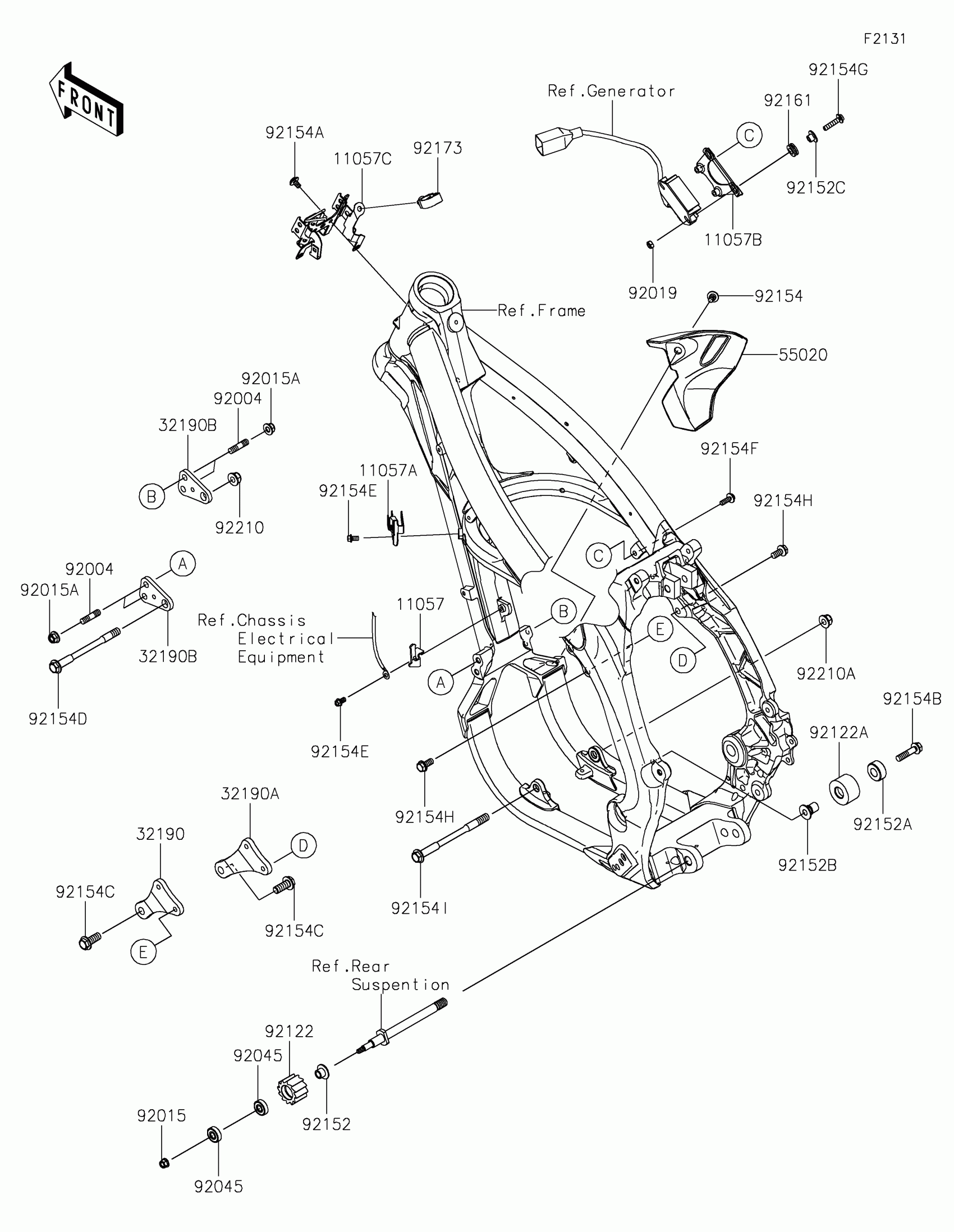

Find the part on the Frame Fittings diagram for your 2023 Kawasaki KX™450SR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2023 Kawasaki KX™450SR Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,VEHICLE DOWN SENSOR

11057-1528

1
Out of stock

11057A

BRACKET,COUPLER

11057-1529

1
Out of stock

11057B

BRACKET,REGULATOR

11057-1531

1
Out of stock

11057C

BRACKET,ECU

11057-1557

1
Out of stock

32190

BRACKET-ENGINE,UPP,LH

32190-0771

1
Out of stock

32190A

BRACKET-ENGINE,UPP,RH

32190-0772

1
Out of stock

32190B

BRACKET-ENGINE,FR

32190-0783

1
Out of stock

55020

GUARD

55020-2213

1
Out of stock

92004

STUD,8X18/16

92004-0789

1
Out of stock

92015

NUT,LOCK,FLANGED,6MM

92015-1339

1
Out of stock

92015A

NUT,8MM

92015-1432

1
Out of stock

92019

NUT,LOCK,6MM

92019-008

1
Out of stock

92045

BEARING-BALL,608LLU/2A

92045-0060

1
Out of stock

92122

ROLLER,CHAIN GUIDE

92122-0016

1
Out of stock

92122A

ROLLER,CHAIN

92122-0042

1
Out of stock

92152

COLLAR

92152-0459

1
Out of stock

92152A

COLLAR,12.7X27.2X12

92152-0945

1
Out of stock

92152B

COLLAR,8.3X12.5X21.5

92152-2460

1
Out of stock

92152C

COLLAR,6.5X10X8.5

92152-2467

1
Out of stock

92154

BOLT,FLANGED,6X9

92154-0546

1
Out of stock

92154A

BOLT,SOCKET,6X10

92154-0774

1
Out of stock

92154B

BOLT,FLANGED,8X35

92154-1746

1
Out of stock

92154C

BOLT,FLANGED,10X25

92154-2747

1
Out of stock

92154D

BOLT,10X124

92154-2941

1
Out of stock

92154E

BOLT,6X10

92154-2963

1
Out of stock

92154F

BOLT,SOCKET,6X18,AL

92154-3774

1
Out of stock

92154G

BOLT,SOCKET,6X27,AL

92154-3775

1
Out of stock

92154H

BOLT,8X17

92154-3881

1
Out of stock

92154I

BOLT,10X137

92154-4397

1
Out of stock

92161

DAMPER,10X18X6.5

92161-2091

1
Out of stock

92173

CLAMP

92173-0861

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-1080

1
Out of stock

92210A

NUT,10MM

92210-1868

1
Out of stock
