2023 Kawasaki KX™450SR Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 2023 Kawasaki KX™450SR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

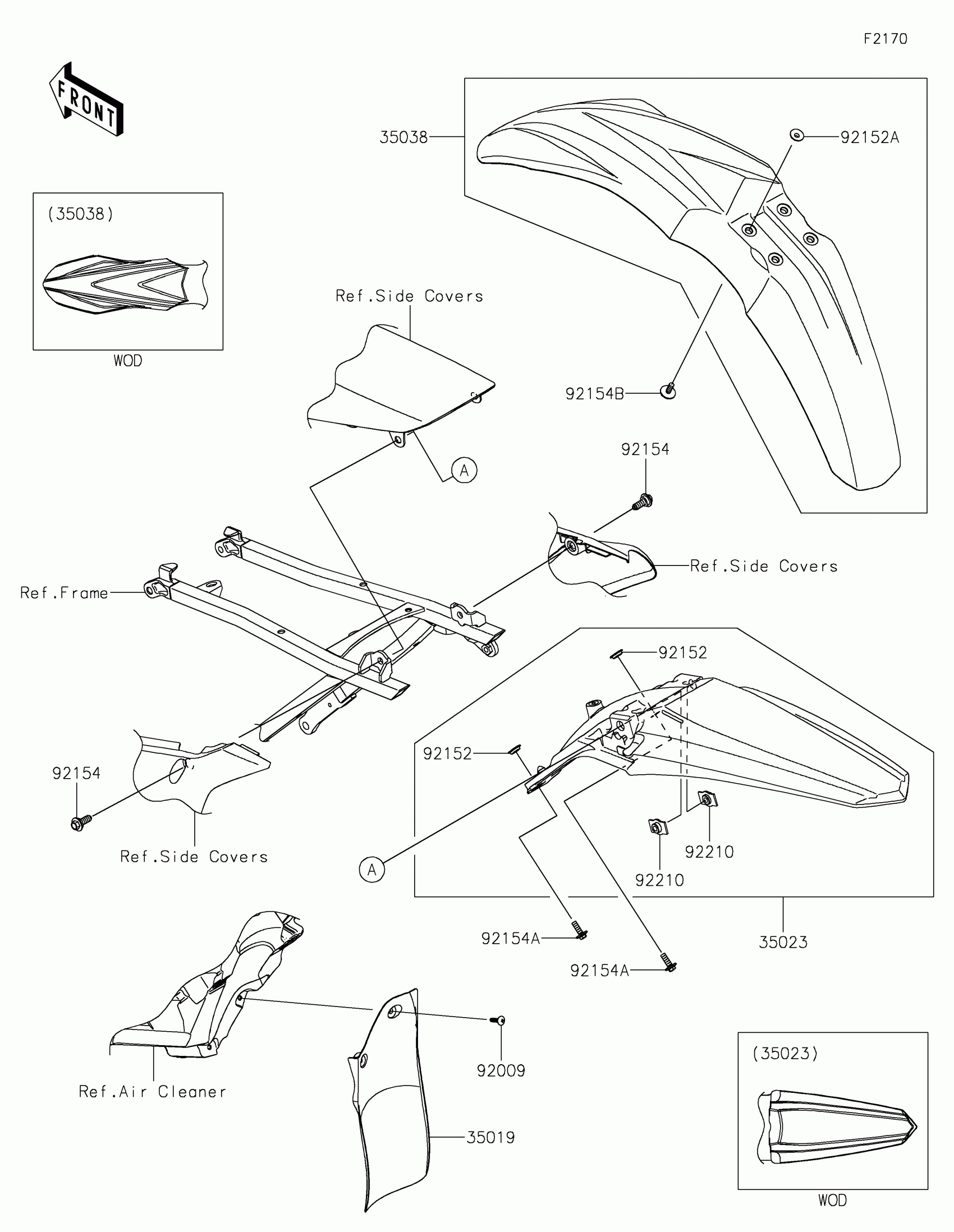

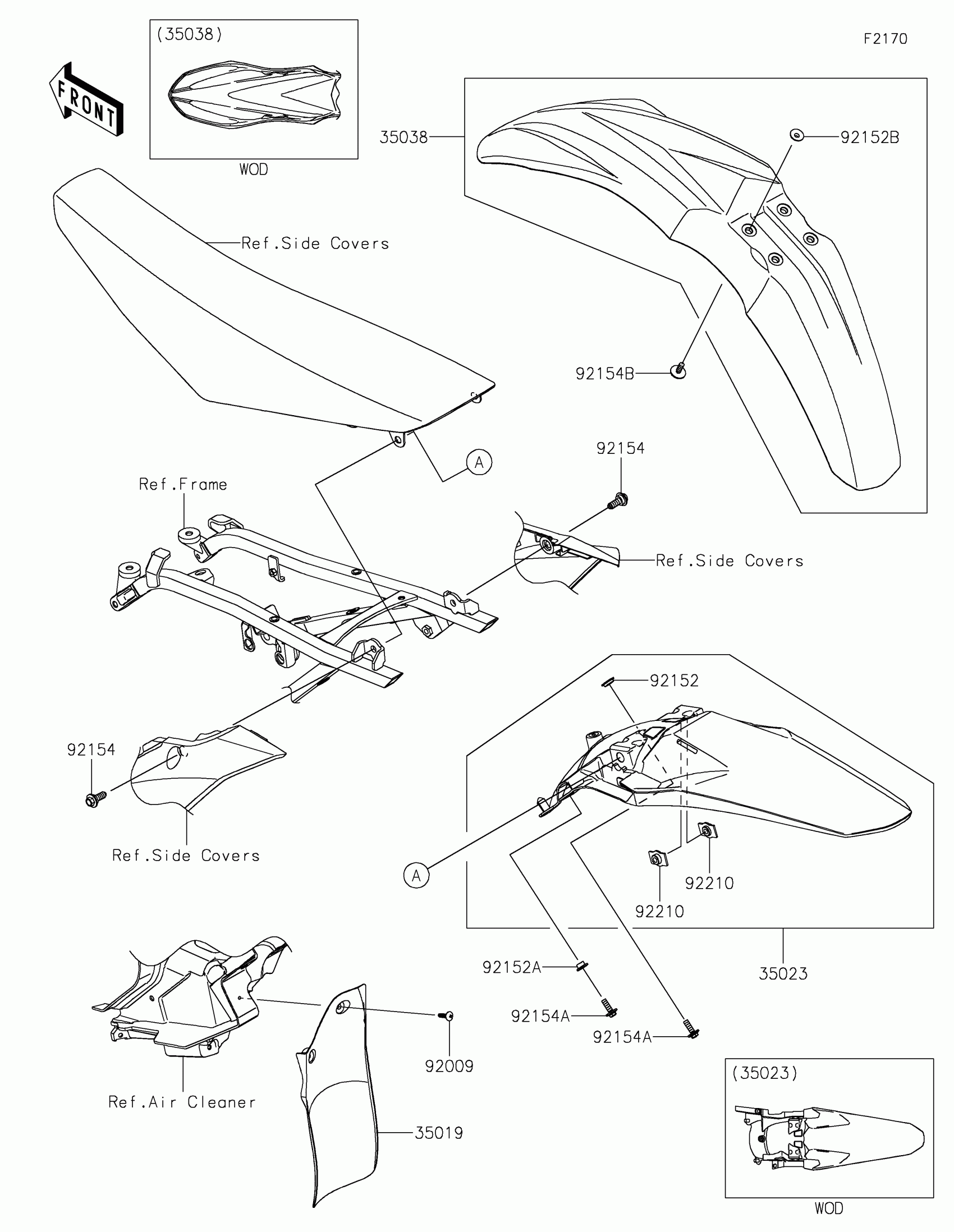

2023 Kawasaki KX™450SR Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

35019

FLAP

35019-0669

1
Out of stock

35023

FENDER-REAR,L.GREEN

35023-0445-290

1
Out of stock

35038

FENDER-FRONT,L.GREEN

35038-0008-290

1
Out of stock

92009

SCREW,TAPPING,5X20

92009-1993

1
Out of stock

92152

COLLAR

92152-0052

1
Out of stock

92152A

COLLAR

92152-1422

1
Out of stock

92154

BOLT,STEPPED,8X23

92154-2961

1
Out of stock

92154A

BOLT,FLANGED,6X20

92154-2972

1
Out of stock

92154B

BOLT,6X18

92154-2973

1
Out of stock

92210

NUT,8MM

92210-1635

1
Out of stock
