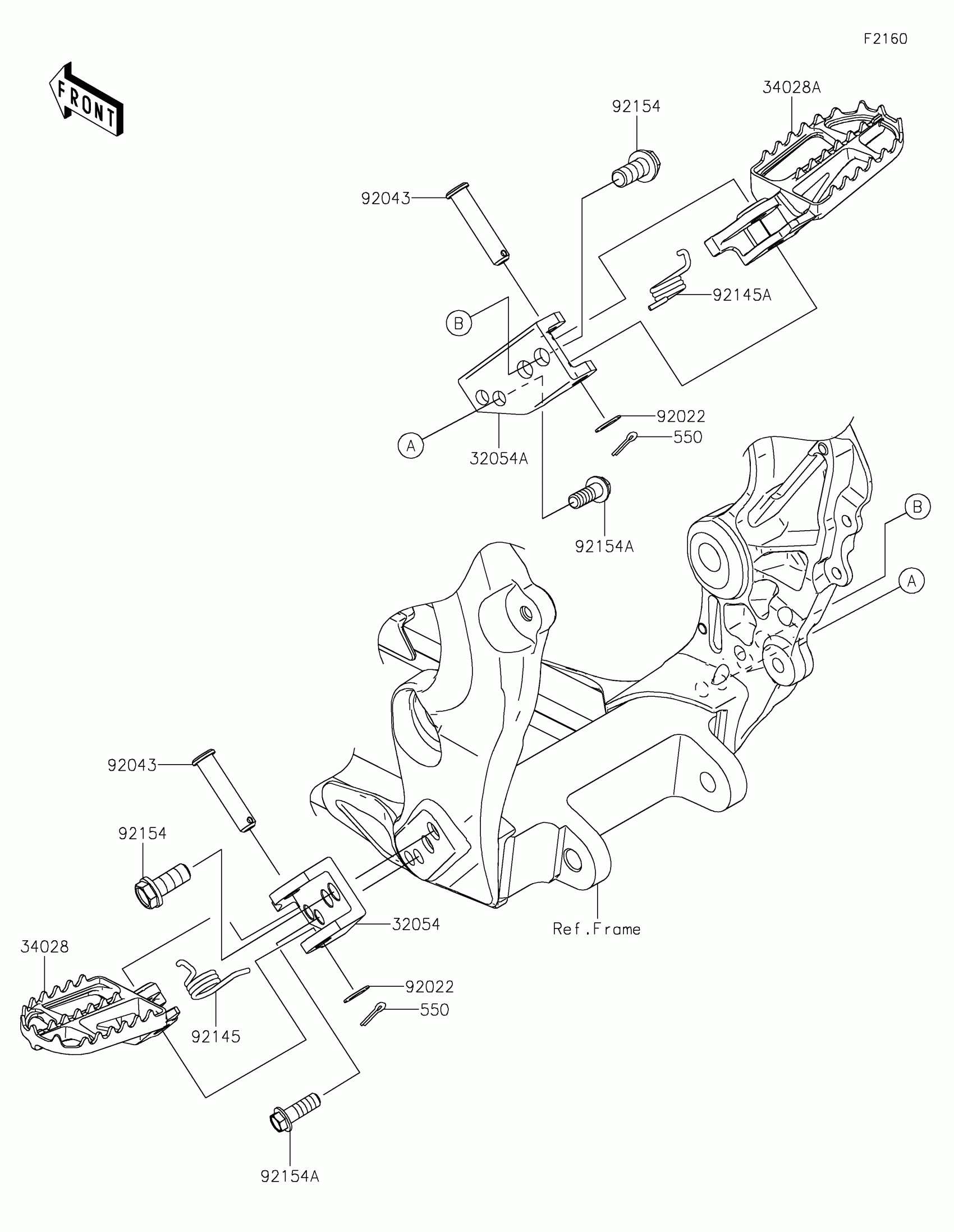

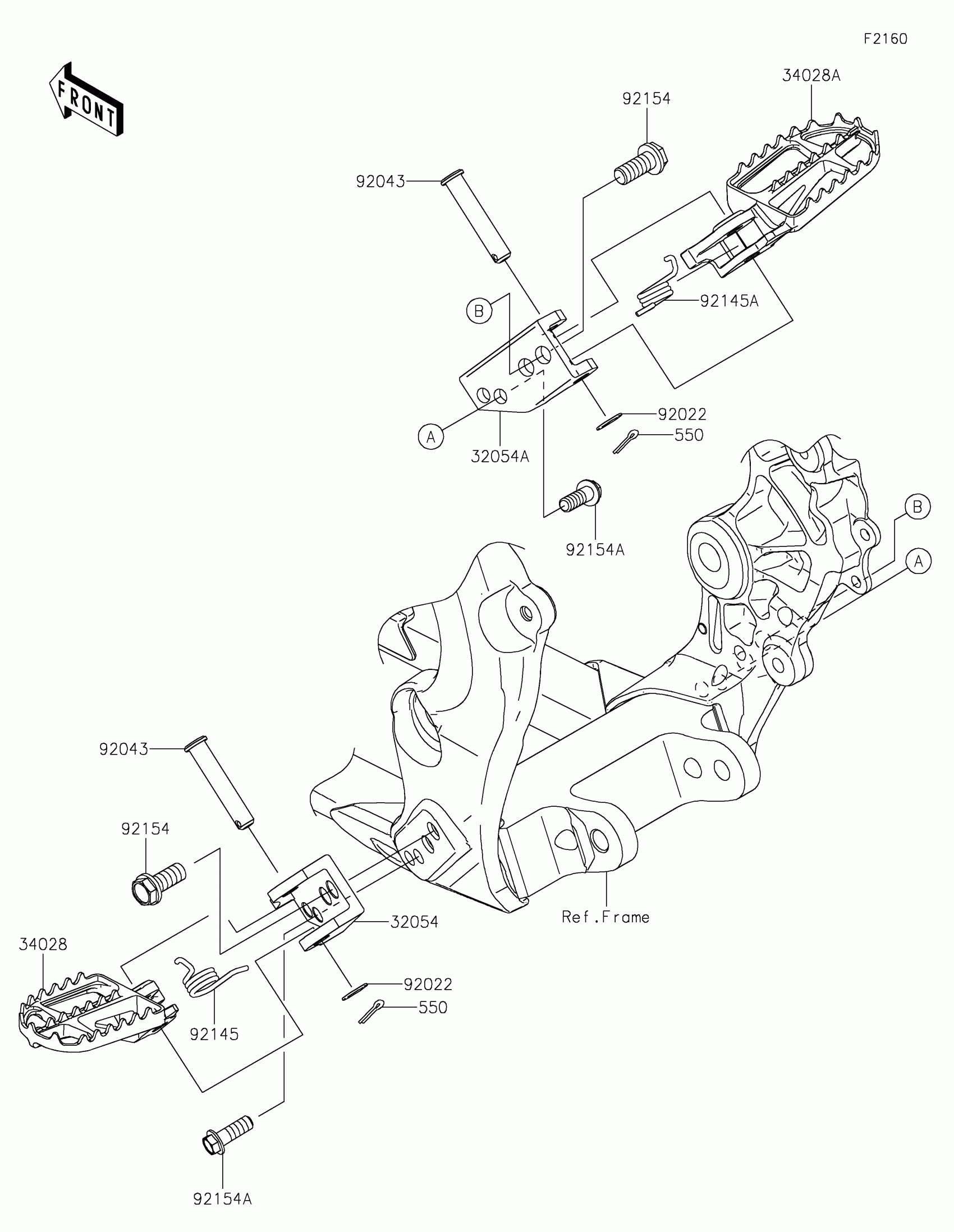

Kawasaki KX™450SR Footrests Diagram

#

Description
Price

32054

BRACKET-STEP,LH

32054-0087

$78.85

32054A

BRACKET-STEP,RH

32054-0088

$90.58

34028

STEP,WIDE,LH

34028-0360

$68.48

34028A

STEP,WIDE,RH

34028-0361

$68.48

92022

WASHER,10.2X16X1

92022-1829

$3.29

92043

PIN,10X42.5

92043-0074

$7.89

92145

SPRING,STEP,LH

92145-0819

$4.42

92145A

SPRING,STEP,RH

92145-0820

$4.42

92154

BOLT,FLANGED,10X23

92154-0545

$4.46

92154A

BOLT,8X23,MEC

92154-2987

$2.41

550

PIN-COTTER,3.0X20

550S3020

$2.75
