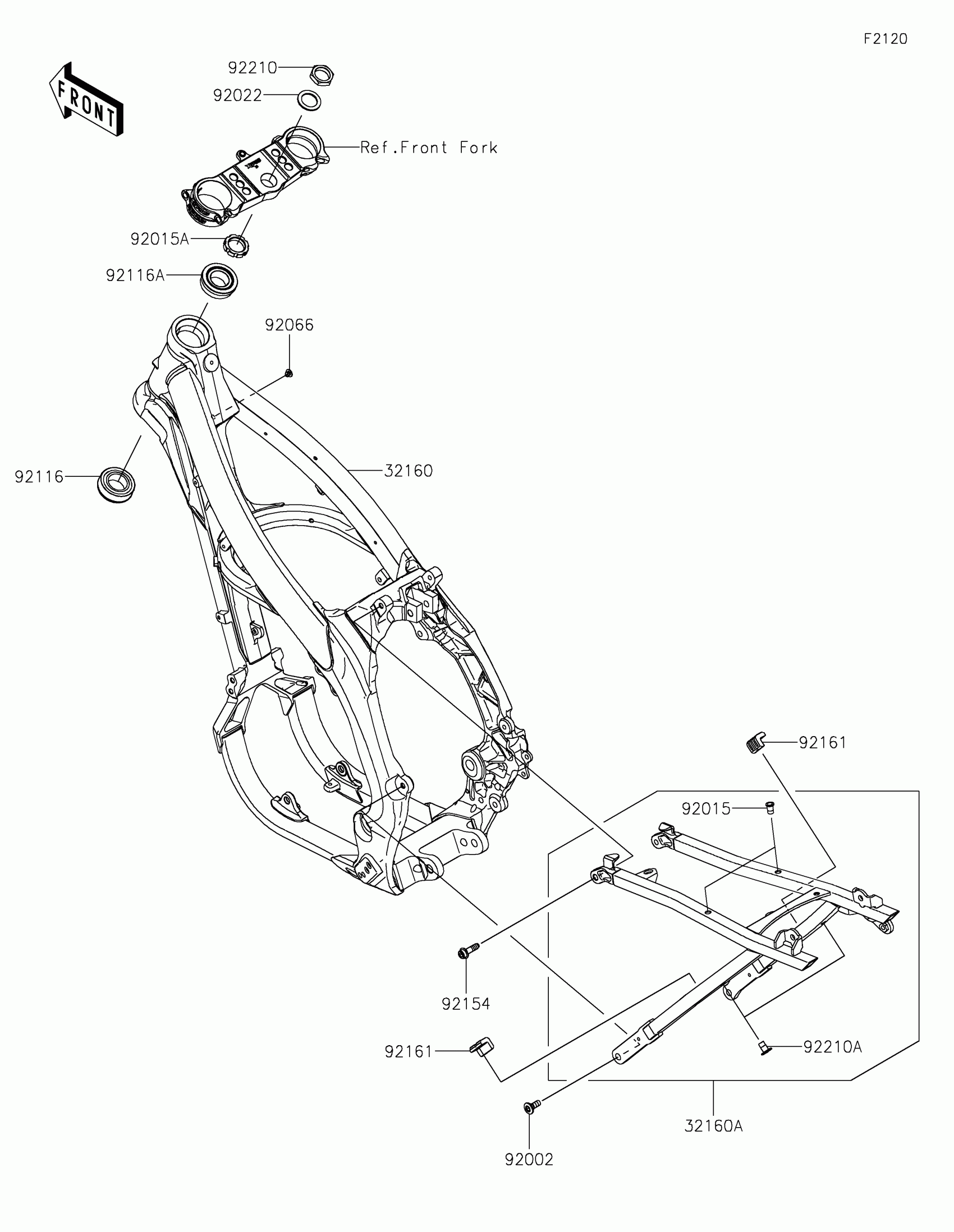

Kawasaki KX™450SR Frame Diagram

Description

Price

32160

FRAME-COMP,MAIN

32160-0973

$2,516.93

32160A

FRAME-COMP,RR

32160-1939

$641.32

92002

BOLT,SOCKET,8X20

92002-1736

$4.93

92015

NUT,POP,6MM,L=15

92015-1791

$3.57

92015A

NUT,STEERING STEM,28MM

92015-1861

$13.69

92022

WASHER,25X36X2.3

92022-250

$3.81

92066

PLUG

92066-1547

$3.19

92116

BEARING-ROLLER,HI-CAP32006JRRS

92116-1069

$57.86

92116A

BEARING-ROLLER,HI-CAP320/28JRR

92116-1076

$45.62

92154

BOLT,SOCKET,8X28

92154-2991

$7.32

92161

DAMPER

92161-2175

$9.44

92210

NUT,24MM

92210-0066

$8.94

92210A

NUT,LARGE FLANGE,6MM,L=16.5

92210-1623

$2.08
