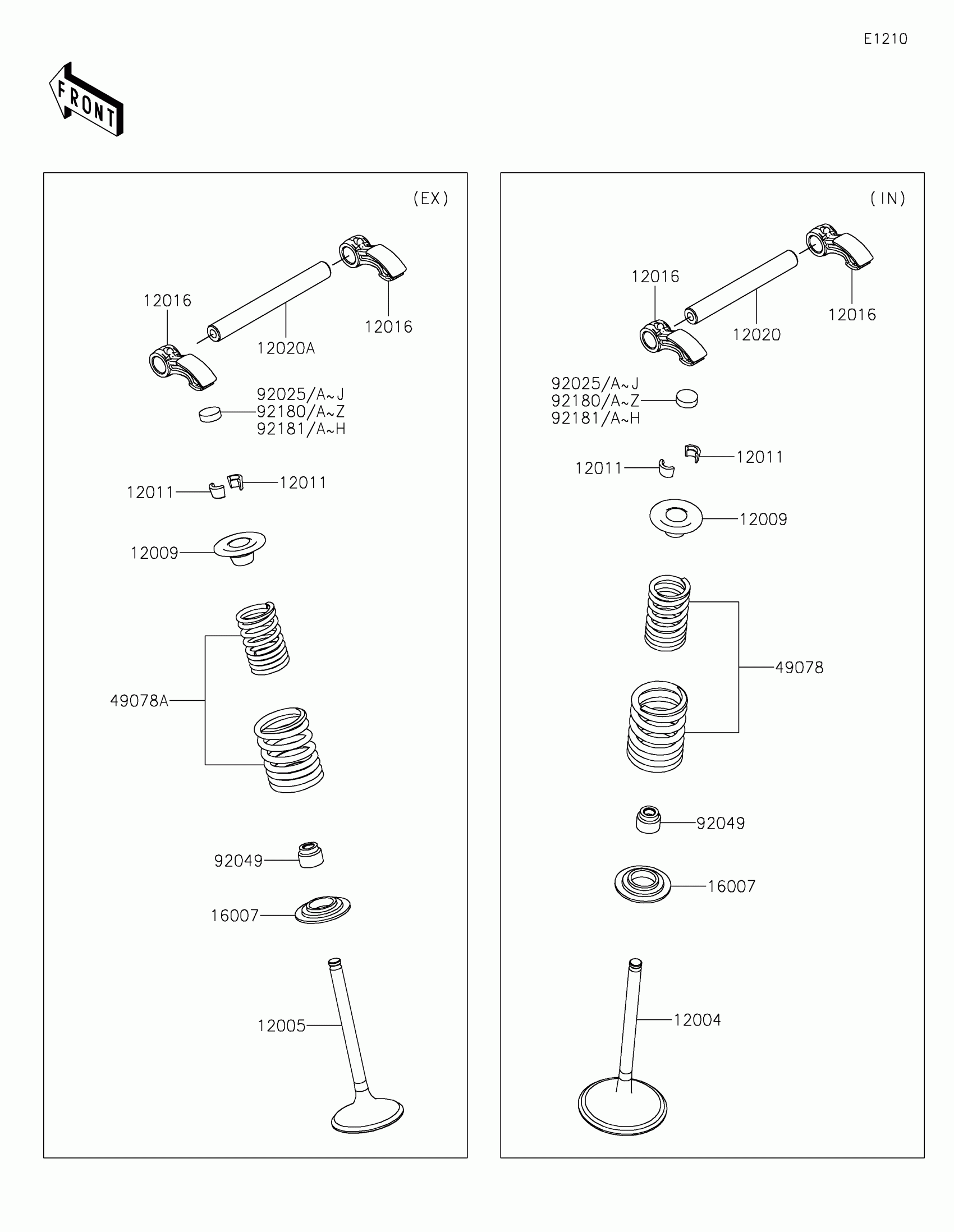

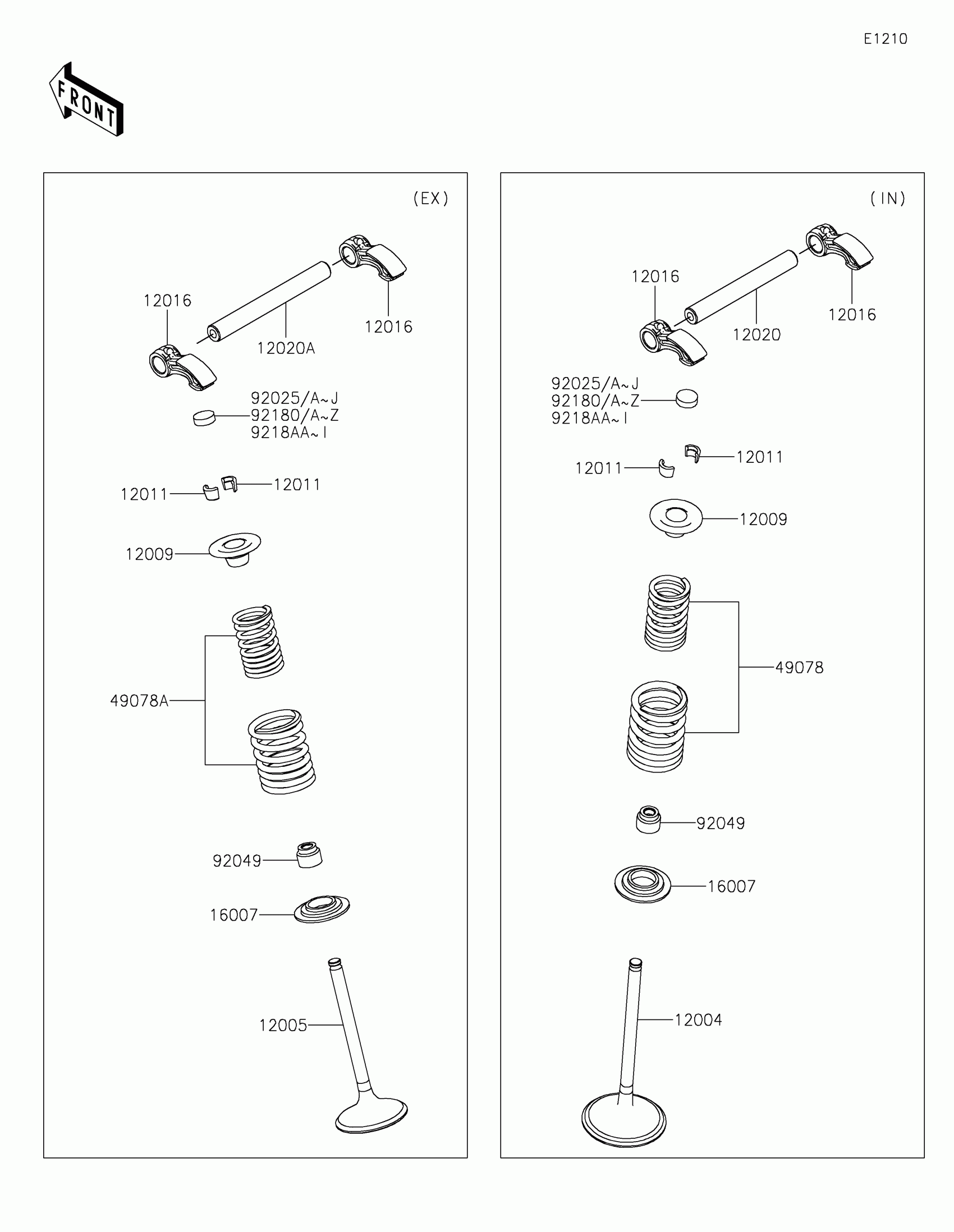

2020 Kawasaki KX™450 Valve Diagram
Find the part on the Valve diagram for your 2020 Kawasaki KX™450, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
Description
Qty in Assembly
Price
Status
Order Qty
92025
SHIM,T=2.50
92025-1880
—
Out of stock
92025A
SHIM,T=2.55
92025-1881
—
Out of stock
92025B
SHIM,T=2.60
92025-1882
—
Out of stock
92025C
SHIM,T=2.65
92025-1883
—
Out of stock
92025D
SHIM,T=2.70
92025-1884
—
Out of stock
92025E
SHIM,T=2.75
92025-1885
—
Out of stock
92025F
SHIM,T=2.80
92025-1886
—
Out of stock
92025G
SHIM,T=2.85
92025-1887
—
Out of stock
92025H
SHIM,T=2.90
92025-1888
—
Out of stock
92025I
SHIM,T=2.95
92025-1889
—
Out of stock
92025J
SHIM,T=3.00
92025-1890
1
Out of stock
92049
SEAL-OIL,RVC2-5.5X8.5X8.3
92049-1062
1
Out of stock
