2019 Kawasaki KX™250 Throttle Diagram

← All diagrams

Find the part on the Throttle diagram for your 2019 Kawasaki KX™250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

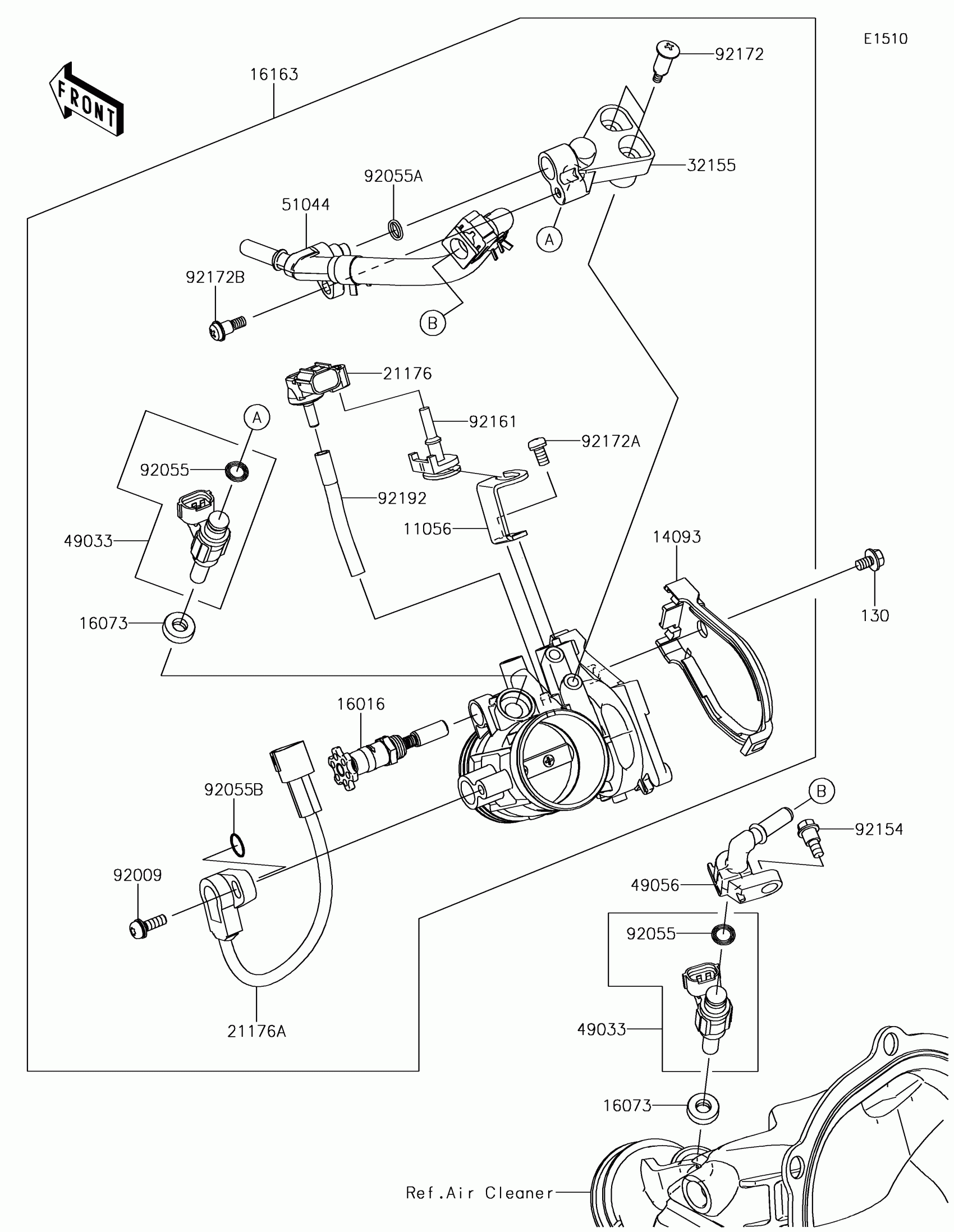

2019 Kawasaki KX™250 Throttle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET

11056-7946

1

$4.76

In stock

130

BOLT-FLANGED,5X8

130BA0508

1

$1.53

In stock

14093

COVER,THROTTLE DUST

14093-0431

1

$25.20

In stock

16016

PLUNGER

16016-0027

1

$45.30

In stock

16073

INSULATOR

16073-0129

1

$4.75

In stock

16163

THROTTLE-ASSY

16163-0917

1

$667.19

In stock

21176

SENSOR,PRESSURE

21176-0111

1

$226.99

In stock

21176A

1

$192.98

In stock

32155

PIPE,FUEL

32155-2219

1

$118.42

In stock

49033

NOZZLE-INJECTION

49033-0556

1

$138.26

In stock

49056

PIPE-INJECTION

49056-0048

1
Out of stock

51044

TUBE-ASSY

51044-0829

1

$125.11

In stock

92009

SCREW,THROTTLE SENSOR

92009-1981

1
Out of stock

92055

1

$2.42

In stock

92055A

RING-O

92055-0872

1

$3.25

In stock

92055B

RING-O

92055-1671

1

$3.29

In stock

92154

BOLT,FLANGED,5X8

92154-1021

1

$2.44

In stock

92161

DAMPER

92161-0673

1

$4.85

In stock

92172

1

$2.29

In stock

92172A

SCREW

92172-0393

1

$7.47

In stock

92172B

SCREW

92172-0776

1

$4.68

In stock

92192

TUBE

92192-1748

1
Out of stock
