1988 Kawasaki KX™250 Fuel Tank Diagram

← All diagrams

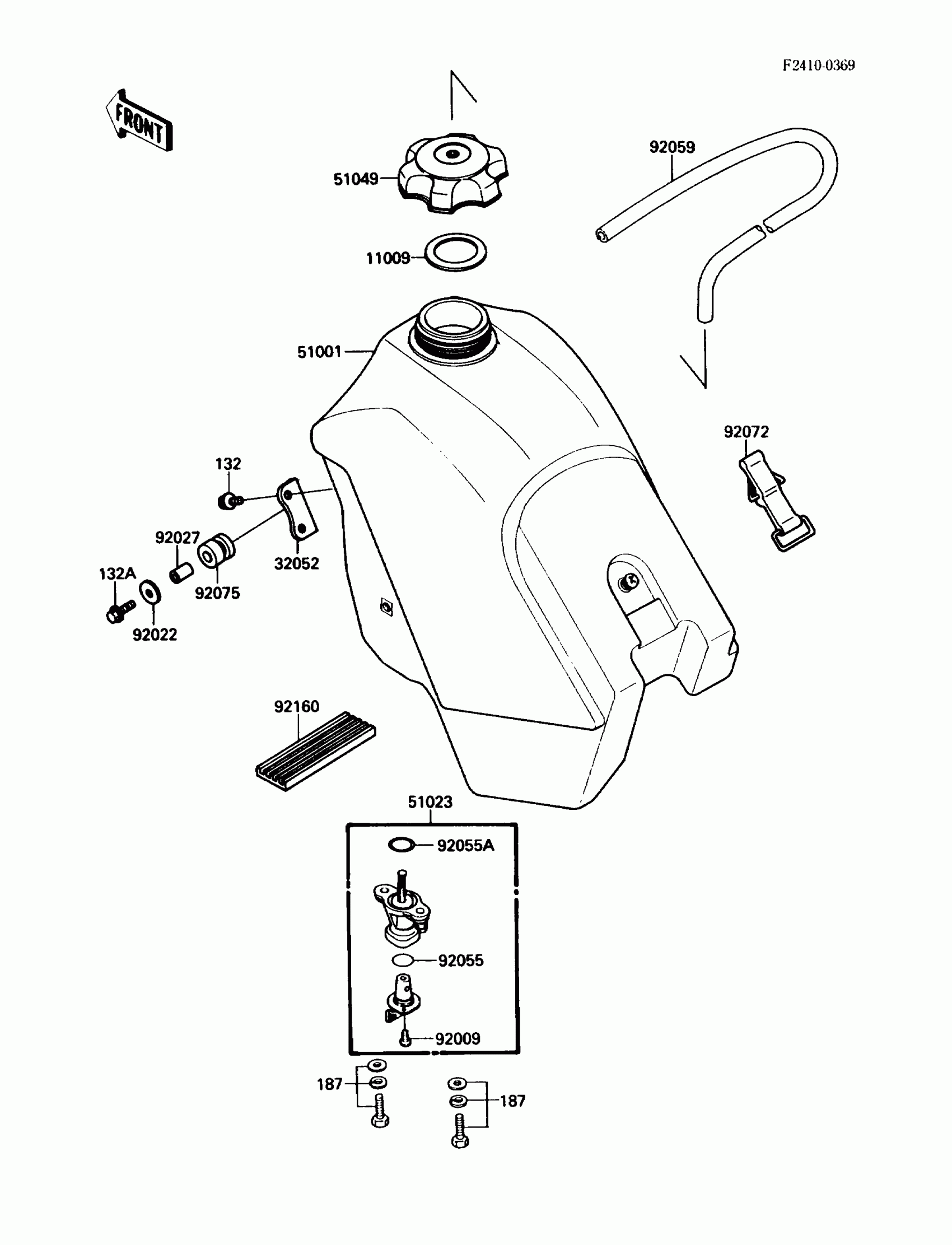

Find the part on the Fuel Tank diagram for your 1988 Kawasaki KX™250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Kawasaki KX™250 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,FUEL TANK CAP

11009-1622

1
Out of stock

32052

BRACKET-TANK

32052-1169

1

$17.22

In stock

51001

TANK-COMP-FUEL,L.GREEN

51001-1281-6W

1
Out of stock

51023

TAP-ASSY,FUEL

51023-1115

1
Out of stock

51049

CAP-TANK,FUEL

51049-1089

1

$29.27

In stock

92009

SCREW,3X8

92009-1386

1
Out of stock

92022

WASHER,6.5X24X2

92022-1690

1

$3.12

In stock

92027

COLLAR,6.8X10X17

92027-1833

1

$4.63

In stock

92055

1

$1.19

In stock

92055A

1

$6.34

In stock

92059

TUBE,5X9X350

92059-1265

1
Out of stock

92072

BAND,FUEL TANK

92072-1229

1

$10.09

In stock

92075

DAMPER

92075-1660

1

$6.44

In stock

92160

DAMPER,FUEL TANK

92075-1987

1
Out of stock

132

BOLT-FLANGED-SMALL

132G0612

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X30

132G0630

1
Out of stock

187

BOLT-UPSET-WSP

187B0616

1
Out of stock
