1988 Kawasaki KX™250 Clutch Diagram

← All diagrams

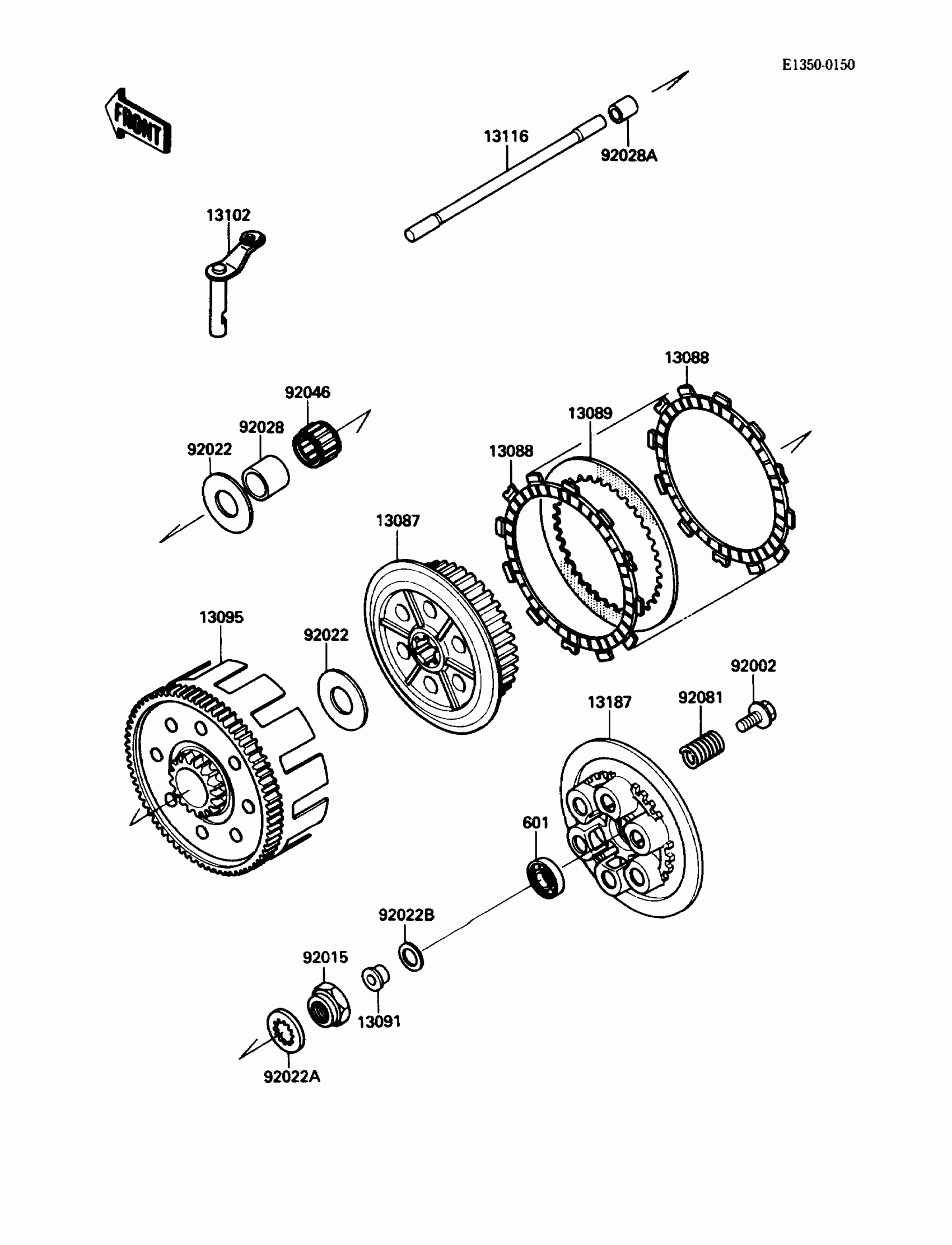

Find the part on the Clutch diagram for your 1988 Kawasaki KX™250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Kawasaki KX™250 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13087

HUB-CLUTCH

13087-1098

1
Out of stock

13088

PLATE-FRICTION

13088-1069

1
Out of stock

13089

PLATE-CLUTCH

13089-1079

1

$14.98

In stock

13091

HOLDER,ROD

13091-1582

1
Out of stock

13095

HOUSING-COMP-CLUTCH

13095-1171

1
Out of stock

13102

RELEASE-COMP-CLUTCH

13102-1094

1
Out of stock

13116

ROD-PUSH,L=202

13116-1125

1
Out of stock

13187

1

$86.24

In stock

92002

BOLT,CLUTCH

92002-1949

1
Out of stock

92015

NUT,20MM

92015-1725

1

$14.85

In stock

92022

WASHER,22.3X38X2.0

92022-1836

1
Out of stock

92022A

WASHER

92022-1942

1
Out of stock

92022B

WASHER,12.3X20X0.5

92022-269

1
Out of stock

92028

BUSHING,22X28X27.5

92028-1385

1
Out of stock

92028A

BUSHING

92028-1484

1
Out of stock

92046

BEARING-NEEDLE,28R3226

92046-1149

1
Out of stock

92081

SPRING,CLUTCH

92081-1151

1
Out of stock

601

1

$12.85

In stock
