2019 Kawasaki KX™250 Fuel Pump Diagram

← All diagrams

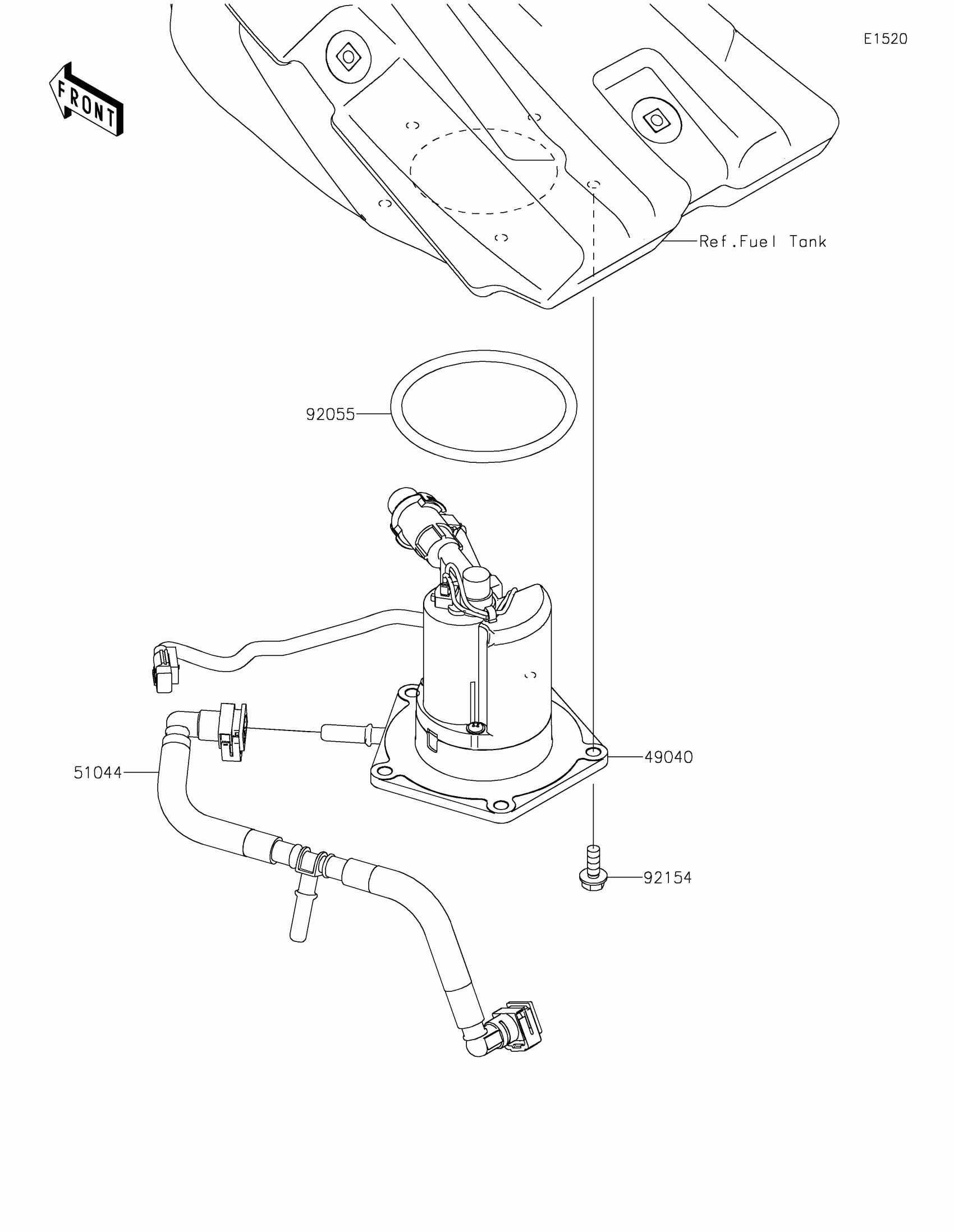

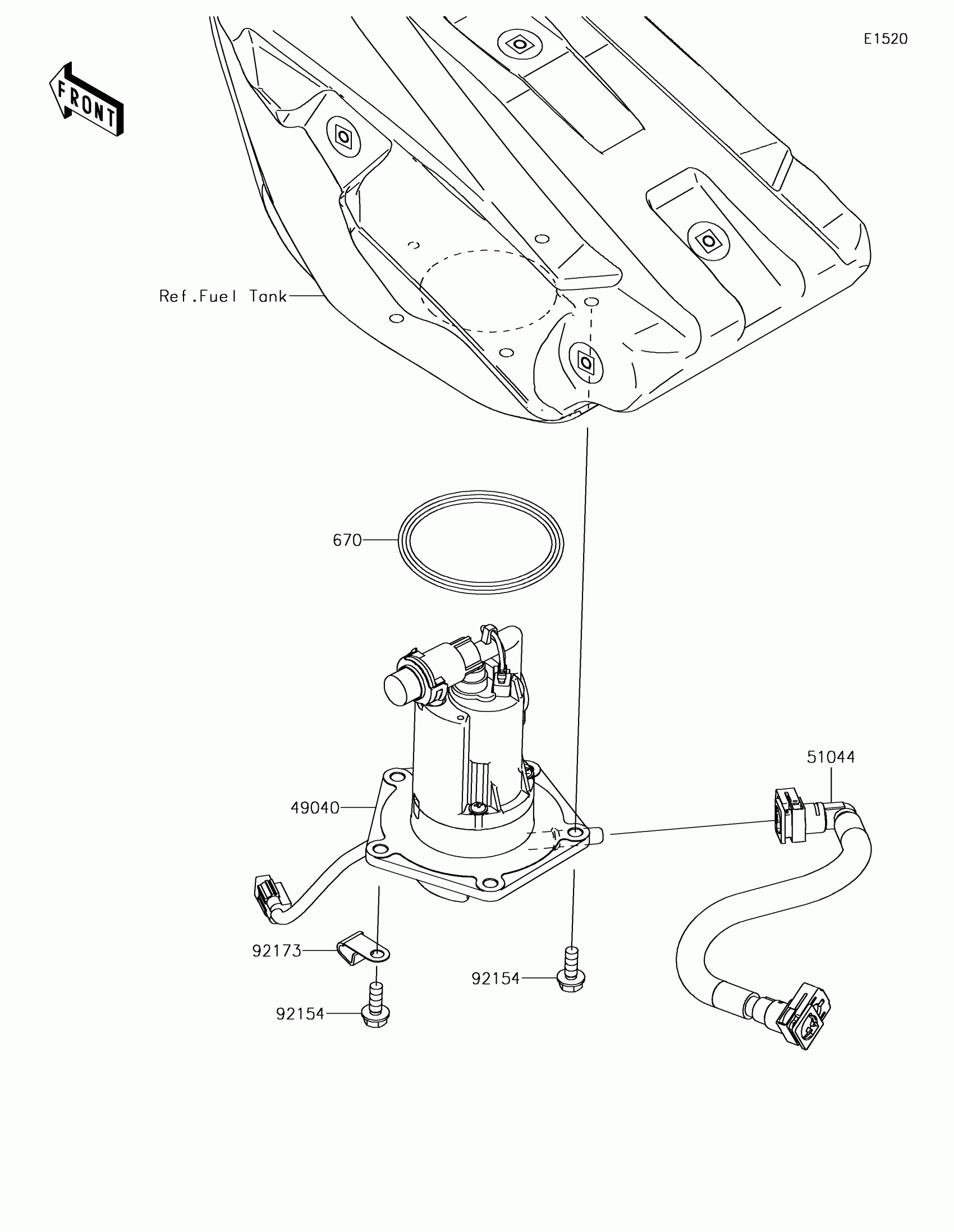

Find the part on the Fuel Pump diagram for your 2019 Kawasaki KX™250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Kawasaki KX™250 Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

49040

PUMP-FUEL

49040-0761

1

$543.67

In stock

51044

TUBE-ASSY,FUEL

51044-0830

1

$114.29

In stock

670

O RING

670E5070

1

$18.39

In stock

92154

BOLT,FLANGED,6X16

92154-0899

1

$1.93

In stock

92173

CLAMP,HARNESS

92173-1368

1

$5.46

In stock
