2009 Kawasaki KX™100 Radiator Diagram

← All diagrams

Find the part on the Radiator diagram for your 2009 Kawasaki KX™100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

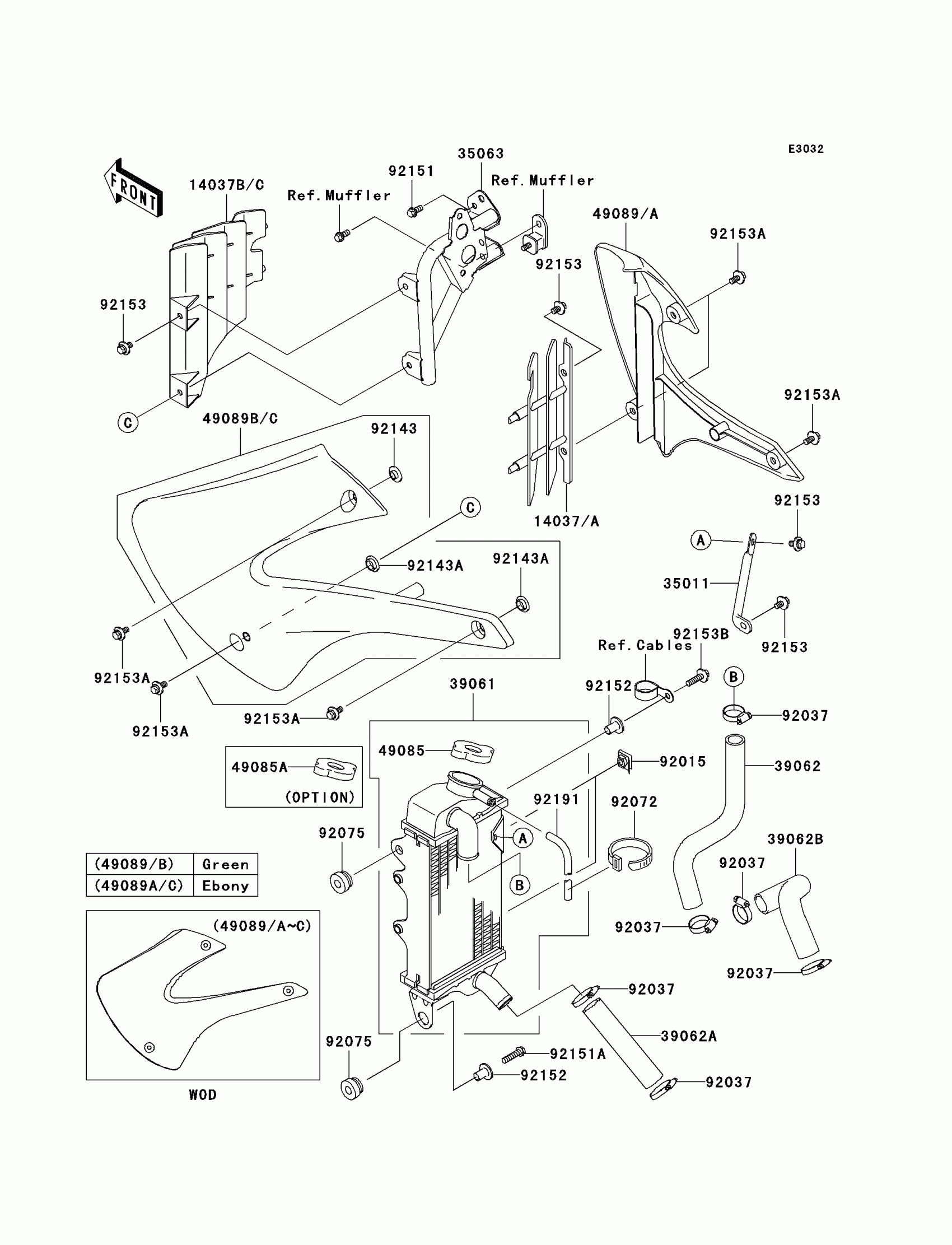

2009 Kawasaki KX™100 Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14037A

SCREEN,RH,BLACK

14037-1249-6D

1

$42.67

In stock

14037C

SCREEN,LH,BLACK

14037-1282-6D

1

$42.67

In stock

35011

STAY

35011-1845

1

$13.71

In stock

35063

STAY

35063-1137

1

$73.18

In stock

39061

RADIATOR-ASSY

39061-1245

1

$500.18

In stock

39062

1

$34.85

In stock

39062A

1

$15.59

In stock

39062B

1

$24.25

In stock

49085

1

$45.73

In stock

49085A

1

$51.50

In stock

49089A

SHROUD-ENGINE,RH,EBONY

49089-1139-6C

1

$51.01

In stock

49089C

SHROUD-ENGINE,LH,EBONY

49089-1146-6C

1

$51.29

In stock

92015

NUT

92015-1487

1

$3.80

In stock

92037

CLAMP,COOLING HOSE

92037-1589

1

$14.60

In stock

92072

BAND,L=186

92072-056

1

$3.97

In stock

92075

DAMPER

92075-1352

1

$5.16

In stock

92143

COLLAR

92143-1087

1

$3.11

In stock

92143A

COLLAR

92143-1196

1

$3.72

In stock

92151

BOLT,6X12

92151-1133

1
Out of stock

92151A

1

$2.06

In stock

92152

COLLAR

92152-0666

1

$5.35

In stock

92153

BOLT,6X12

92153-0503

1
Out of stock

92153A

BOLT,FLANGED,6X14

92153-0936

1
Out of stock

92153B

BOLT,FLANGED WP,6X25

92153-1008

1
Out of stock

92191

TUBE,6X9X700

92191-1211

1

$7.65

In stock
