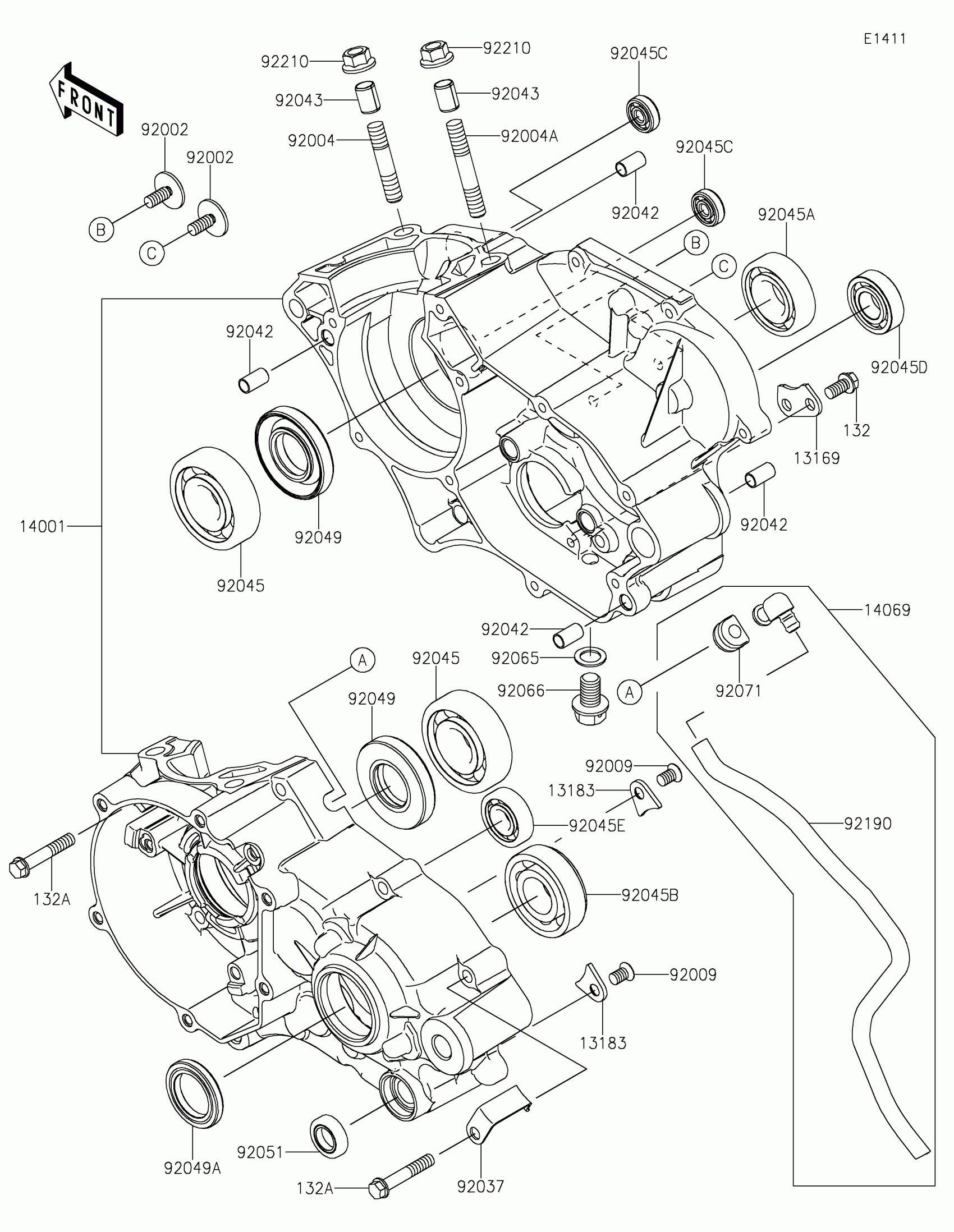

Find the part on the Crankcase diagram for your 2009 Kawasaki KX™100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

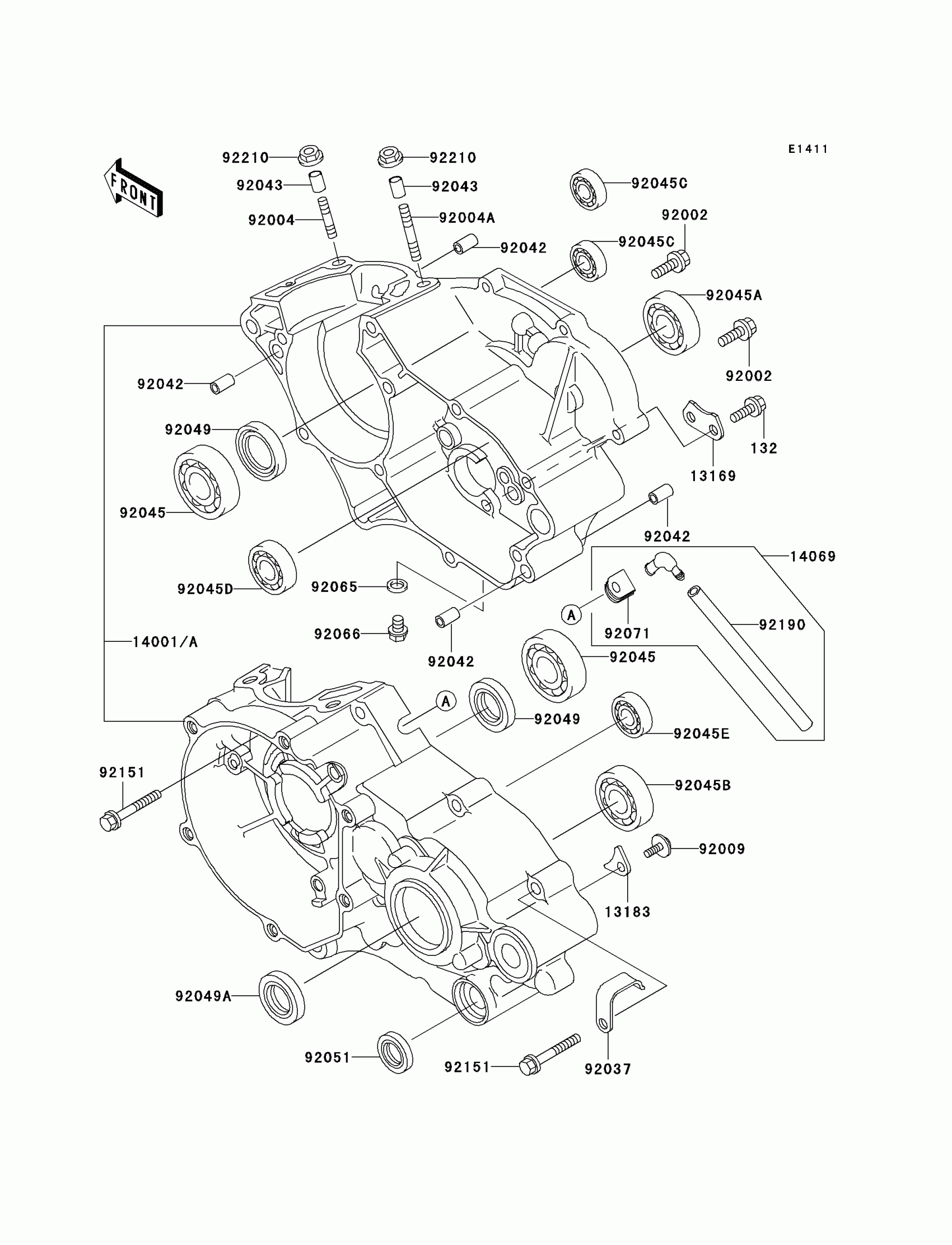

2009 Kawasaki KX™100 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$1.12

In stock

13169

PLATE,CHANGE DRUM

13169-012

1

$15.44

In stock

13183

PLATE

13183-1182

1

$3.72

In stock

14001A

SET-CRANKCASE

14001-0118

1
Out of stock

14069

BREATHER

14069-1062

1

$22.77

In stock

92002

BOLT,6X16

92002-1659

1
Out of stock

92004

STUD,8X28.5

92004-1252

1
Out of stock

92004A

STUD,8X37

92004-1254

1
Out of stock

92009

SCREW,6X10

92009-1563

1
Out of stock

92037

CLAMP,HARNESS

92037-1318

1

$7.25

In stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1

$4.51

In stock

92043

PIN,8.2X10X14

92043-1264

1

$0.53

In stock

92045

1

$27.96

In stock

92045A

1

$22.24

In stock

92045B

BEARING-BALL,6204

92045-1226

1

$23.97

In stock

92045C

BEARING-BALL,626MC3

92045-1304

1

$9.41

In stock

92045D

BEARING-BALL,TMB002

92045-1360

1

$13.55

In stock

92045E

1

$24.00

In stock

92049

SEAL-OIL,SD20407GS

92049-1188

1
Out of stock

92049A

SEAL-OIL,TC25375

92049-1292

1
Out of stock

92051

SEAL-OIL,TB13225.5

92051-005

1
Out of stock

92065

GASKET,10.5X16X1

92065-058

1

$3.16

In stock

92066

PLUG,DRAIN

92066-1437

1

$5.15

In stock

92071

GROMMET,BREATHER

92071-042

1

$3.39

In stock

92151

BOLT,6X35

92151-1135

1

$3.33

In stock

92190

TUBE,6X9X330

92190-1116

1
Out of stock

92210

NUT,8MM

92210-0076

1
Out of stock
