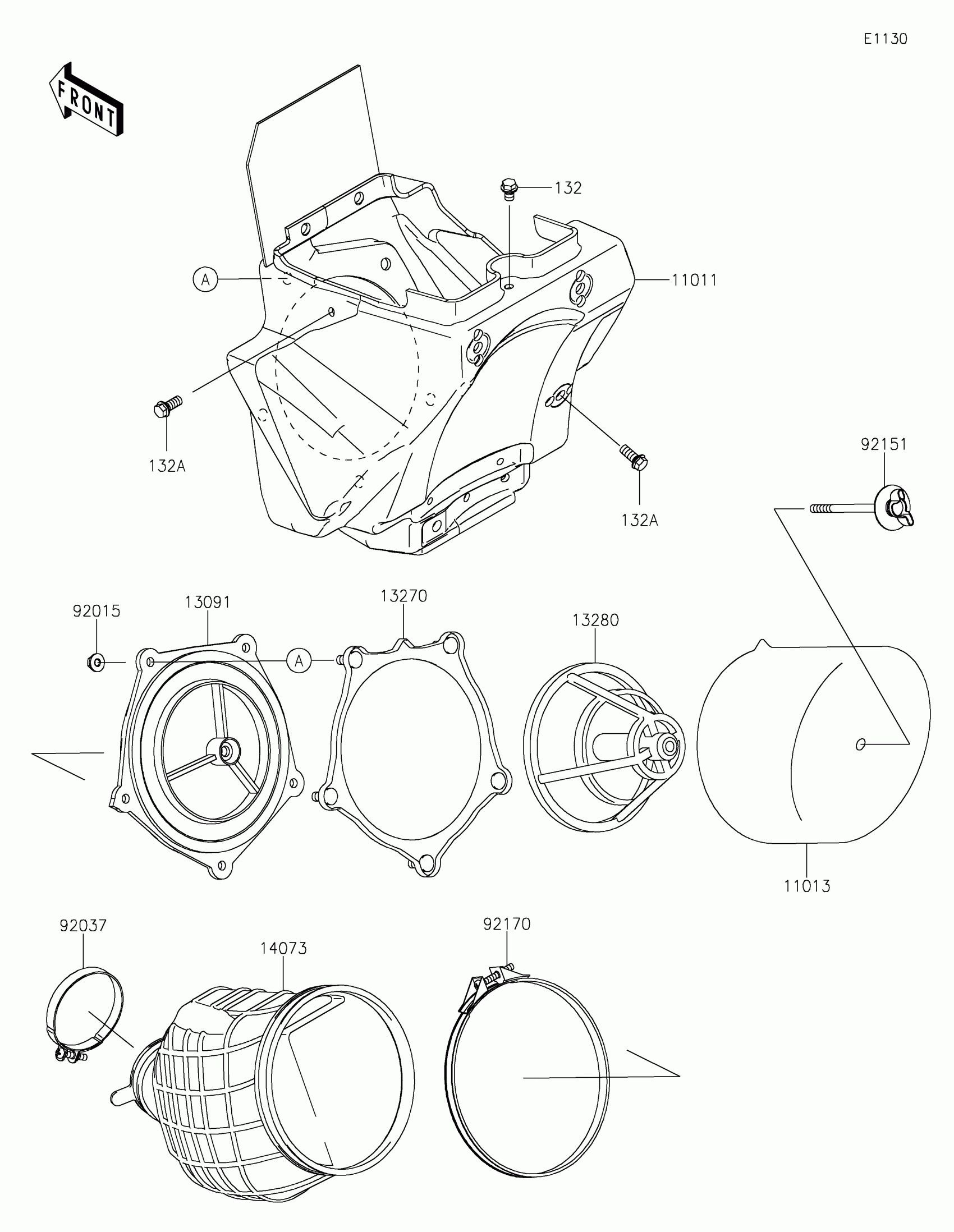

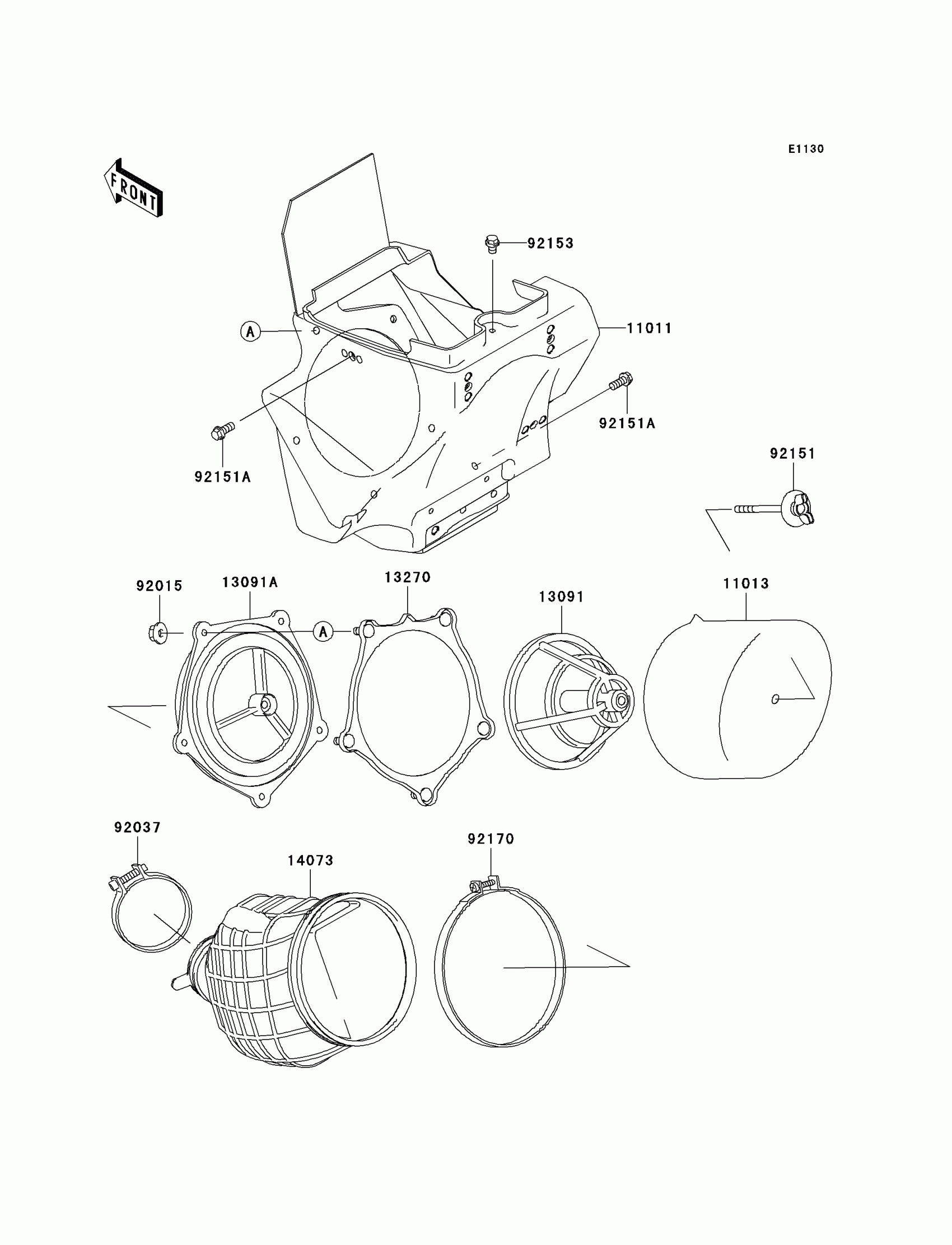

Kawasaki KX™100 Air Cleaner Diagram

Description

Price

11011

CASE-AIR FILTER

11011-1612

$134.84

11013

ELEMENT-AIR FILTER

11013-1271

$26.23

13091

HOLDER,ELEMENT

13091-1696

$25.79

13091A

HOLDER

13091-1697

$32.80

13270

PLATE,AIR FILTER

13270-1905

$42.03

14073

DUCT

14073-1785

$34.54

92015

NUT,FLANGED,5MM

92015-1259

$2.99

92037

CLAMP,55MM

92037-1486

$6.60

92151

BOLT,AIR FILTER

92151-1256

$7.00

92151A

BOLT,6X14

92151-1423

$0.76

92153

BOLT,6X8

92153-0860

$1.81

92170

CLAMP,126MM

92170-1194

$18.01
