2009 Kawasaki KX™100 Muffler Diagram

← All diagrams

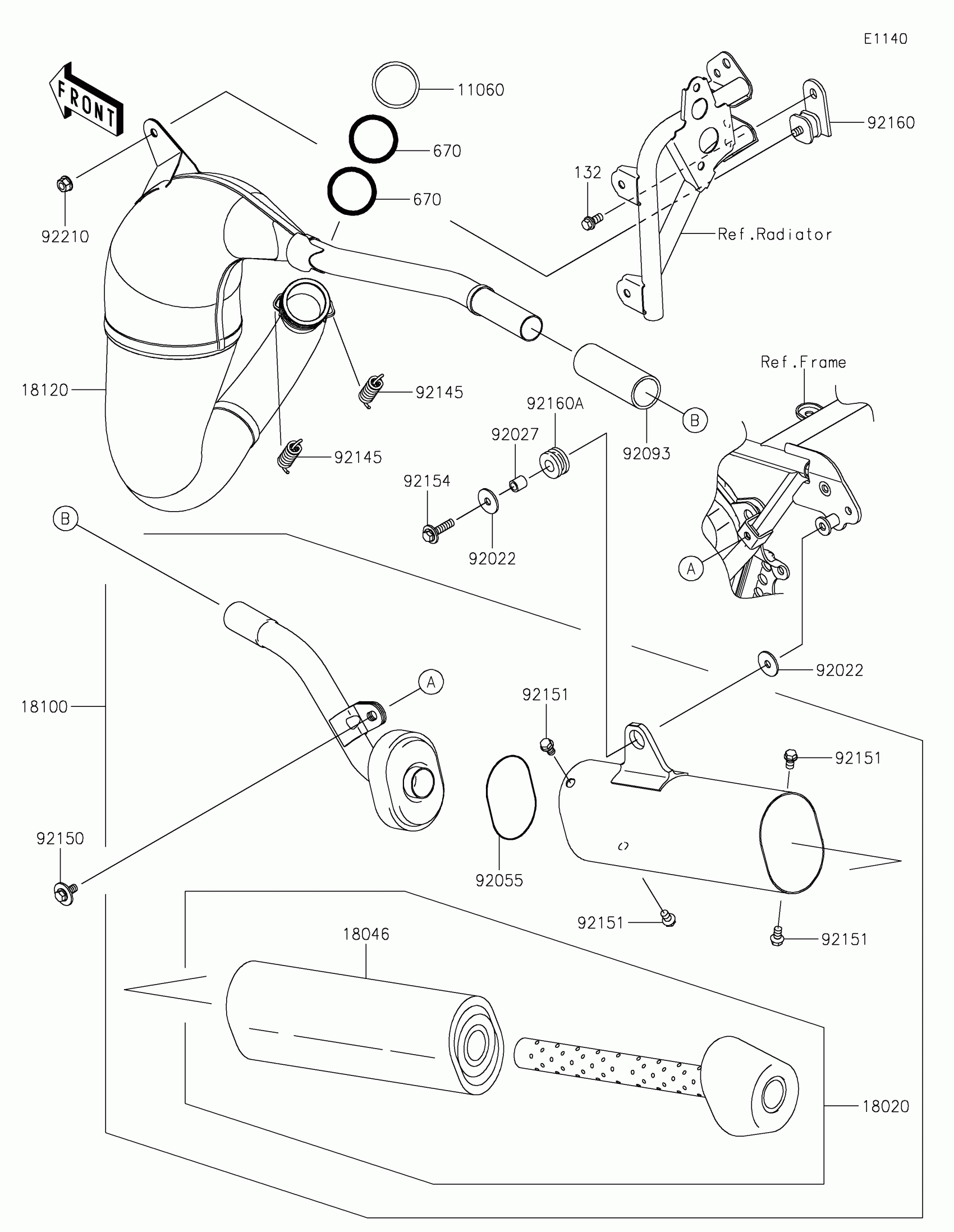

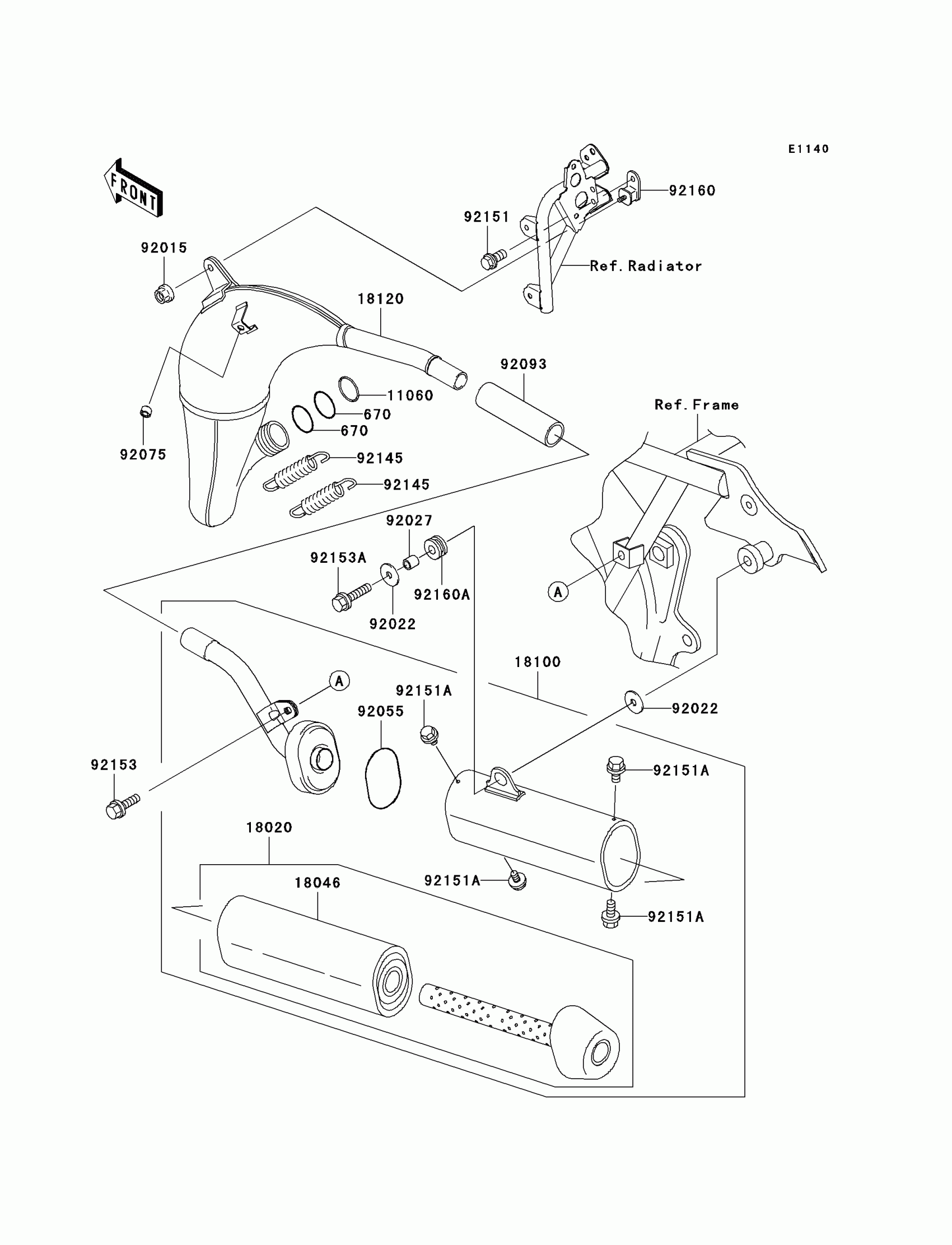

Find the part on the Muffler diagram for your 2009 Kawasaki KX™100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Kawasaki KX™100 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

670

O RING

670E3034

1

$6.34

In stock

11060

1

$5.73

In stock

18020

BAFFLE

18020-1272

1

$131.99

In stock

18046

WOOL

18046-1559

1

$59.04

In stock

18100

BODY-ASSY-MUFFLER

18100-0016

1

$209.21

In stock

18120

CHAMBER-EXHAUST

18120-1127

1

$328.90

In stock

92015

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92022

WASHER,6.5X22X1.6

92022-237

1
Out of stock

92027

COLLAR 6.8X10X10.5

92027-120

1

$3.97

In stock

92055

RING-O,BAFFLE PIPE

92055-1461

1

$7.25

In stock

92075

DAMPER

92075-1598

1

$6.82

In stock

92093

SEAL,MUFFLER JOINT

92093-1200

1

$39.34

In stock

92145

1

$10.62

In stock

92151

BOLT,6X12

92151-1133

1
Out of stock

92151A

BOLT,FLANGED,6X10

92151-1822

1

$1.51

In stock

92153

BOLT,FLANGED WP,6X14

92153-1007

1
Out of stock

92153A

BOLT,FLANGED WP,6X25

92153-1008

1
Out of stock

92160

DAMPER,MUFFLER,FR

92160-1176

1

$26.14

In stock

92160A

DAMPER

92160-1913

1

$2.19

In stock
