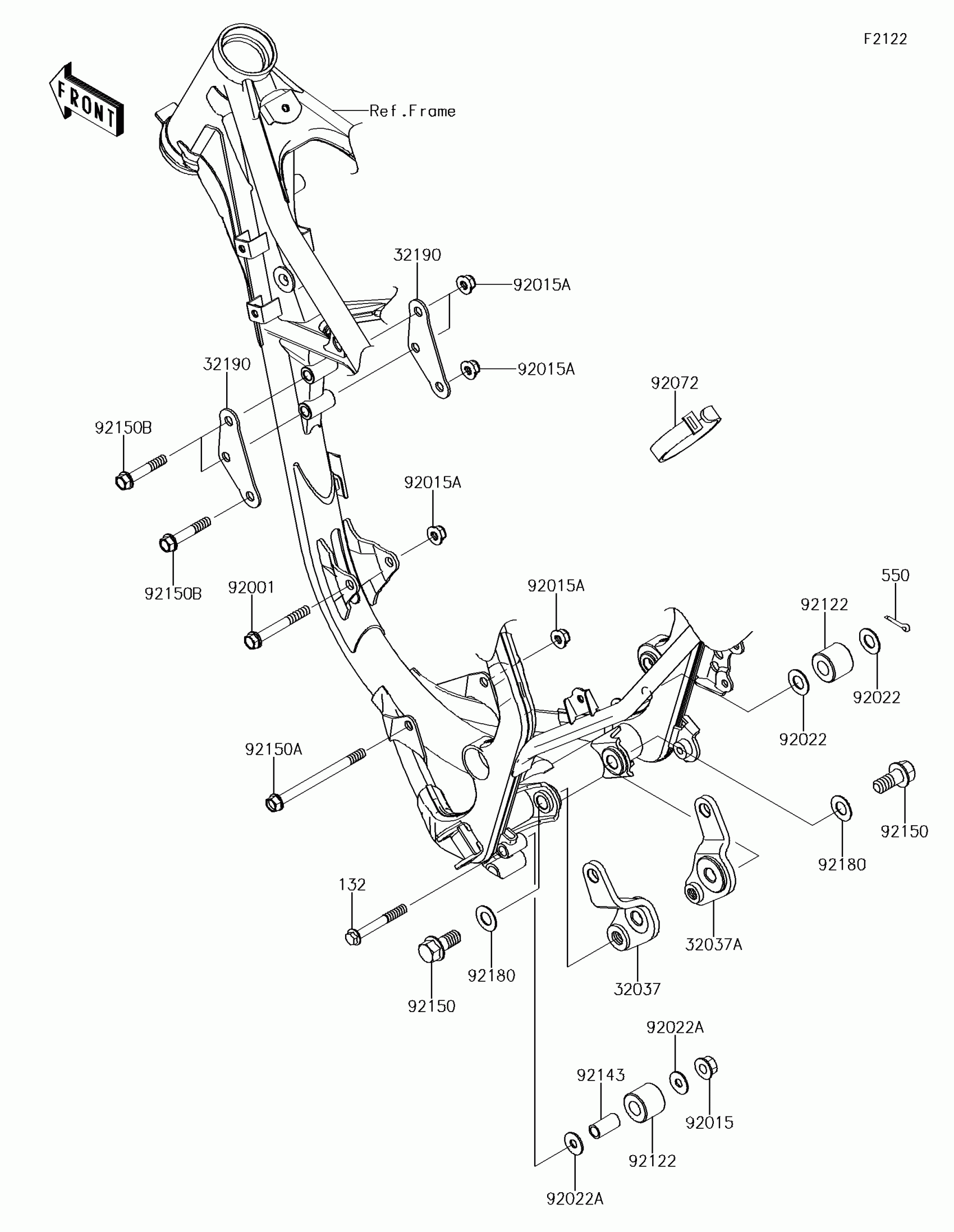

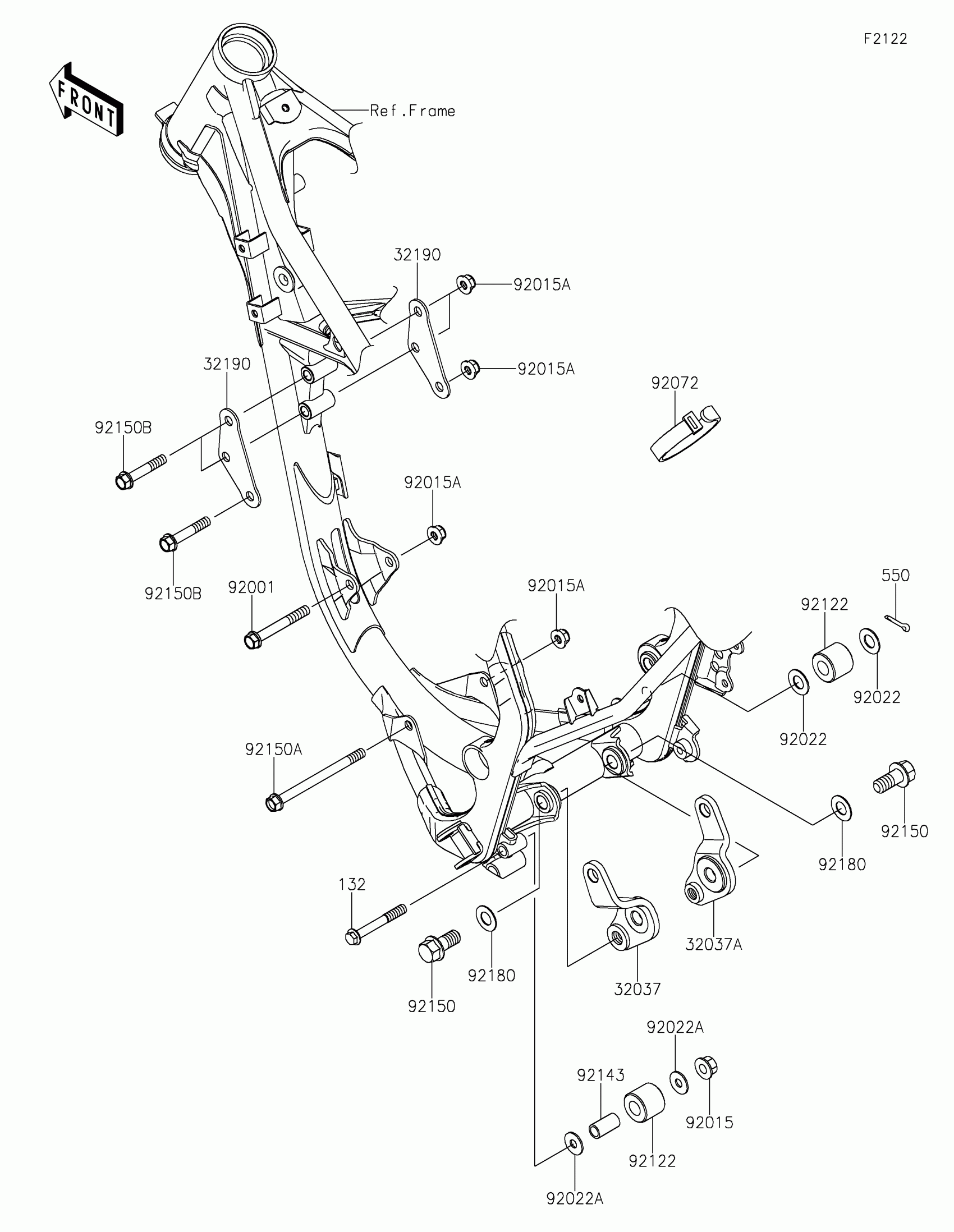

Kawasaki KX™100 Engine Mount Diagram

Description

Price

132

BOLT-FLANGED-SMALL,8X60

132BA0860

$4.46

32037

BRACKET-SHOCKABSORBER

32037-1552

$48.79

32037A

BRACKET-SHOCKABSORBER

32037-1553

$48.79

32190

BRACKET-ENGINE,HEAD

32190-1119

$13.91

550

PIN-COTTER,2.5X18

550AA2518

$0.61

92001

BOLT,FLANGED,8X63

92001-1006

$8.54

92015

NUT,FLANGED,8MM

92015-1406

$3.39

92015A

NUT,8MM

92015-1432

$4.93

92022

WASHER

92022-107

$2.20

92022A

WASHER,8.5X20X1.6

92022-1561

$3.29

92072

BAND,L=140

92072-1293

$5.26

92122

ROLLER,CHAIN GUIDE

92122-1213

$11.98

92143

COLLAR,9.5X12.7X25

92143-1432

$5.61

92150

BOLT,FLANGED,12X27

92150-1359

$5.99

92150A

BOLT,FLANGED,8X105

92150-1482

$7.54

92150B

BOLT,FLANGED,8X45

92150-1487

$4.93

92180

SHIM,12.5X24X0.5

92180-1060

$3.53
