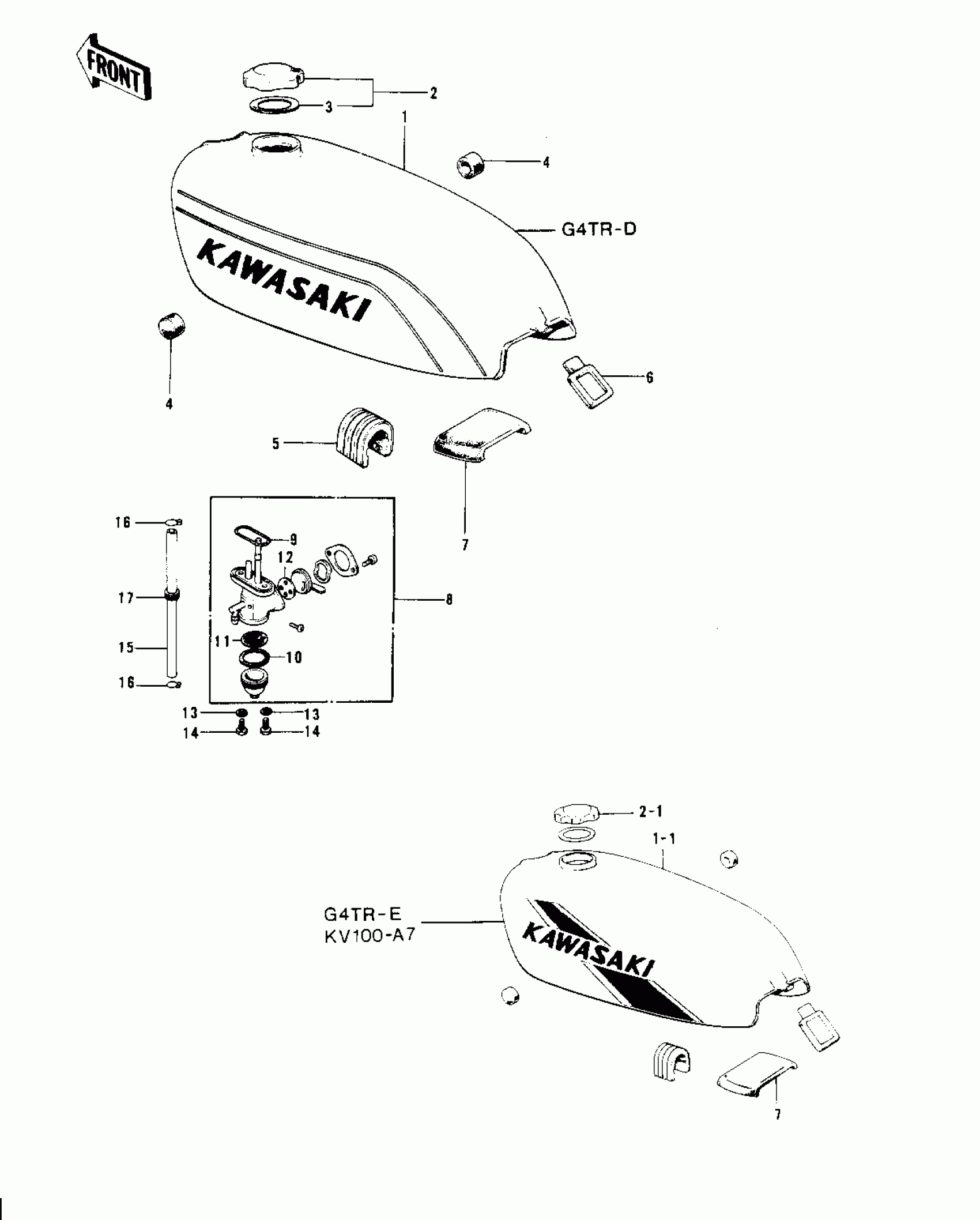

Kawasaki KV100-A7 FUEL TANK ('74-'75) Diagram

#

Description
Price

1

TANK-FUEL,C.SUPER RED

51001-090-1R

$200.77

1-1

TANK-FUEL,V.YELLOW

51001-090-3E

Unavailable

1-1

TANK-FUEL,C.RED

51001-090-3R

Unavailable

2

CAP,FUEL TANK

51048-1013

Unavailable

2-1

CAP,FUEL TANK

51048-1013

Unavailable

2-1

CAP,FUEL TANK

51048-1013

Unavailable

3

GASKET,FUEL TANK CAP

51059-011

$10.02

4

DAMPER,FUEL TANK

92075-101

$4.67

5

DAMPER RUBBER,FL TANK

92075-212

$22.39

6

BAND-FUEL TANK

92072-036

Unavailable

7

DAMPER,FUEL TANK

92075-106

$16.20

7

DAMPER RUBBER,FL TANK

92075-227

Unavailable

8

TAP-ASSY,FUEL

51023-1020

Unavailable

8

TAP-ASSY,FUEL

51023-1020

Unavailable

8

TAP-ASSY,FUEL

51023-1020

Unavailable

9

RING,TAP FLANGED

51039-003

$4.71

10

GASKET FUEL COCK CUP

51037-011

Unavailable

11

STRAINER,FUEL

51038-008

Unavailable

12

GASKET-FUEL COCK LEV

92065-094

Unavailable

13

WASHER-PLAIN

92022-183

$2.99

14

BOLT-HEX HEAD,6X16

92001-114

Unavailable

15

PIPE-OIL

92059-072

$34.17

16

CLAMP,TUBE

92037-010

$2.99

17

GROMMET,PIPE

92071-038

Unavailable
