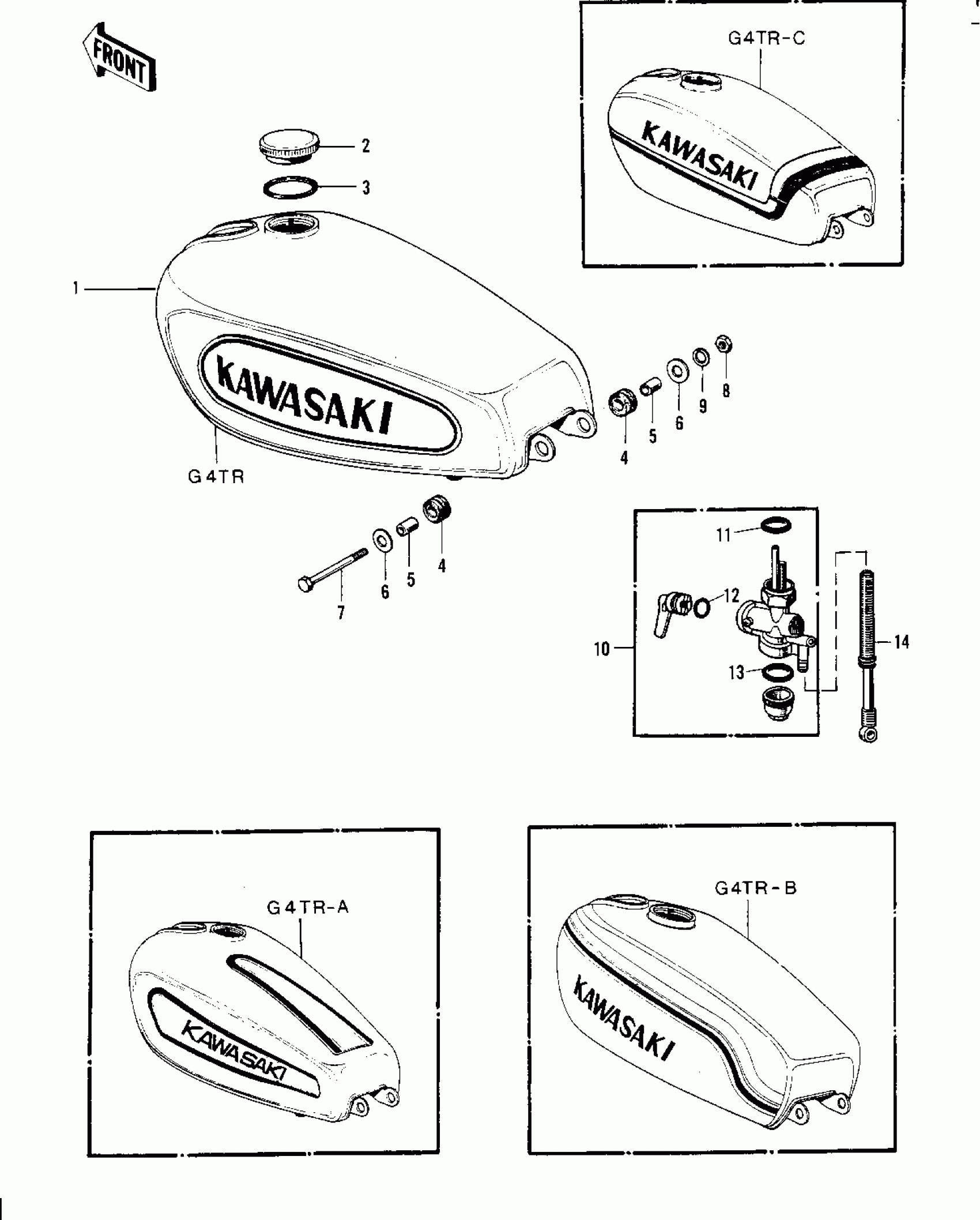

Kawasaki KV100-A7 FUEL TANK ('70-'73) Diagram

#

Description
Price

1

TANK-FUEL,P.C.RED

51001-053-44

Unavailable

1

TANK FUEL C.RED

51001-053-24

Unavailable

1

TANK-FUEL,P.C.ORANGE

51001-053-67

Unavailable

1

TANK-FUEL,C.RED

51001-053-92

Unavailable

2

CAP ASSY, LOCKING

51048-006

Unavailable

2

CAP ASSY, LOCKING

51048-006

Unavailable

3

GASKET FUEL TANK CAP

51059-003

$5.46

4

DAMPER RUBB TANK FRNT

92075-019

Unavailable

5

SPACER FUEL TANK MONT

51065-001

$3.10

6

WASHER,8X26X2.3

92022-1564

$3.29

7

BOLT,8X80

115B0880

Unavailable

8

NUT,8MM

311B0800

Unavailable

9

WASHER SPRING 8MM

461F0800

Unavailable

10

TAP-ASSY,FUEL

51023-1123

$73.52

11

GASKET,FUEL TAP JOINT

11009-1567

$5.56

12

'O' RING FUEL COCK

92065-062

Unavailable

13

GASKET FUEL COCK CUP

51037-008

$5.22

14

PIPE-FUEL

51044-031

Unavailable
