1976 Kawasaki KV100-A7 Clutch Diagram

← All diagrams

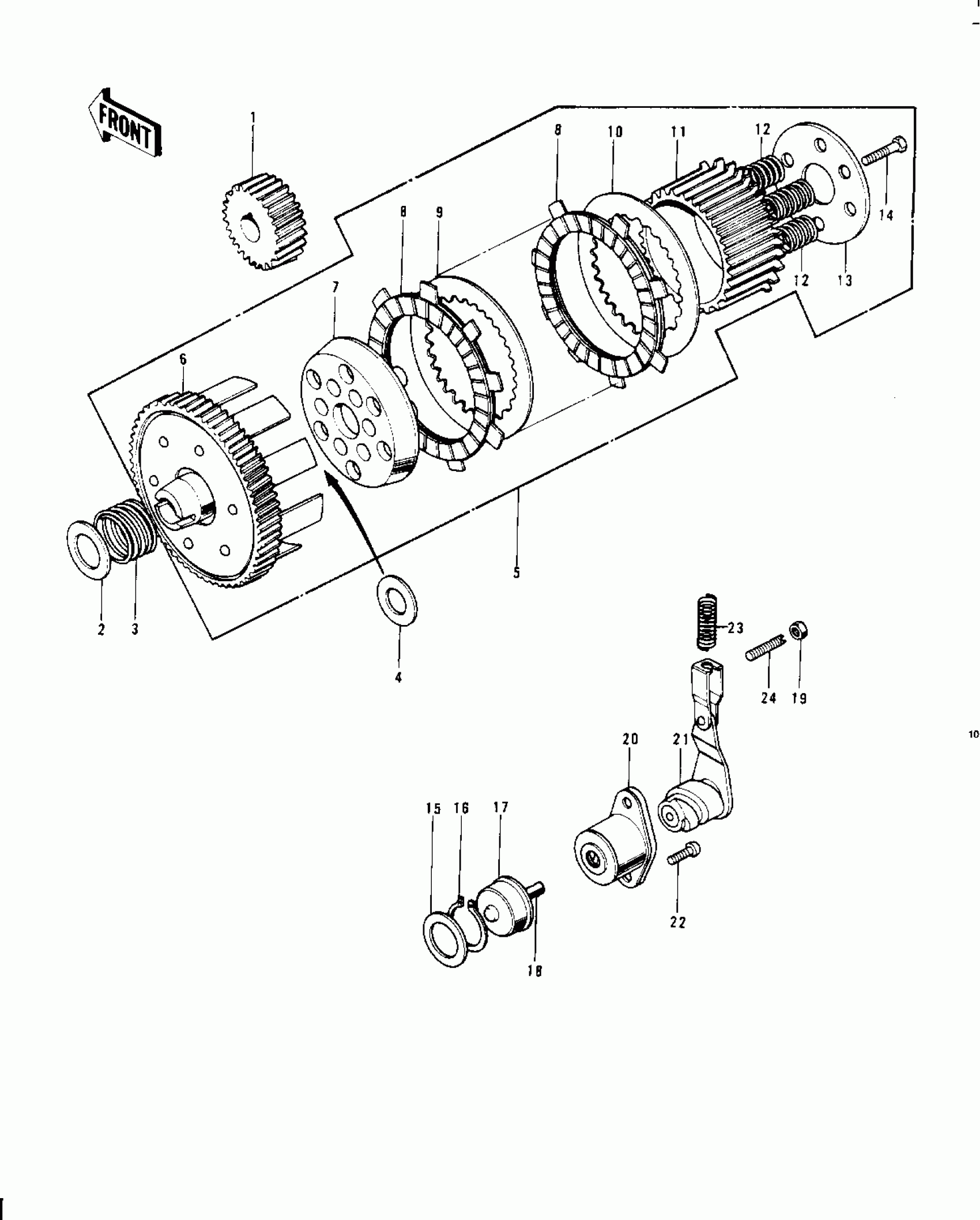

Find the part on the Clutch diagram for your 1976 Kawasaki KV100-A7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Kawasaki KV100-A7 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PINION,PRIMARY

13121-032

1
Out of stock

2

WASHER,25.5X36X1

92022-057

1
Out of stock

3

SPRING,CLUTCH DAMPER

92081-015

1
Out of stock

4

WASHER,16.5X27X1.4

92022-054

1
Out of stock

5

CLUTCH-ASSY

13081-028

1
Out of stock

6

HOUSING-COMP-CLUTCH

13095-022

1
Out of stock

7

WHEEL-CLUTCH

13086-1002

1
Out of stock

8

PLATE-FRICTION

13088-1103

1
Out of stock

8

PLATE-FRICTION

13088-1103

1
Out of stock

9

PLATE-CLUTCH,STEEL

13089-1009

1
Out of stock

10

PLATE CLUTCH OUTER

13090-004

1
Out of stock

11

HUB-CLUTCH

13087-1011

1
Out of stock

12

SPRING,CLUTCH

92081-012

1
Out of stock

13

HOLDER,CLUTCH SPRING

13091-1115

1
Out of stock

14

BOLT SMALL

114G0812

1
Out of stock

15

WASHER,THRUST,16.5X21X0.8

92022-053

1
Out of stock

16

CIRCLIP-TYPE-C,16MM

480J1600

1
Out of stock

17

PUSHER-COMP-CLUTCH

13113-003

1
Out of stock

18

PIN DOWEL 7X10

610A0710

1
Out of stock

19

NUT 6MM

311B0600

1
Out of stock

20

OUTER CLUTCH RELEASE

13118-001

1
Out of stock

21

INNER CLUTCH RELEASE

13102-004

1
Out of stock

22

SCREW-PAN-CROS,6X16

220B0616

1
Out of stock

23

SPRING,CLUTCH RELEASE

92081-096

1
Out of stock

24

SCREW SLOTTED 6X28

291Z0628

1
Out of stock

24

SCREW SLOTTED 6X28

291Z0628

—
Out of stock
